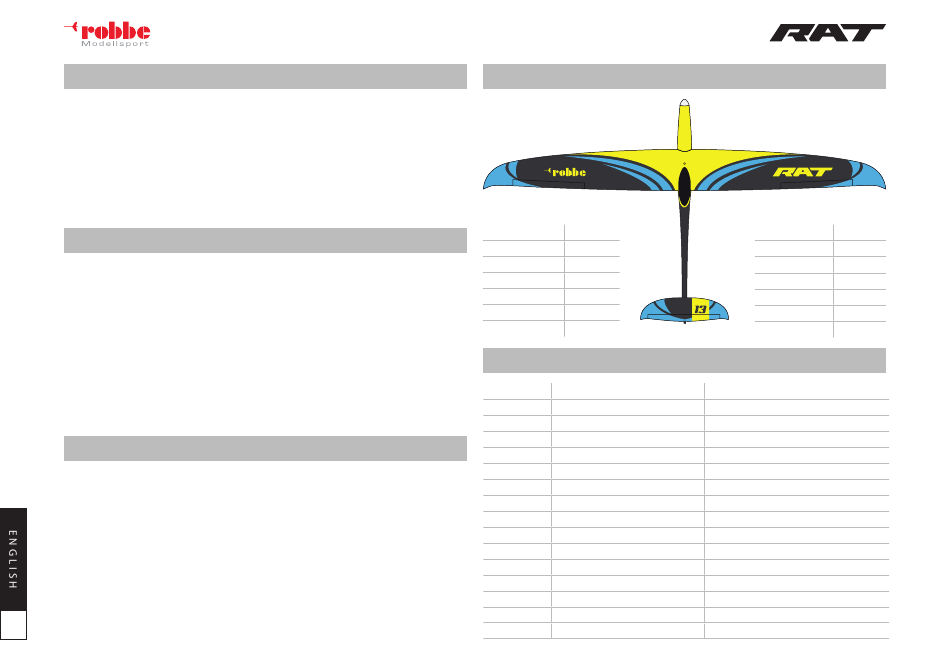

Congratulations on your purchase of the new RAT.
The RAT is a high-quality FRP pylon speed model, which we have developed for experienced and ambitious
model aircraft pilots.The construction of such a model and related detailed solutions are subject to a certain
taste dependency. Therefore, the solutions of this manual are to be understood as a suggestion. The PNP
version (Plug and Play) is already very much prefabricated. The ARF version (Almost Ready to Fly) requires
model-building experience and basic technical skills in construction.
In any case, there are different ways and approaches to get a very good flying model. Some alternatives are
therefore discussed during the construction description, but not shown in the picture.
PLEASE READ THE INSTRUCTION VERY CAREFULLY COMPLETE BEFORE STARTING!
F L I G H T I N S T R U C T I O N S
•
Before the first flight, observe the instructions in the „Safety Instructions" section.
•
To fly in the model, you should choose a day with as little wind as possible
•
A large, flat meadow without obstacles (trees, fences power lines etc.) is suitable for the first flights.
•
Carry out another functional test of the drive and remote control.
•
After assembling the model on the airfield, check once again that all model components such as wing,
tail units, wing mounts, engine, linkage, etc. are firmly seated.
•
For the hand start a helper should be present, who can transport the model with not too little thrust
into the air.
•
The start usually takes place against the wind
•
Do not stall the model near the ground
•
Do not initiate tight bends in the immediate vicinity of the ground.
•
Check the reactions of the model to the rudder deflections. If necessary, the rashes after landingto
increase or decrease the size accordingly.
•
The minimum flight speed must be at an adequate safety altitude.
•
Initiate the landing with sufficient speed
S A F E T Y I N S T R U C T I O N S F O R B A T T E R I E S
•
Do not immerse the battery in water or other liquids.
•
Do not heat, throw into fire or microwave.
•
Do not short-circuit or charge with reversed polarity
•
Do not expose, deform or throw the battery to pressure
•
Do not solder directly on the battery
•
Do not change or open the battery
•
Only charge the battery with suitable chargers, never connect it directly to a power supply unit.
•
Never charge or discharge the battery or charger on a flammable surface.
•
Never leave the battery unattended during charging or discharging processes.
•
Never charge or discharge the battery in direct sunlight or near heaters or fire.
•
Do not use the battery in places subject to high static discharge.
•
Keep the battery away from children
•
Do not associate leaked electrolyte with fire, as it is highly flammable and may ignite.
•
The electrolyte liquid should not get into the eyes, if it does, rinse immediately with plenty of clear
12
water and then see a doctor.
•
Observe the safety instructions of the battery manufacturer and the charger manufacturer.
Instructions and User Manual
P R E F A C E
S P E C I F I C A T I O N S
Span
1300 mm
Length
730 mm
Weight (dry)
420 g
Flying weight
1050 g
Wing Area
16,8 dm²
Airfoil
MH-43
C.G.
47 - 52 mm
B O X C O N T E N T / N E E D E D A C C E S S O R I E S
ARF
Motor
not included
ESC
not included
Folding Prop
not included
Spinner
not included
Battery
not included
Servo ELE
not included
Servo RUD
/
Servo AILE
not included
Servo FLAP
/
Servo cable
3x 25cm, 2x 15cm (JR) not included
MULTIlock
/
MPX plugs
/
UHU Por, Adhesives, Activator(not included)
Adhesives
TX
min. 4 Channels (not included)
RX
min. 4 Channels (not included)
Elevator
ja
Rudder
nein
Ailerons
ja
Flaps
nein
Flaps
nein
Motor
ja
Landing Gear
nein
PNP
Robbe ro-Power X36-1000 #5805 (built-in)
not included (RoControl 6-60 #8711)
Rasa CFK 9x7" (included)
Alu Turbo Spinner 38mm (included)
not included (ro-Power 4S 2200mAh)
1x Robbe FS-166 MG #9105 (built-in)
/
2x Robbe FS-166 MG #9105 (built-in)
/
2x 15cm (JR)
/
/
