Connecting The Subwoofer; Master And Slave Mode; Connecting A Single Subwoofer - Dynaudio SUB 300 Bedienungsanleitung

LFE/SUB Out
1.
Master
Input Preset
2.
Settings
Function
Slave
Processed OUT
INPUT
To Slave
Dynaudio SUB 300/500

Connecting the subwoofer

Before making any connections to the subwoofer we strongly recommend that
the SUB 300/500 is disconnected from the mains outlet.
Only switch the subwoofer on (mains power switch to On) after all connections
and set up steps have been properly completed.
NOTICE
• The Dynaudio SUB 300/500 can be controlled by any source provided with a LFE
or preamplifier output. In the operating manual the expression "processor/receiver"
will be used for all these sources.
• In order to avoid interference and noise, we recommend you use quality, well
shielded cables.

Master and Slave mode

The subwoofer can operate in two different modes:
• Master or
• Slave.
If your system consists of multiple subwoofers, it is desirable that all subwoofers
operate with identical settings (LEVEL,
EXT).
Using the Master/Slave feature of Dynaudio subwoofers this is easily achieved: The
Master subwoofer (connected directly to the subwoofer output of the amplifier or
receiver) will control all Slave subwoofers (connected to the Master subwoofer). Thus,
using a single remote control, all subwoofers in the system will follow all settings from
the Master subwoofer. Note that in Slave mode, only the On/Off and
Auto/Manual selections are available.

Connecting a single subwoofer

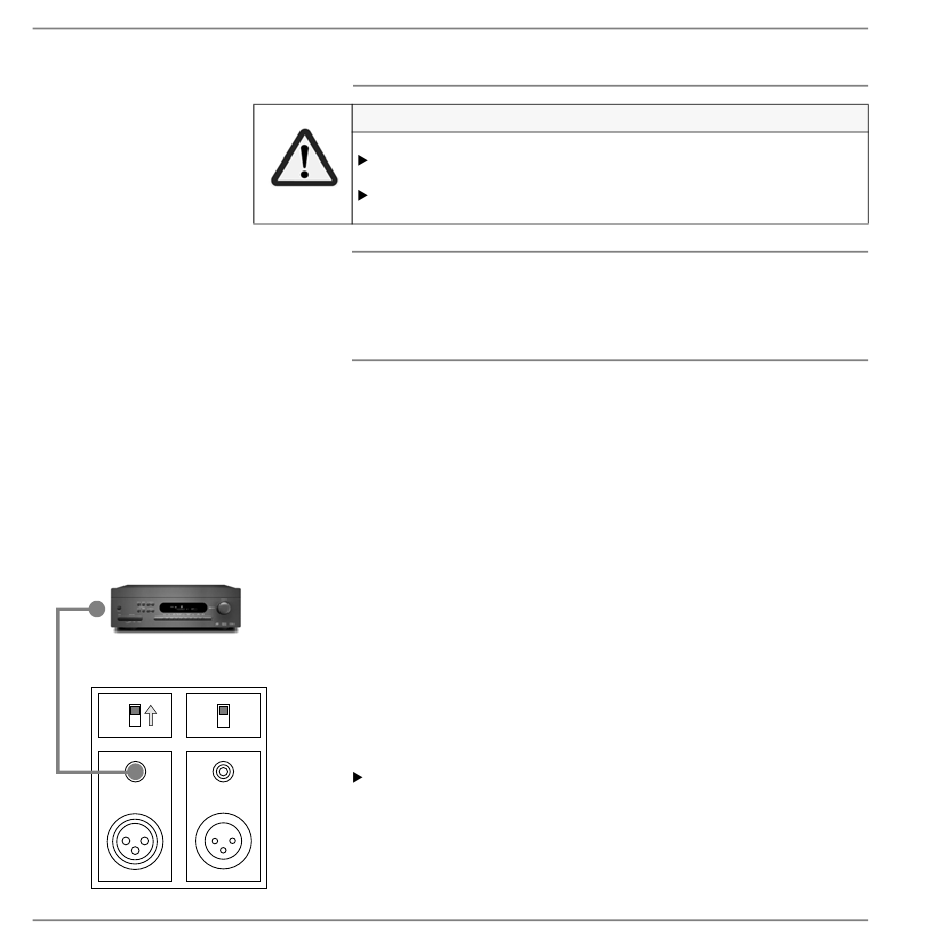

1. From the processor or receiver's low-level (not a speaker output) subwoofer
output (often marked as "subwoofer out", "Sub out" or "LFE"), connect a mono
Store
RCA-to-RCA or XLR-to-XLR cable to the subwoofer's
about XLR connections refer to "Connecting using the XLR sockets" on page 8).
Protect
2. Set the subwoofer's
you will be able to change the settings with the remote control.
After all connections are made, connect the supplied mains lead to the
subwoofer's IEC power socket and a mains outlet.
CAUTION
DAMAGE OF DEVICE DUE TO IMPROPER CONNECTION!
CROSSOVER
Input Function switch to the
Before Operation
FREQUENCY, PHASE and
INPUT (for information
Master position. In this position
