Controls and connections

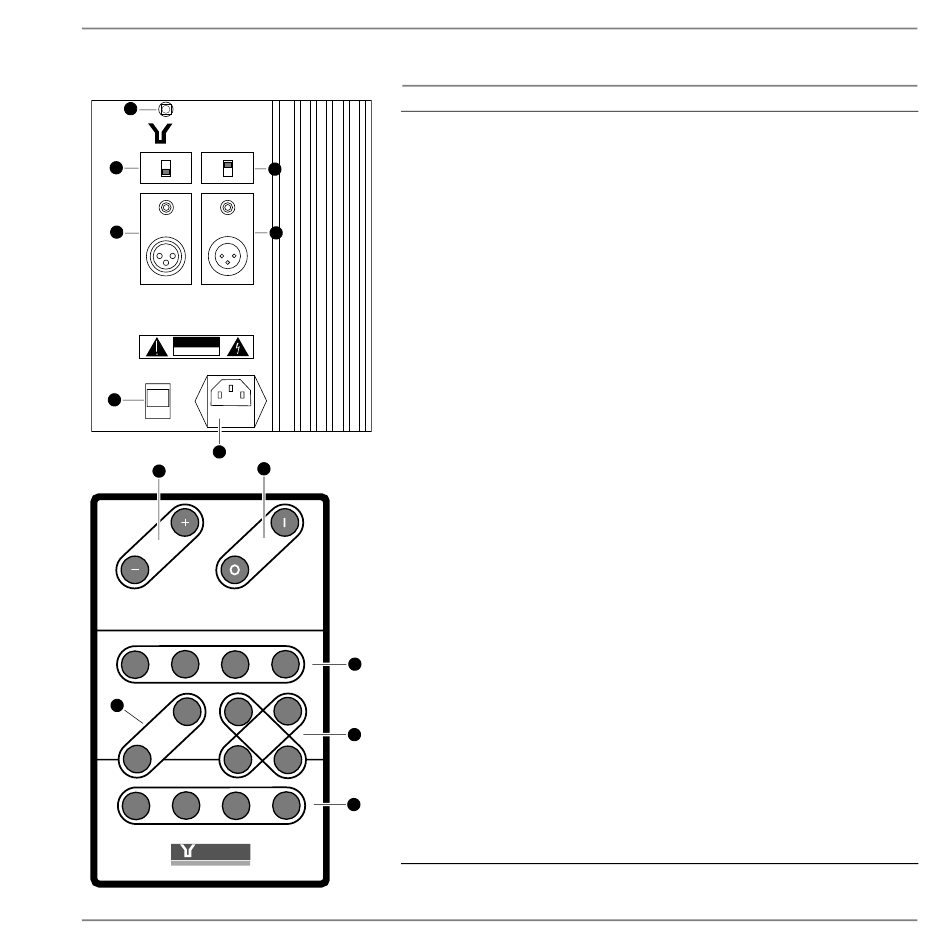

Subwoofer back panel
1 Remote Eye
Infrared receiver.
3
2 Input Function
Subwoofer operation mode: Master or Slave
• Master: setting if just one subwoofer is used or for first subwoofer if system
5
consists of multiple subwoofers.
• Slave: setting for second and all following subwoofers.
In Slave mode just the remote control POWER functions are available.
3 Preset Settings
Preset mode selector:
• Store: position when saving presets.
• Protect: position to protect presets from overwriting.
4 INPUT
Input for LFE or full bandwidth signal from processor/receiver.
Connector types: Cinch (top), XLR (below).
5 Processed OUT To Slave
Output to next subwoofer if installed: Cinch (top), XLR (below).
6 POWER
Main power switch to switch the subwoofer manually on (On) and off. When
switched off, the subwoofer can not be switched on by the remote control.
7 AC IN
Mains power input.
Remote Control
DSC 1 8 LEVEL
Subwoofer volume level.
10
9 POWER
FLAT
Switching the subwoofer on/off manually.
10 CROSSOVER FREQUENCY Hz
o
90
Cross-over frequency setting: 60 Hz, 80 Hz, 100 Hz, FLAT.
11
11 PHASE
o
180
Phase setting: phase can be set to 0°, 90°, 180° or 270°.
12 PRESET
12
D
Up to four settings can be stored and recalled on demand.
13 EXT
Extension of bass level (EXT = Extended).
Dynaudio SUB 300/500
