It is absolutely necessary that you remove the test magnet
after the test from the instrument housing.

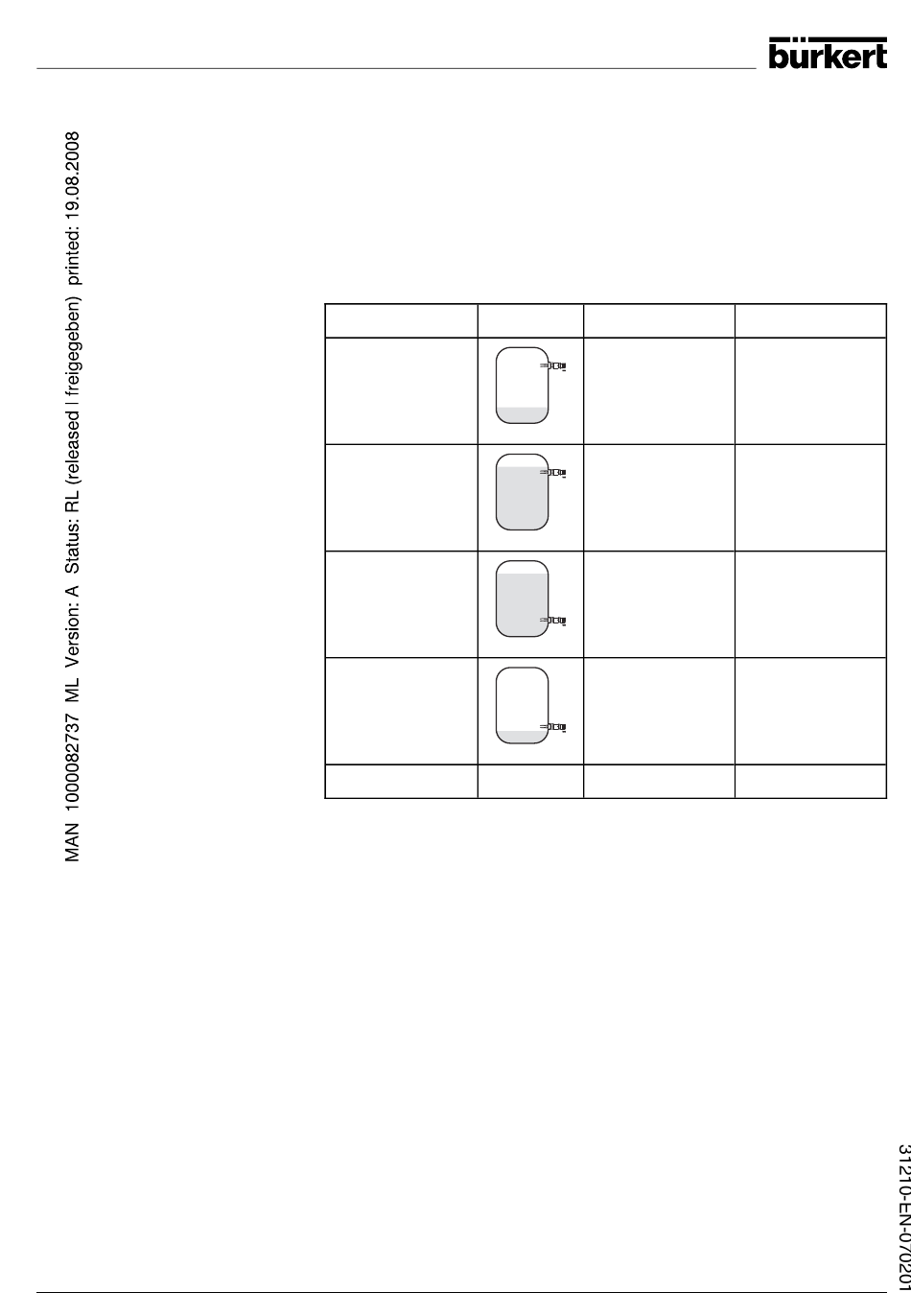

6.3 Function chart

The following chart provides an overview of the switching
conditions depending on the adjusted mode and level.
Level
Mode max.
Mode max.
Mode min.
Mode min.
Failure
LEVEL SWITCH 8110 - Tuning fork level switch
Switching status
Switch closed
Switch open
Switch closed
Switch open
any Switch open
Control lamp
Green
red
Green
red
flashes red
