6 Setup

6.1 Indication of the switching status

The switching status of the electronics can be checked on the
upper part of the housing.

6.2 Function test

LEVEL SWITCH 8110 has an integrated test switch which can
be activated magnetically. Proceed as follows to test the
instrument:
à
Hold the test magnet (accessory) to the magnet symbol on
the instrument housing

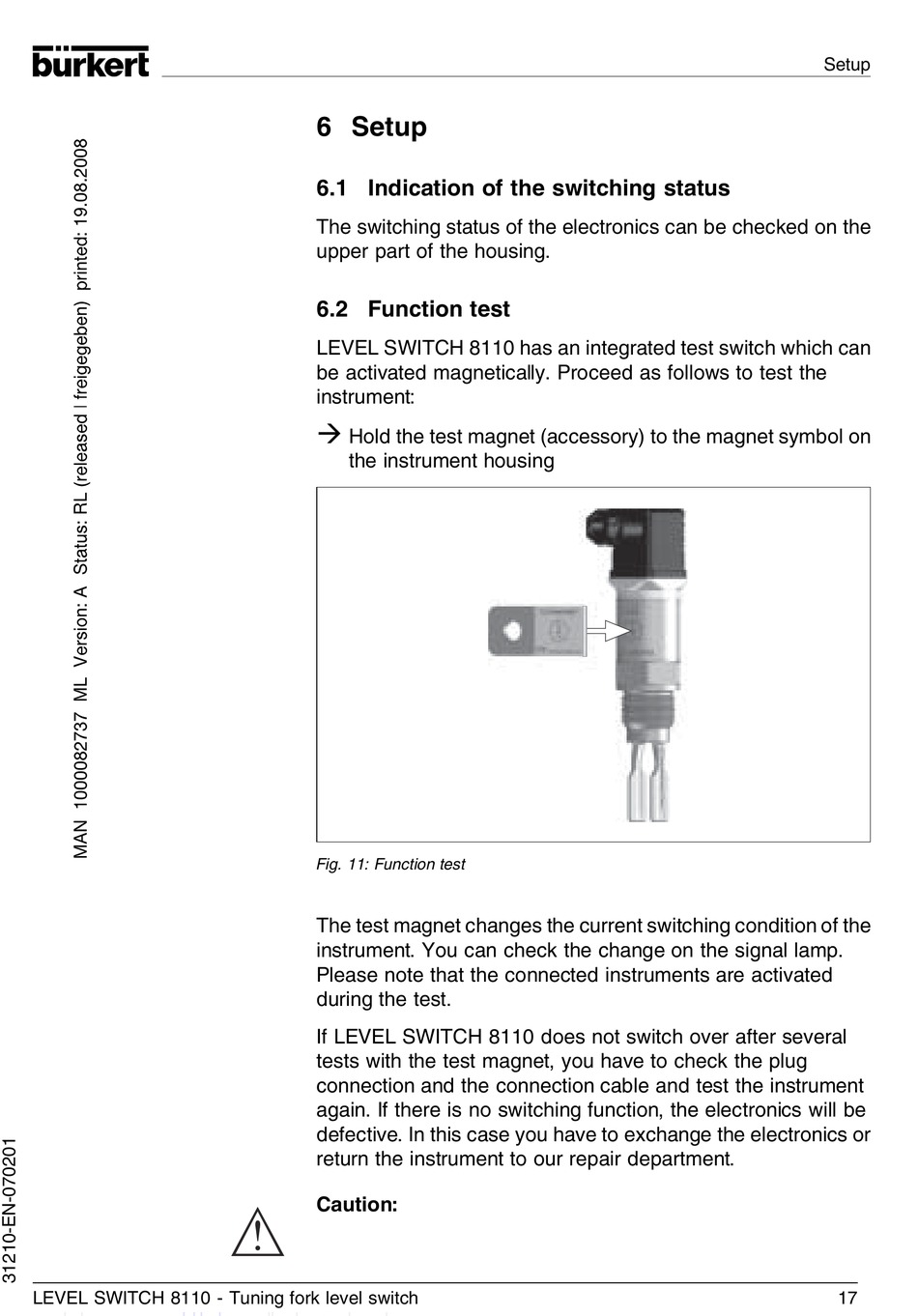

Fig. 11: Function test
The test magnet changes the current switching condition of the
instrument. You can check the change on the signal lamp.
Please note that the connected instruments are activated
during the test.
If LEVEL SWITCH 8110 does not switch over after several
tests with the test magnet, you have to check the plug
connection and the connection cable and test the instrument
again. If there is no switching function, the electronics will be
defective. In this case you have to exchange the electronics or
return the instrument to our repair department.
Caution:
