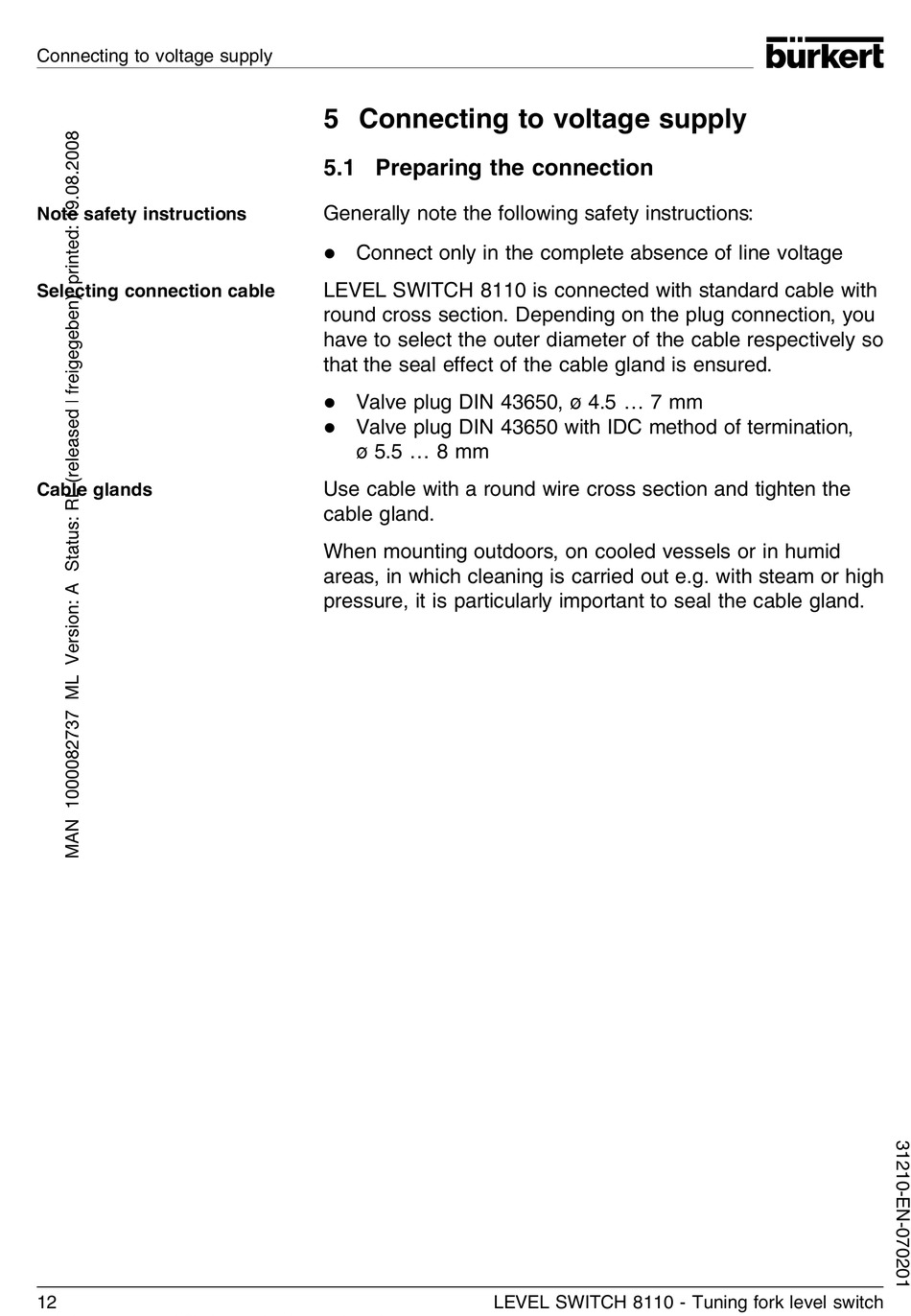

Connecting to voltage supply

Note safety instructions
Selecting connection cable
Cable glands
12
5 Connecting to voltage supply

5.1 Preparing the connection

Generally note the following safety instructions:
Connect only in the complete absence of line voltage
l
LEVEL SWITCH 8110 is connected with standard cable with
round cross section. Depending on the plug connection, you
have to select the outer diameter of the cable respectively so
that the seal effect of the cable gland is ensured.
Valve plug DIN 43650, ø 4.5 ... 7 mm
l
Valve plug DIN 43650 with IDC method of termination,
l
ø 5.5 ... 8 mm
Use cable with a round wire cross section and tighten the
cable gland.
When mounting outdoors, on cooled vessels or in humid
areas, in which cleaning is carried out e.g. with steam or high
pressure, it is particularly important to seal the cable gland.
LEVEL SWITCH 8110 - Tuning fork level switch
