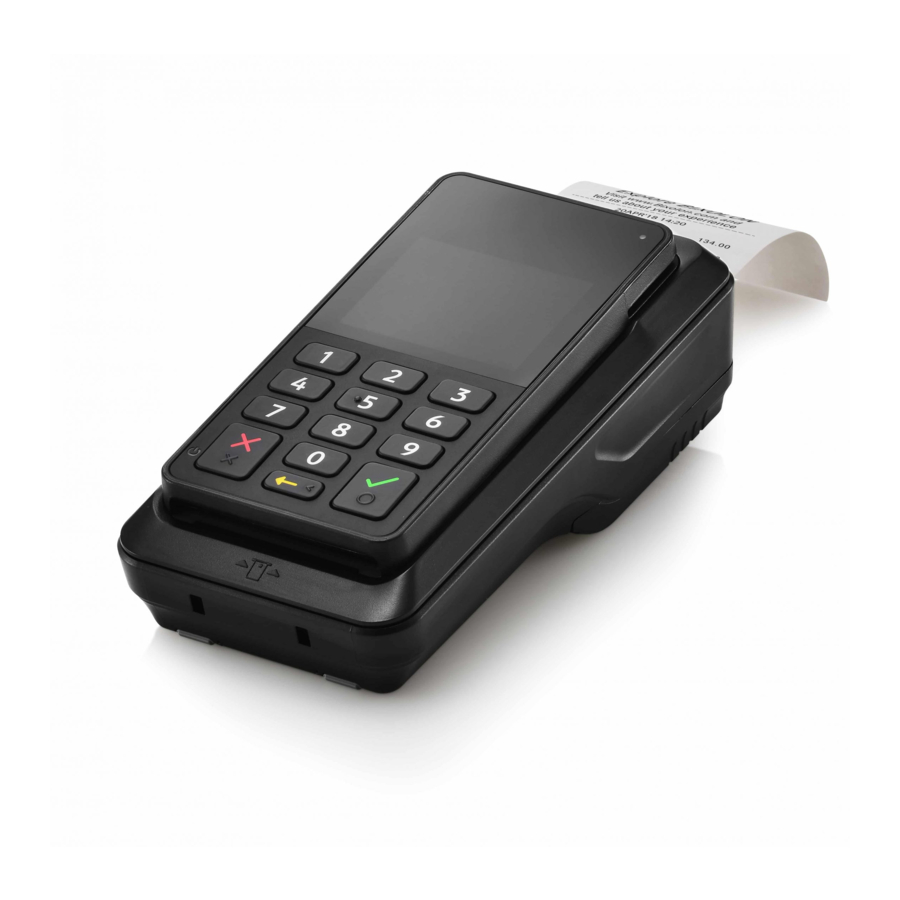

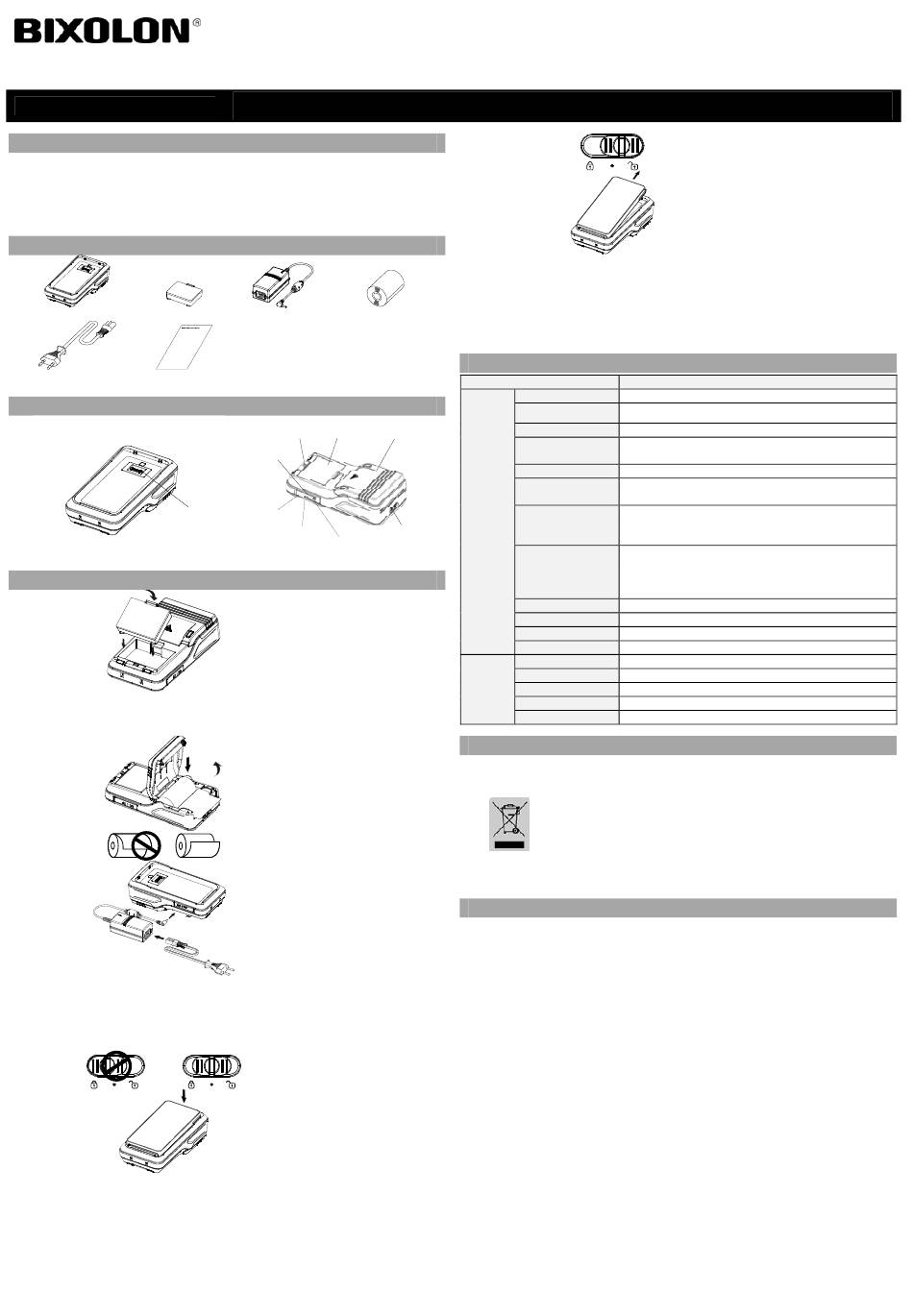

BIXOLON SPP-A200 Installationsanleitung

KN09-00058A (Rev.1.0)
◈ Information
This installation guide contains quick information required for the product
installation. Please visit our website for full instructions.
We at BIXOLON maintain ongoing efforts to enhance and upgrade the
functions and quality of all our products. In following, product specifications
and/or user manual content may be changed without prior notice.
◈ Content Confirmation
SPP-A200 Battery
Power Cord Installation Guide
◈ Product Part Names
Battery connector
For PED
◈ Installation and Charging
Battery
Installation
※ Note
As the battery is not charged at the time of purchase, charge the
battery prior to product use. (Use the
Paper
Installation
Battery
Charging
※ Note
The printer may incur serious damage If the AC adapter provided
by BIXOLON Co., Ltd. is not used. BIXOLON Co., Ltd. is not
legally liable for any such damage. (The voltage and electrical
current specifications of the printer and AC adapter must match.)
PED
Installation
Printer Installation Guide
AC Adapter Paper Roll
Cover Terminal Battery Cover Paper
Interface cap
Printer
Charging LED
Cable Connector Open Button
For PED
Power Connector
1. Insert the battery on the rear
side of the printer, aligning the
battery hook properly.
2. Push the battery into the slot
until a snapping sound is heard.
)
AC Adapter
1. Open the cover and place the
paper in the correct direction.
2. Pull out the paper and close the
cover.
3. Tear off any unnecessary part
of the paper by pulling it up.
1) Turn off the printer power.
2) Connect the power cord to the
AC adapter, and the connect AC
power.
3) Open the external interface cap
in the direction of arrow.
4) Connect the AC adapter to the
power connector.
1. Make sure that the button is
located in the middle and attach
the M020 as shown in the
image.
2. After attaching the M020, move
the switch to the lock position.
※ Note
If you try to attach the M020 when
the switch is in the lock position,
it may damage the printer.
Mobile Receipt Printer SPP-A200
PED
Uninstallat
ion
When connected/inserted into the printer - Press the red X
Power
(Power Key) on the M020 to activate the Printer and Payment
On/Off
solution
Battery The battery level of the printer will be displayed on the M020
Level device
◈ Product Specifications
Item
Printing Method Thermal printing
Printing Speed 100 mm/sec
Resolution 203 DPI
Paper Supply
Easy paper loading
Mode
Character Size Font A: 12 × 24
Characters Per
Font A: 32
Line
English: 95
Printing
Character Set Expanded Graphics: 128 × 33 pages
International: 32
1 Dimension: UPC A, UPC E, CODE 39, CODE 93,
Code 128, EAN 8, EAN 13, ITF, Codabar
Barcode
2 Dimension: PDF417, DATAMATRIX, MAXI,
QR Code, GS1 DataBar, Aztec
Emulation BXL/POS
Sensor Paper End Sensor
Cutter Type Tear-Bar
Language User language supported
Paper Form Receipt
Paper Type Thermal paper
Paper Diameter Max. ø40 mm (1.57")
Width 57.5 ± 0.5 mm (2.26" ± 0.2")
Thickness 0.07 ± 0.003 mm
◈ WEEE
This marking shown on the product or its literature, indicates that it should
not be disposed of with other household wastes at the end of its working
life. To prevent possible harm to the environment or people from
uncontrolled waste disposal, please separate this from other types of
wastes and recycle it responsibly to promote the sustainable reuse of
material resources. Household users should contact either the retailer
where they purchased this product, or their local government office, for
details of where and how they can take this item for environmentally safe
recycling. Business users should contact their supplier and check the
terms and conditions of the purchase contract. This product should not be
mixed with other commercial wastes for disposal.
◈ Battery Safety Precautions
1. If the battery is not charged after the charging time, stop charging and contact the seller.
2. Store and use the battery where it will not come into contact with liquid (water, salt water,
etc.). There may be a risk of overheating, rupturing or igniting.
3. Avoid exposing the battery to high temperatures over 50 ℃ and do not store or use it in
a place with high temperature and humidity. There may be a risk of overheating,
rupturing or igniting. In addition, it may reduce the performance and life of the battery.
There is a risk of explosion, especially when the battery is placed by a fire or stored near
a heating device (e.g., heater, etc.).
4. Be sure to only use an adapter or charger approved by us to charge the battery. Use of
any other adapter or charger may reduce battery performance and life, or cause a risk of
overheating, rupturing or igniting.
5. Avoid causing any strong impact to the battery or throwing it. The protective device
inside the battery may be damaged, which may reduce the battery performance and life,
or there may be a risk of overheating, rupturing or igniting.
6. Do not disassemble or modify the battery. The battery contains safety and protection
devices to prevent danger. It may reduce battery performance and life due to damage, or
there may be a risk of overheating, rupturing or igniting.
Move the button to unlock position
to detach M020.
Description
Font B: 9 × 17 Font C: 9 × 24
Font B/C: 42
