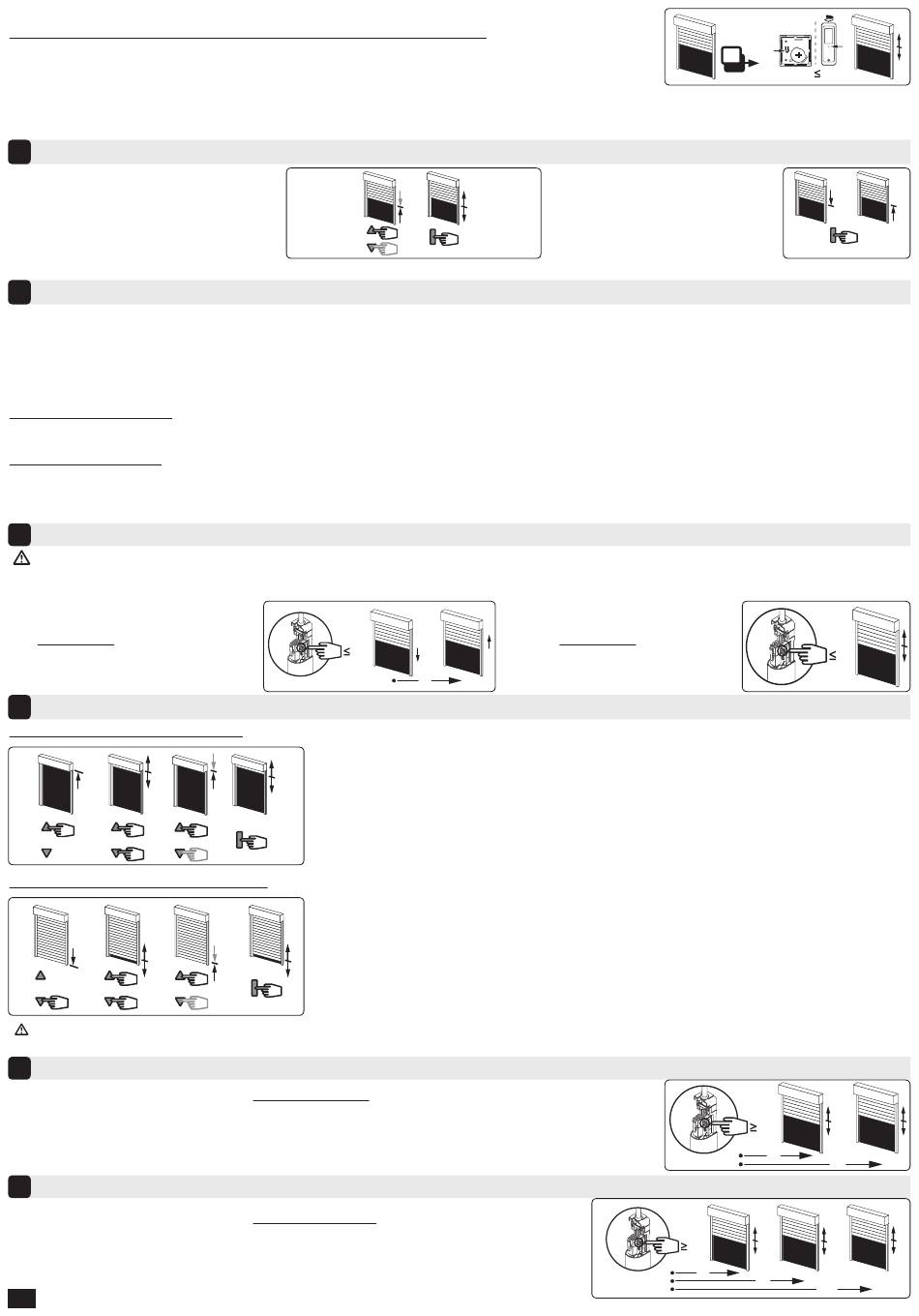

simu AUTOSUN Bedienungsanleitung Seite 8

9.2 - Validate the operation from the new transmitter you want to programm:
- Press the "PROG" key of the transmitter for about 1 second. The motor will run for 0.5 second in one direction
and then in the other.
- For group controls, repeat operations 9.1 and 9.2 for each motor in the group.
- For main controls, repeat operations 9.1 and 9.2 for each motor in the installation.
- To delete an transmitter from the memory of a motor, perform operations 9.1 with a programmed transmitter, then perform the operation 9.2 with the transmitter to be deleted.
Recording / controling / deleting intermediate position
10
Recording:
- Position the motor on the wanted position.
- Press 5 seconds on the "stop" key. The motor
will run for 0.5 second in one direction and
then in the other.
Deleting : Position the motor on the intermediate position. Press 5 seconds on the Stop key, the intermediate position is deleted.
T3.5 DC EHz motor functions
11
11.1 - With a well charged battery, the possible commands are: Up, stop and down. It is also possible to set an intermediate position (see §10).
11.2 - Frost detection function: The motor stops if the shutter is jammed by ice during opening.
11.3 - Detection of obstructions function: Jamming of the shutter due to the presence of an obstruction when closing the shutter causes the motor to stop
and then run in the reverse direction.
11.4 - Battery protection against excessive discharge: Before each lifting or lowering of the shutter, the motor checks the voltage of the battery.
If the voltage is below 11.5V: The motor will pause at the beginning of each command to lift the shutter. The shutter can only be closed by pressing several times
on the «down» button.
If the voltage is below 10V: The receiver won't accept any commands.
In these two cases, use the emergency charger in order to perform a quick battery recharge. Operation of the motor will return to normal only if
the battery voltage goes above 12V.
Radio activation / deactivation
12
- It is possible to deactivate the radio function so as not to prematurely drain the battery during periods when the solar panel is not able to
operate normally (packaging of the roller shutter, transport, storage...). After installation of the roller shutter, normal operation will be res-
tored by reactivating the radio function.
Deactivation :
- Press the "PROG" key of the battery pack
for 1 second max. The motor rotates brie-
fly in one direction and then 1 second later
in the other direction.
Re-adjustement of end limits
13
13.1 - Re-adjustement of UP end limits (assemblies B and D only)
1 2
5s
13.2 - Re-adjustement of DOWN end limits (assemblies C and D only)
1 2
5s
- The re-adjustment of end limits is automatic every 56 cycles (during 3 cycles) for the following installation : Up end limit, mounting A and C,
Down end limit, mounting A and B.
Cancelling all the programmed transmitters
14
- Press the "PROG" key of the battery pack more than 7 seconds. The motor will run 2 times for in one direction and
then in the other. The operation is completed.
The motor doesn't have any transmitter programmed in its memory any more, but the settings for the
direction of rotation and end limits are retained. Perform operation 7.1c then operation 8 to programm
a new individual control.
Cancelling programming
15
- Press the "PROG" key of the battery pack more than 12 seconds. The motor will run 3 times in one
direction and then in the other. The operation is completed.
The motor returns to its original set up, with no transmitter programmed in the memory.
Redo the complete programming procedure for the motor (direction of rotation, end limits
and control points).
4 / 4
1s
4
3
1- Position the motor on the UP end limit previously set in §7.3 with the UP key.
2- Press simultaneously for 5 seconds the UP and DOWN keys, The motor will run for 0.5 second in one
direction and then in the other direction.
3- Adjust the new position with the UP and DOWN keys.
2s
4- Validate the new position by pressing 2 seconds the STOP key. The motor will run for 0.5 second in one
direction and then in the other. The new end limits setting is memorized.
3 4
1- Position the motor on the DOWN end limit previously set in §7.3 with the DOWN key.
2- Press simultaneously for 5 secondes the UP and DOWN keys, The motor will run for 0.5 second in one
direction and then in the other direction.
3- Adjust the new position with the UP and DOWN keys.
2s
4- Validate the new position by pressing 2 seconds the STOP key. The motor will run for 0.5 second in one
direction and then in the other. The new end limits setting is memorized.
Controling:
- Press on the "stop" key for 0.5 s. the
motor goes to the intermediate posi-
tion.
5s
Activation :
- Press the "PROG" key of the battery
pack for 1 second max. The motor will
run for 0.5 second in one direction and
then in the other.
1s
1s
PROG
0,5s
1s
7s
2s
5s
12s
2s
7s
12s
