Re:sound I - inceiling 80 Stereo

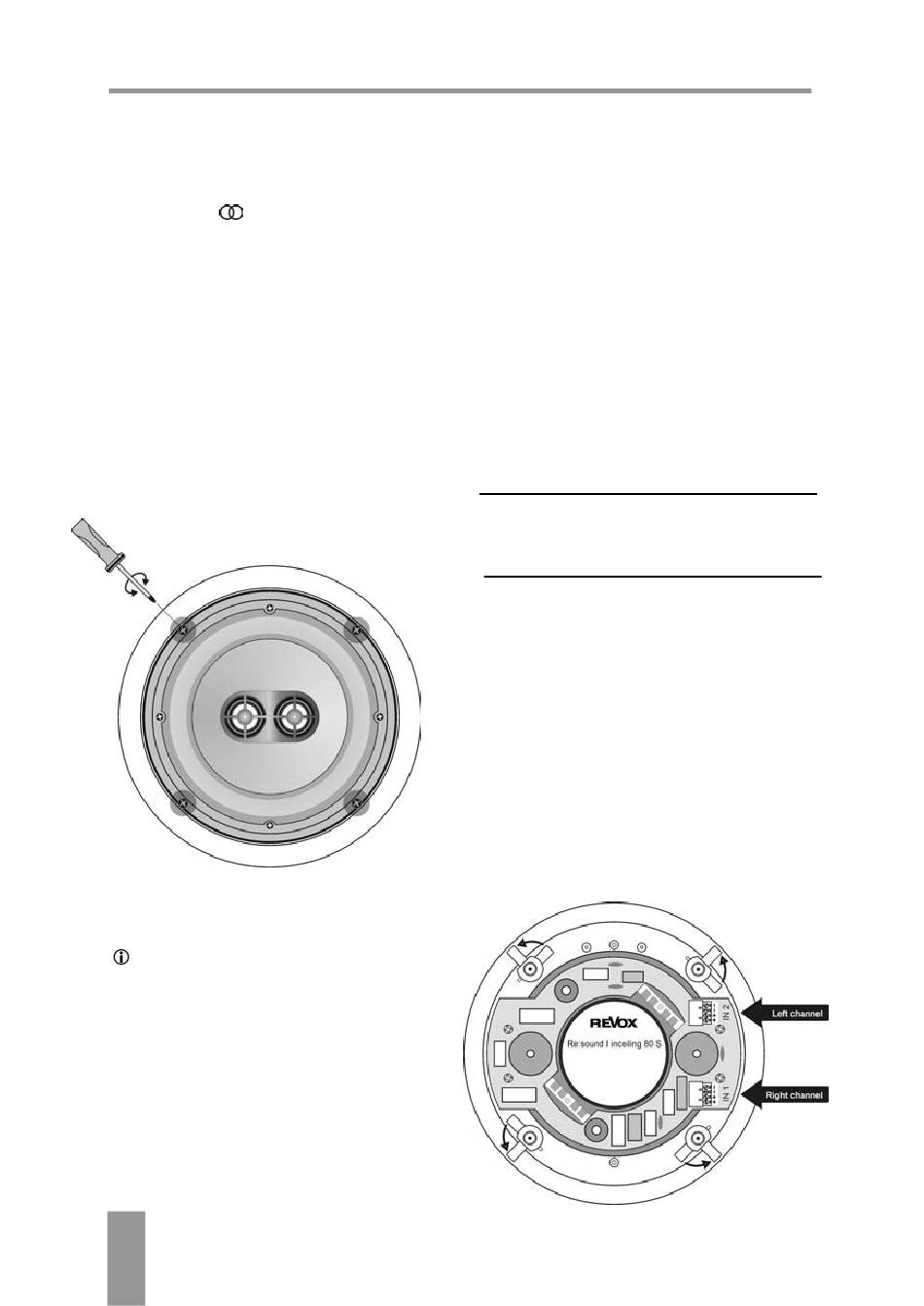

INSTALLATION - I
Info
The ICS80
has integrated
rotary tensioners for quick
installation. These rotary tensioners
are located on the rear of the
speaker and swivel out through
90° once the 4 marked screws
(see figure below) on the front of
the speaker are screwed in.
The power should be switched of
when installing the speaker.
Speaker polarity
If a channel (IN1 / IN2) is
connected with reversed
polarity, this results in a loss
of bass reproduction together
with an imprecise and
diffused sound picture.
23
NSTALLATION
Step 1
Connect the speaker cable (right
and left channel), with the
correct polarity, using the
pluggable screw connectors.
Step 2
Insert the screw connectors in the
corresponding sockets (IN1 +
IN2), which are located on the
crossover board on the back of the
speaker (see below).
Revox fitted speaker:
Don't forget the sound proofing
material.
Step 3
Insert the fitted speaker into the
opening and tighten the 4 rotary
tensioner screws a little, until the
speaker flange is held in position
at the sides. Under no circum-
stances should the speaker
flange be twisted.
Step 4
Place the speaker grille in position.
