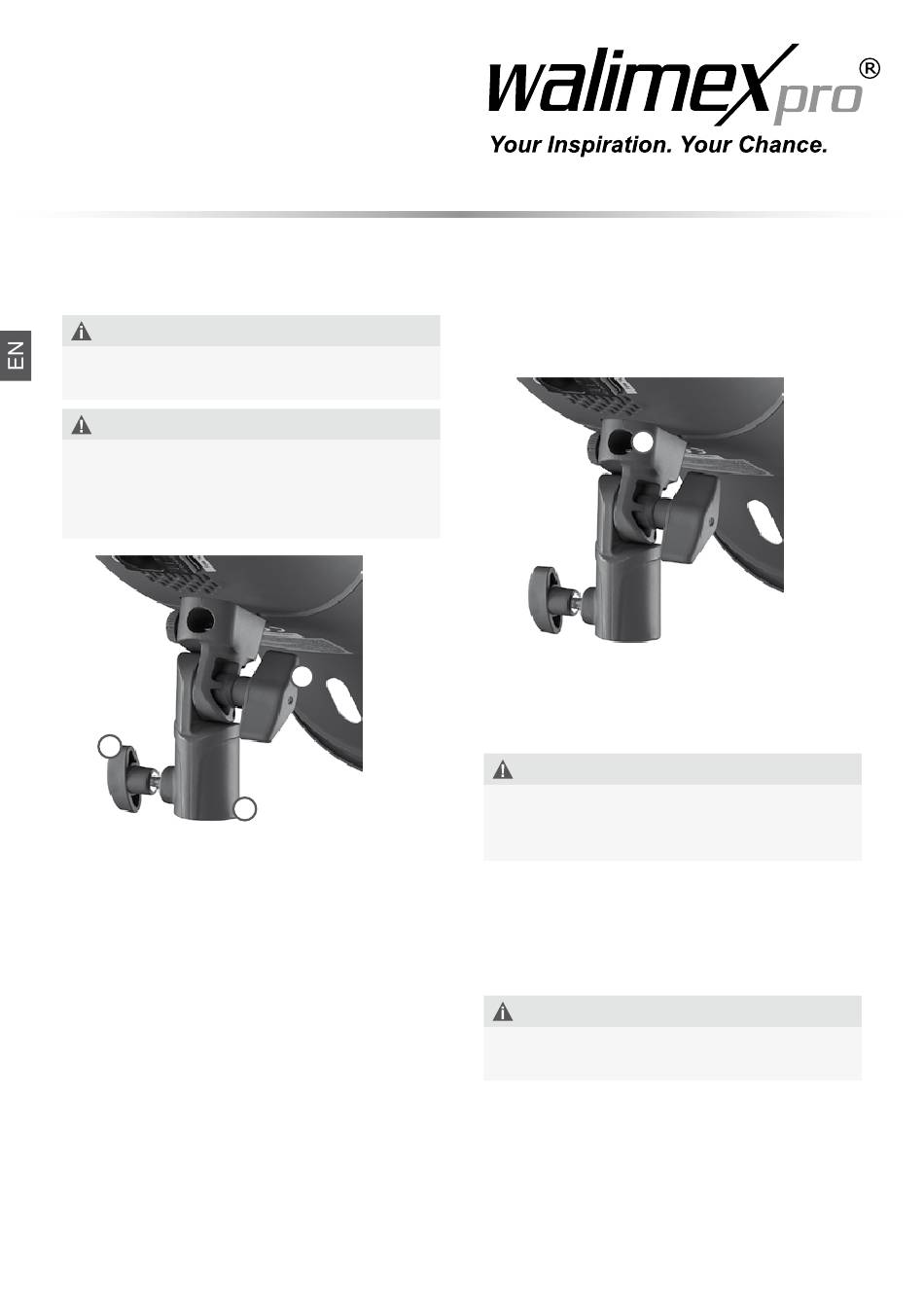

11. Mount on tripod (optional)

NOTE
Please note the user information of the
manufacturer.
CAUTION
Select a tripod of suitable weight and
dimensions. See Technical Specifications.
Make sure, that the tripod with the mounted
device has a tilt and skid resistant stand.
1
1 Fastening Screw
2 Locking Knurl tripod shot
3 Tripod Mount
1. Open locking knurl.
2. Mount the device on the tripod.
3. Tighten locking knurl.
4. Use locking screw for the correct
inclination angle.
40
2
3
12. Mount reflex umbrella (optional)
Just use reflex umbrellas with a rod diameter
of 8-10mm.
1
1 Umbrella Holder
1. Let the device cool down.
WARNING
Danger of burning on reflector, modeling
lamp and flash tube. Please cool down
approx. 30 minutes.
2. Open locking knurl.
3. Insert the rod of reflex umbrella through
the opening in the reflector into the fixture
as far as it will go.
4. Tighten locking knurl
NOTE
Don´t tighten the locking knurl too tight as
to avoid damages on the reflex umbrella.
