Gaming Headset "Walhalla 5.1 USB"
HM 5.1 USB GAME
Before you begin
Read through this installation manual! It contains important information
on problem solving.
Installation
1. Connect the USB plug of the headset to a USB port on your PC
2. The PC recognises new hardware and loads standard drivers from
the Windows CD, if required
3. Place the drive CD in your PC's drive
4. If installation does not start automatically, in Explorer or the desktop
double-click on your CD drive. Start the file "setup.exe" by double-
clicking on it. Follow the instructions on the screen
When installation is complete you need to restart your PC, since all
changes become effective only when the PC is rebooted.

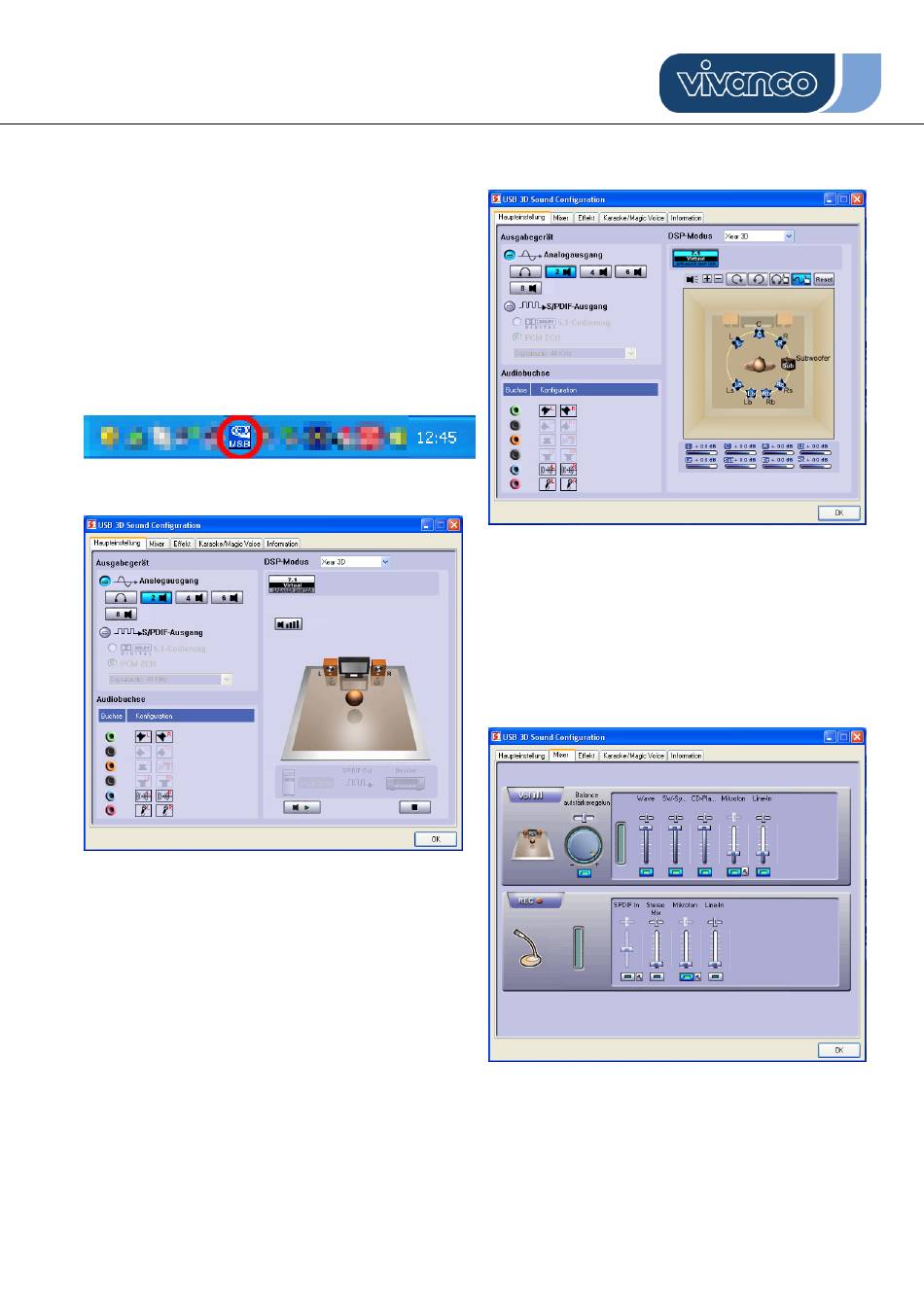

Software Functions
After installation of the software a corresponding symbol appears
(when the headset is connected and switched on) in the task bar:
Double-click on this symbol to create software settings. The following
window appears:
1 – Select of analog output mode
2 – Select digital (S/PDIF) output mode (only when using an S/PDIF
output; not supported by this headset)
3 – Connection instructions depending on selected output mode
4 – Select mode for the digital sound processor (Standard: Xear 3D)
5 – Switch for selecting surround mode
6 – Currently selected simulated loudspeaker setup
7 – Sound Test
Click on the switch for selecting the surround mode to change the
balance of the simulated loudspeakers in the room. The following
window appears:
1 – Increase volume
2 – Decrease volume
3 – Turn loudspeaker setup clockwise
4 – Turn loudspeaker setup anti-clockwise
5 – Turn loudspeaker manually
6 – Balance loudspeaker manually
7 – Reset settings
8 – Window for displaying and positioning loudspeakers
Other Software Functions
The "Mixer" slide allows more precise setting of the sound output and
recording:
1 – Balance
2 – Volume
3 – Mute
4 – Setting the individual input/output levels
5 – Displaying the "Microphone" input level
6 – Setting the "Microphone – Line In" recording balance
- 2 -
