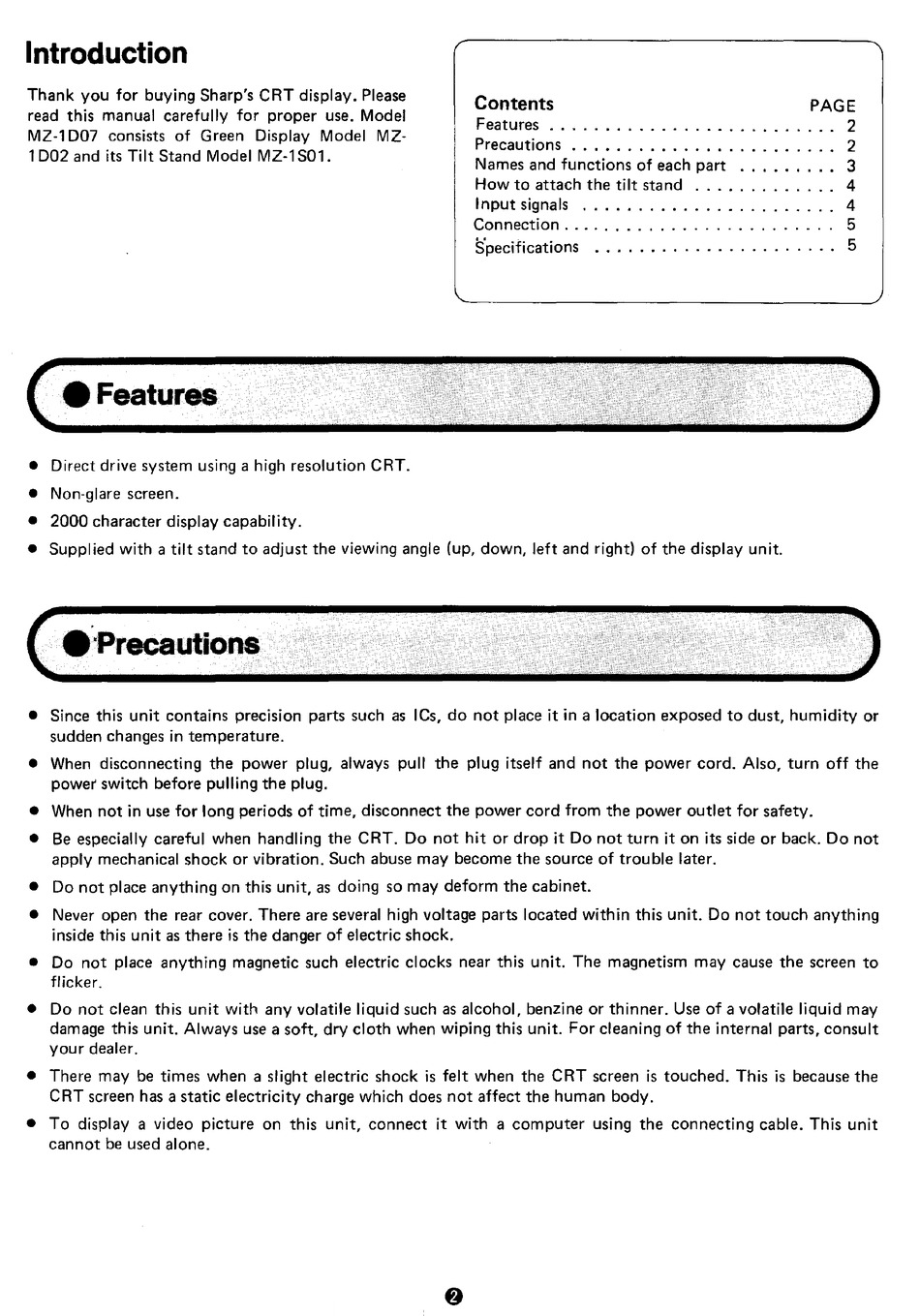

Introduction
Thank you for buying Sharp's CRT display. Please
read this manual carefully for proper use. Model
MZ-1 DOl consists of Green Display Model MZ-
1 D02 and its Tilt Stand Model MZ-1 S01.
( • Features
• Direct drive system using a high resolution CRT.
• Non·glare screen.
• 2000 character display capability.
Contents
P AG E
Features . . . . . . . . . . . . . . . . . . . . . . . . .. 2
Precautions . . . . . . . . . . . . . . . . . . . . . . .. 2
Names and functions of each part . . . . . . . . . 3
How to attach the tilt stand . . . . . . . . . . . . . 4
Input signals . . . . . . . . . . . . . . . . . . . . . . . 4
Connection. . . . . . . . . . . . . . . . . . . . . . . .. 5
S'pecifications . . . . . . . . . . . . . . . . . . . . . . 5
..
~
)
• Supplied with a tilt stand to adjust the viewing angle (up, down, left and right) of the display unit.
( e'Precautions
)
• Since this unit contains precision parts such as ICs, do not place it in a location exposed to dust, humidity or
sudden changes in temperature.
• When disconnecting the power plug, always pull the plug itself and not the power cord. Also, turn off the
power switch before pulling the plug.
• When not in use for long periods of time, disconnect the power cord from the power outlet for safety.
•
Be especially careful when handling the CRT. Do not hit or drop it Do not turn it on its side or back. Do not
apply mechanical shock or vibration. Such abuse may become the source of trouble later.
•
Do not place anything on this unit, as doing so may deform the cabinet.
•
Never open the rear cover. There are several high voltage parts located within this unit. Do not touch anything
inside this unit as there is the danger of electric shock.
•
Do not place anything magnetic such electric clocks near this unit. The magnetism may cause the screen to
flicker.
•
Do not clean this unit with any volatile liquid such as alcohol, benzine or thinner. Use of a volatile liquid may
damage this unit. Always use a soft, dry cloth when wiping this unit. For cleaning of the internal parts, consult
your dealer.
• There may be times when a slight electric shock is felt when the CRT screen is touched. This is because the
CRT screen has a static electricity charge which does not affect the human body.
• To display a video picture on this unit, connect it with a computer using the connecting cable. This unit
cannot be used alone.
