Safeline SL6+ Installationsanleitung Seite 2

Fig Fig
3.1 4.1
LED 1
LED 2
LED 3
Reset
EN: *Minimum signal strength
for using GSM interface.
DK: *Mindste signalstyrke for at
kunne benytte GSM-interface.
DE: *Mindestsignalstärke für die
Verwendung der GSM-Schnittstelle.
FR: *Puissance minimale du
signal avec l'interface GSM.
Fig
NL: * Minimumsignaalsterkte voor
5.1
gebruik GSM-interface.
NO: *Minste signalstyrke for
bruk av GSM-grensesnitt.
SafeLine SL6
FI: *Pienin signaalivoimakkuus
GSM-liitännän käyttämiseksi
SE: *Minsta signalstyrka för
användning av GSM-gränssnitt.
>> 1.5 m >> 1.5 m
>> 1.5 m
0,1m
2
[DOCSxxxx] SL6 Quick guide 201811 OMSLAG.indd 2
LED GSM SIGNAL
1 2 3 STRENGTH
= 100 %
= 85 %
= 70 %
= 55 %
= 30 %*
= 15 %
= 0 %

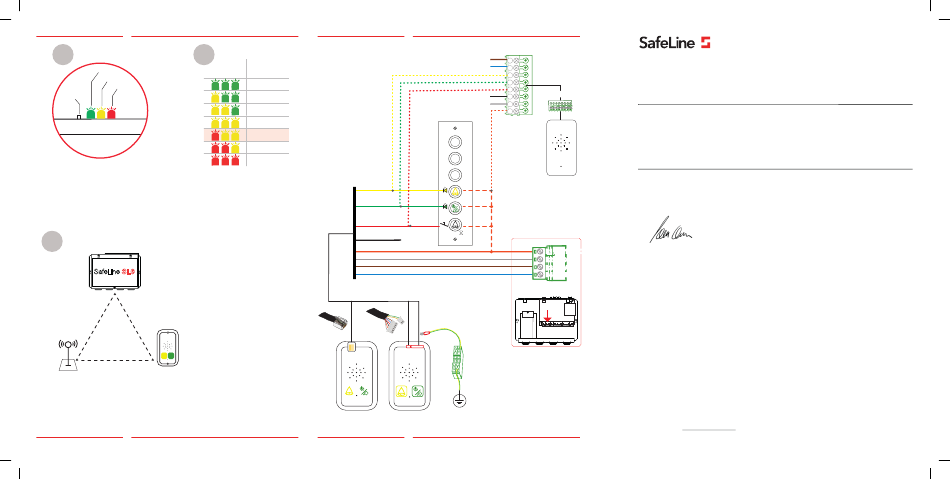

RJ45 / JST
Option 1
B3 bus A
1
B4 bus B
2
3
4
5
Screw terminal
Not in use
6
B2 bus GND
7
B1 bus 12V 8
MAX 630 kg
1
2
3
- Option 3
( )
-
( )
10 s
Not in use
B1 Bus 12VDC
B2 GND
B3 bus A
B4 bus B
B
Only when using product/
art.no.: *SLB3-SM-PIC-L
Option 2
EU Declaration of Conformity SL6+ V2.10
For RED 2014/53/EU, an " EU-Type Examination procedure" has been applied and is certified by notified body:
TÜV AUSTRIA SERVICES GMBH, Notified Body Nr: 0408, Cetrificate Nr:TÜV-A-INE/EMV-KR/18/16
with the supporting assessments:
Standards applied Article of Directive 2014/53/EU
EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013 3.1 (a): Health and safety of the user
EN 62311:2008
EN 301 489-1 v2.1.1 + EN 301 489-52v1.1.0 Draft 3.1 (B): Electromagnetic Compatibility
EN 301 489-17 V3.1.1
EN 301 511 v12.5.1 3.2: Effective use of spectrum allocated
EN 301 908-1v11.1.1 /-2v11.1.1 /-13v11.1.1
EN 300 328 V2.1.1
Firmware used during assessment
Triorail TRM-5: Rev. 03.016 / Rev. 03.017 / Rev. 03.019 / Rev. 03.025
GL865-Dual V3: 16.00.152 / 16.01.150 / 16.01.153
LE910-EU V2: 20.00.402
SafeLine SL6 4.45
Tyresö, 2018-08-25
Johan Öhrn
Technical Manager, SafeLine Group
