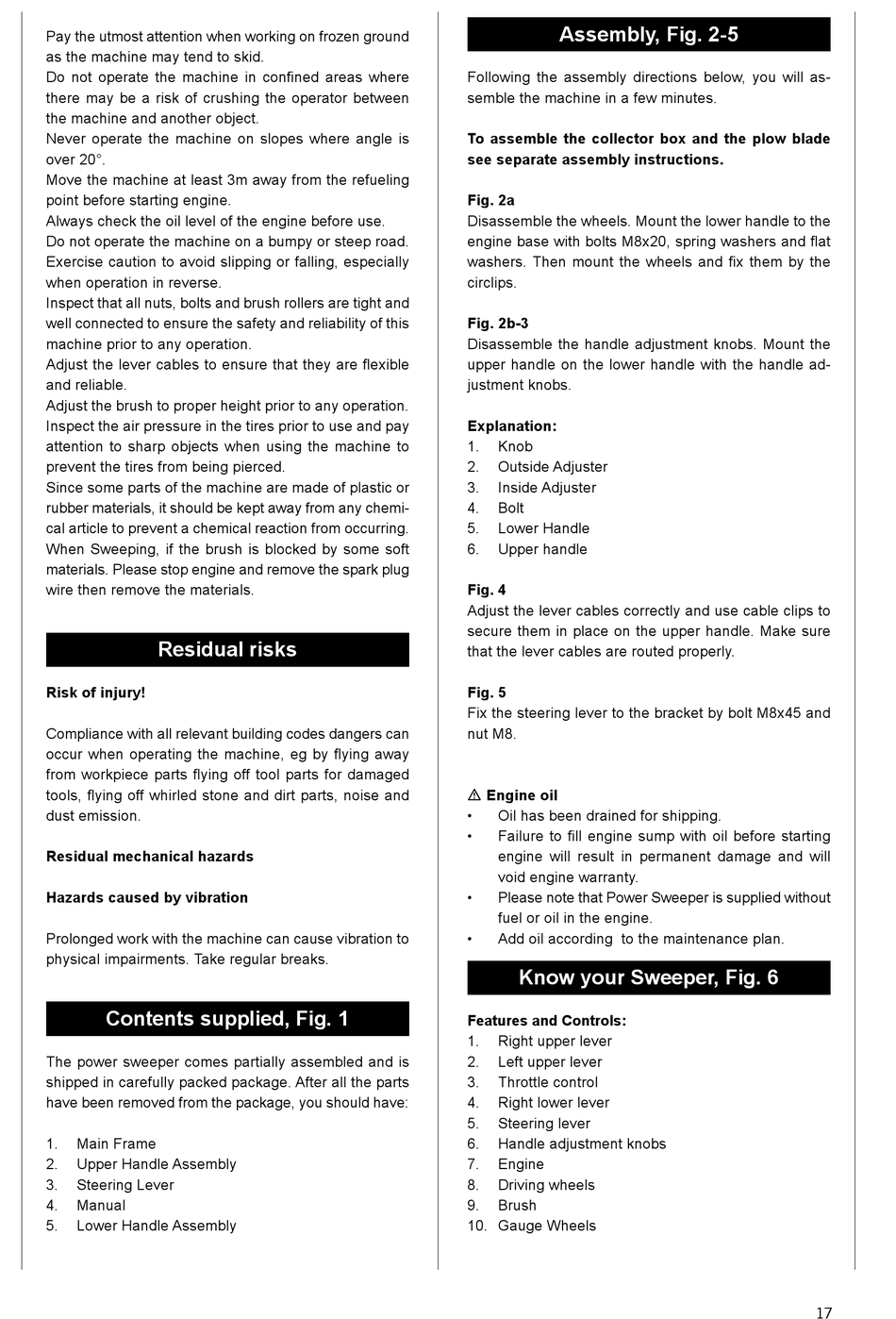

Pay the utmost attention when working on frozen ground
as the machine may tend to skid.
Do not operate the machine in confined areas where
there may be a risk of crushing the operator between
the machine and another object.
Never operate the machine on slopes where angle is
over 20°.
Move the machine at least 3m away from the refueling
point before starting engine.
Always check the oil level of the engine before use.
Do not operate the machine on a bumpy or steep road.
Exercise caution to avoid slipping or falling, especially
when operation in reverse.
Inspect that all nuts, bolts and brush rollers are tight and
well connected to ensure the safety and reliability of this
machine prior to any operation.
Adjust the lever cables to ensure that they are flexible
and reliable.
Adjust the brush to proper height prior to any operation.
Inspect the air pressure in the tires prior to use and pay
attention to sharp objects when using the machine to
prevent the tires from being pierced.
Since some parts of the machine are made of plastic or
rubber materials, it should be kept away from any chemi-
cal article to prevent a chemical reaction from occurring.
When Sweeping, if the brush is blocked by some soft
materials. Please stop engine and remove the spark plug
wire then remove the materials.

Residual risks

Risk of injury!
Compliance with all relevant building codes dangers can
occur when operating the machine, eg by flying away
from workpiece parts flying off tool parts for damaged
tools, flying off whirled stone and dirt parts, noise and
dust emission.
Residual mechanical hazards
Hazards caused by vibration
Prolonged work with the machine can cause vibration to
physical impairments. Take regular breaks.
Contents supplied, Fig. 1
The power sweeper comes partially assembled and is
shipped in carefully packed package. After all the parts
have been removed from the package, you should have:
1. Main Frame
2. Upper Handle Assembly
3. Steering Lever
4. Manual
5. Lower Handle Assembly
Assembly, Fig. 2-5
Following the assembly directions below, you will as-
semble the machine in a few minutes.
To assemble the collector box and the plow blade
see separate assembly instructions.
Fig. 2a
Disassemble the wheels. Mount the lower handle to the
engine base with bolts M8x20, spring washers and flat
washers. Then mount the wheels and fix them by the
circlips.
Fig. 2b-3
Disassemble the handle adjustment knobs. Mount the
upper handle on the lower handle with the handle ad-
justment knobs.
Explanation:
1. Knob
2. Outside Adjuster
3. Inside Adjuster
4. Bolt
5. Lower Handle
6. Upper handle
Fig. 4
Adjust the lever cables correctly and use cable clips to
secure them in place on the upper handle. Make sure
that the lever cables are routed properly.
Fig. 5
Fix the steering lever to the bracket by bolt M8x45 and
nut M8.
m Engine oil
• Oil has been drained for shipping.
• Failure to fill engine sump with oil before starting
engine will result in permanent damage and will
void engine warranty.
• Please note that Power Sweeper is supplied without
fuel or oil in the engine.
• Add oil according to the maintenance plan.
Know your Sweeper, Fig. 6
Features and Controls:
1. Right upper lever
2. Left upper lever
3. Throttle control
4. Right lower lever
5. Steering lever
6. Handle adjustment knobs
7. Engine
8. Driving wheels
9. Brush
10. Gauge Wheels
