INSTALLATION INSTRUCTIONS

This amplifier module can be fixed as a stand-alone product or integrated into a Techconnect
connectivity faceplate.

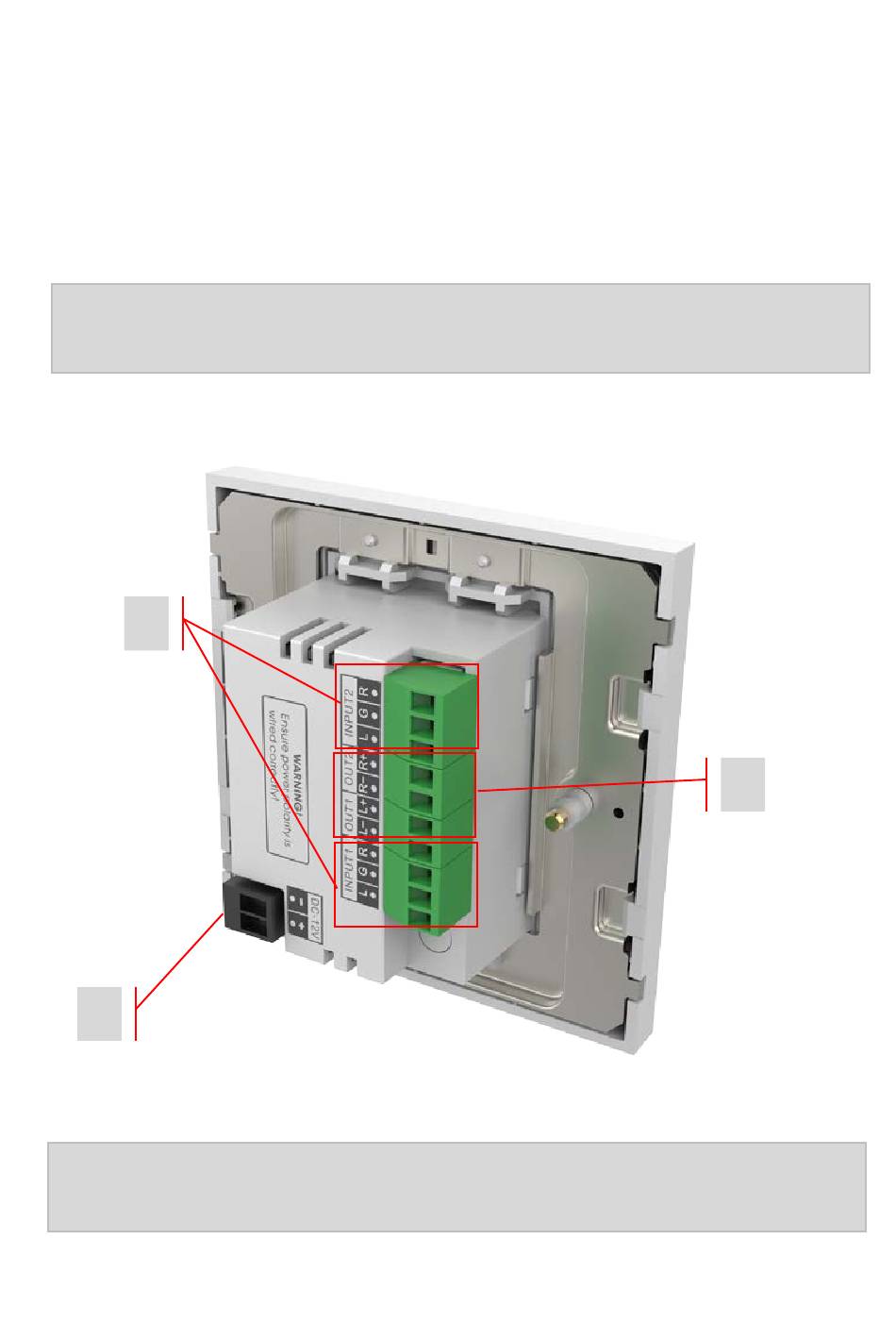

Using as a stand-alone product:
1. CONNECT INPUTS If you have a 2-phono cable twist the two ground wires together
2. CONNECT OUTPUTS Connect up to two speakers to each output (four total)
The speaker cable must be unshielded with a gauge of no less than 0.75mm. THE
WARRANTY WILL BE VOID IF YOU USE UNSUITABLE SHIELDED CABLE E.G. PHONO CABLE.
3.

CONNECT POWER

1 1
3
NOTE: THIS IS A LOW-IMPEDANCE AMPLIFIER. DO NOT ATTEMPT TO CONNECT 100V LINE
SPEAKERS (Normally any speakers with "t" in the part code)
2
6
