2 Interfacing
2

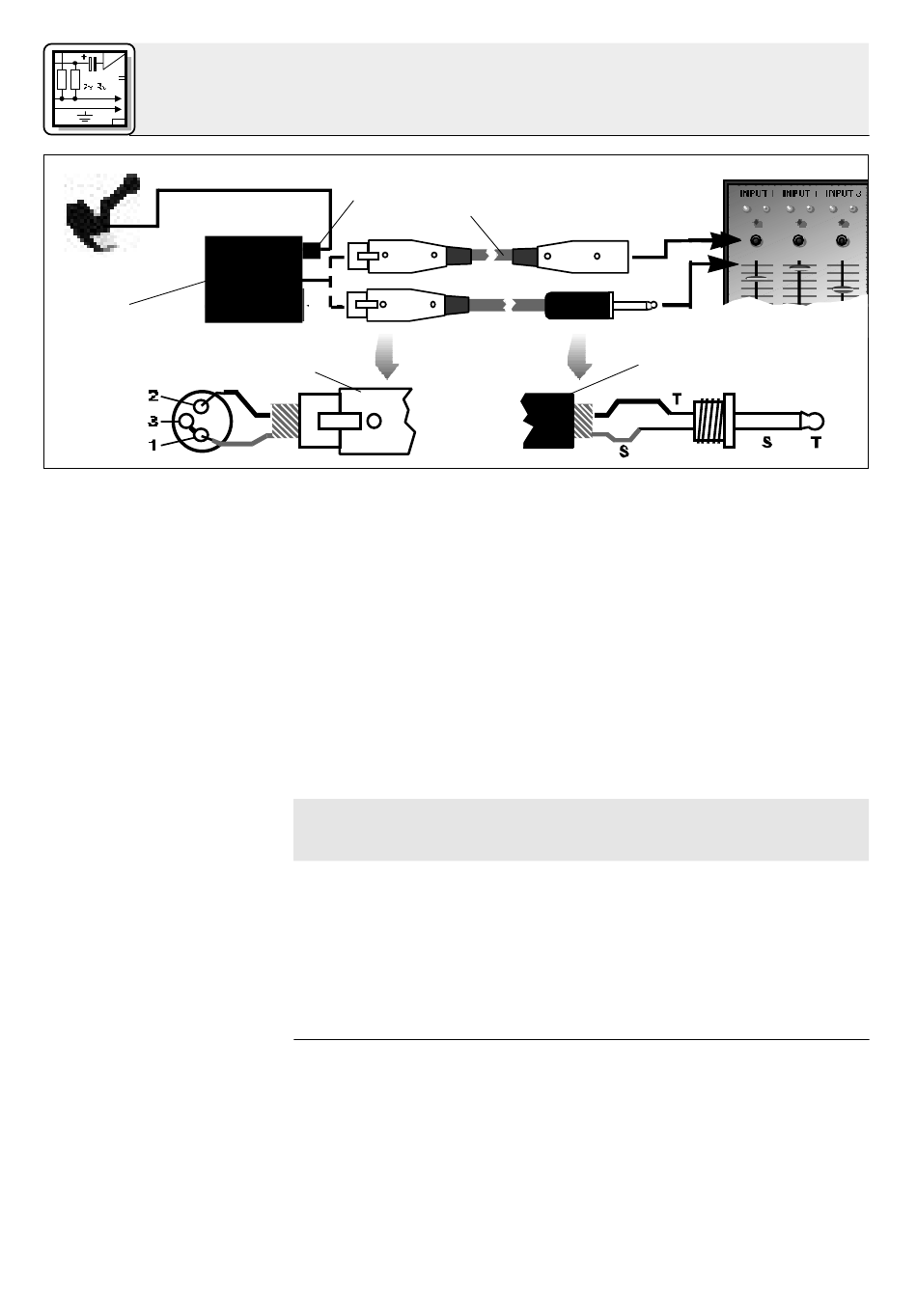

Fig. 3: Using the B 29 L to power the micro p h o n e .
Connecting the
cable:
Refer to fig. 3.
Disconnecting
the cable:
Important!
Refer to fig. 3.
Balanced input:
Unbalanced input:
2.3.2 Using the
MPA III L
Connecting the cable:
Refer to fig. 4.
Disconnecting
the cable:
16
1
B 29 L
4
1. Push the mini XLR connector (1) on the micro-
phone cable into one of the two mini XLR
sockets on the B 29 L (2) to the stop.
The connector will lock automatically.
To disconnect the cable, press the unlocking
button on the mini XLR connector (1) and pull
the connector (1) out of the socket.
To avoid damaging the cable, never try to
pull out the cable itself!
2. Connect the B 29 L (2) to the desired input.
• Use a commercial XLR cable (3) to connect
the B 29 L (2) to a balanced input.
• Refer to section 2.2.2 above.
1. Push the mini XLR connector (1) on the micro-
phone cable into the mini XLR socket (2) on the
cable of the MPA III L (3) to the stop.
The connector will lock automatically.
Refer to section 2.3.1 above.
3
5
