ASROCK K7VT4A Pro Schnellinstallationsanleitung Seite 11

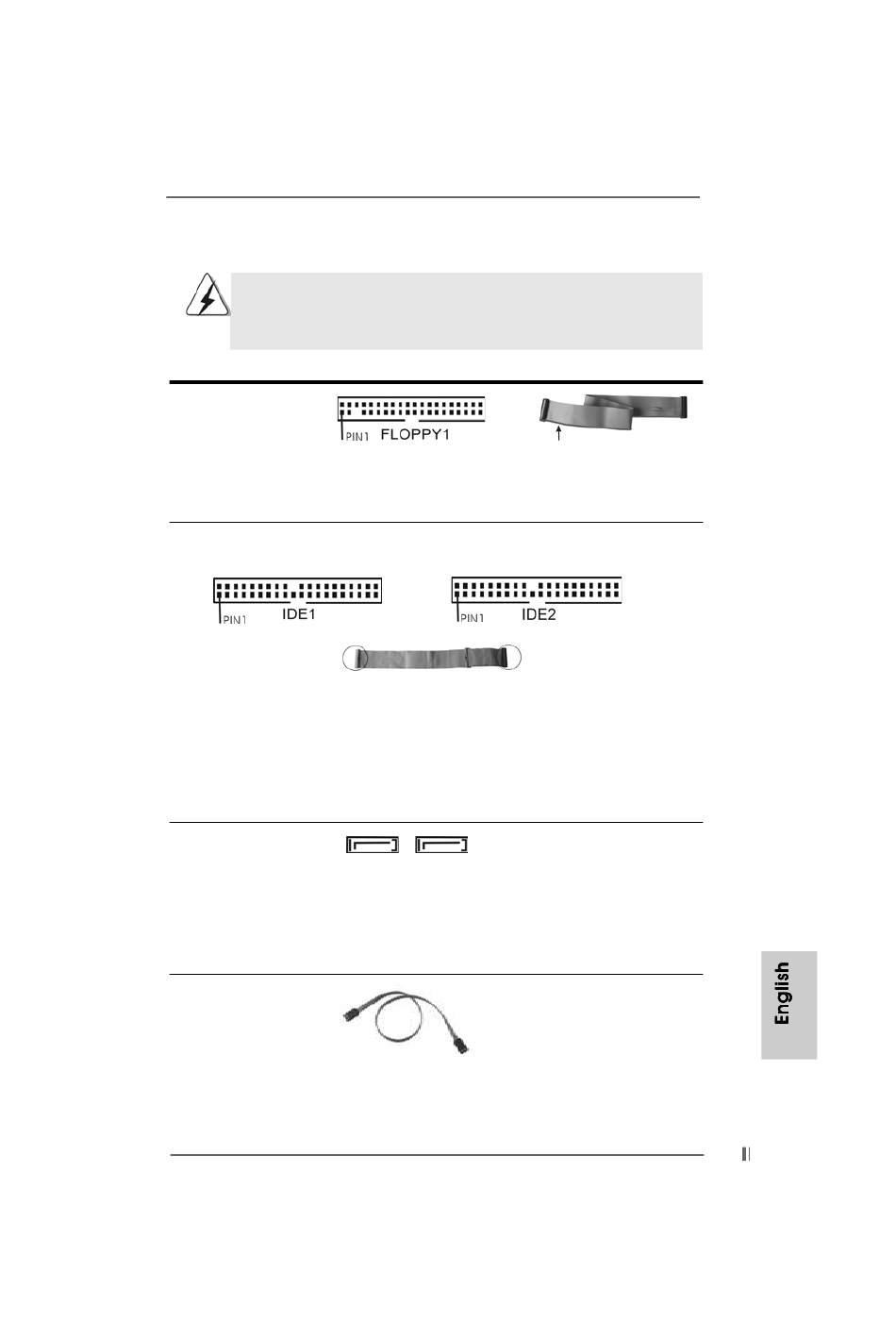

2.5 Connectors 2.5 Connectors 2.5 Connectors 2.5 Connectors 2.5 Connectors
Connectors are NOT jumpers. DO NOT place jumper caps over these
connectors. Placing jumper caps over the connectors will cause perma-
nent damage of the motherboard!
Connector
FDD Connector
(33-pin FLOPPY1)
(see p.2 item 19)
Note: Make sure the red-striped side of the cable is plugged into Pin1 side of the
connector.
Primary IDE Connector (Blue)
(39-pin IDE1, see p.2 item 8)
connect the blue end
to the motherboard
80-conductor, ATA 66/100/133 cable
Note: If you use only one IDE device on this motherboard, please set the IDE
device as "Master". Please refer to the instruction of your IDE device vendor
for the details. Besides, to optimize compatibility and performance, please
connect your hard disk drive to the primary IDE connector (IDE1, blue) and
CD-ROM to the secondary IDE connector (IDE2, black).
Serial ATA Connectors
(SATA1: see p.2 item 12)
(SATA2: see p.2 item 13)
Serial ATA (SATA)
Data Cable
ASRock K7VT4A Pro Motherboard
Figure
Secondary IDE Connector (Black)
(39-pin IDE2, see p.2 item 7)
These two Serial ATA (SATA)
connectors support SATA data
SATA1 SATA2
cables for internal storage
devices. The current SATA
interface allows up to 1.5 Gb/s
data transfer rate.
Either end of the SATA data
cable can be connected to the
SATA hard disk or the SATA
connector on the motherboard.
Description
the red-striped side to Pin1
connect the black end
to the IDE devices
1 1 1 1 1 1
1 1 1 1
