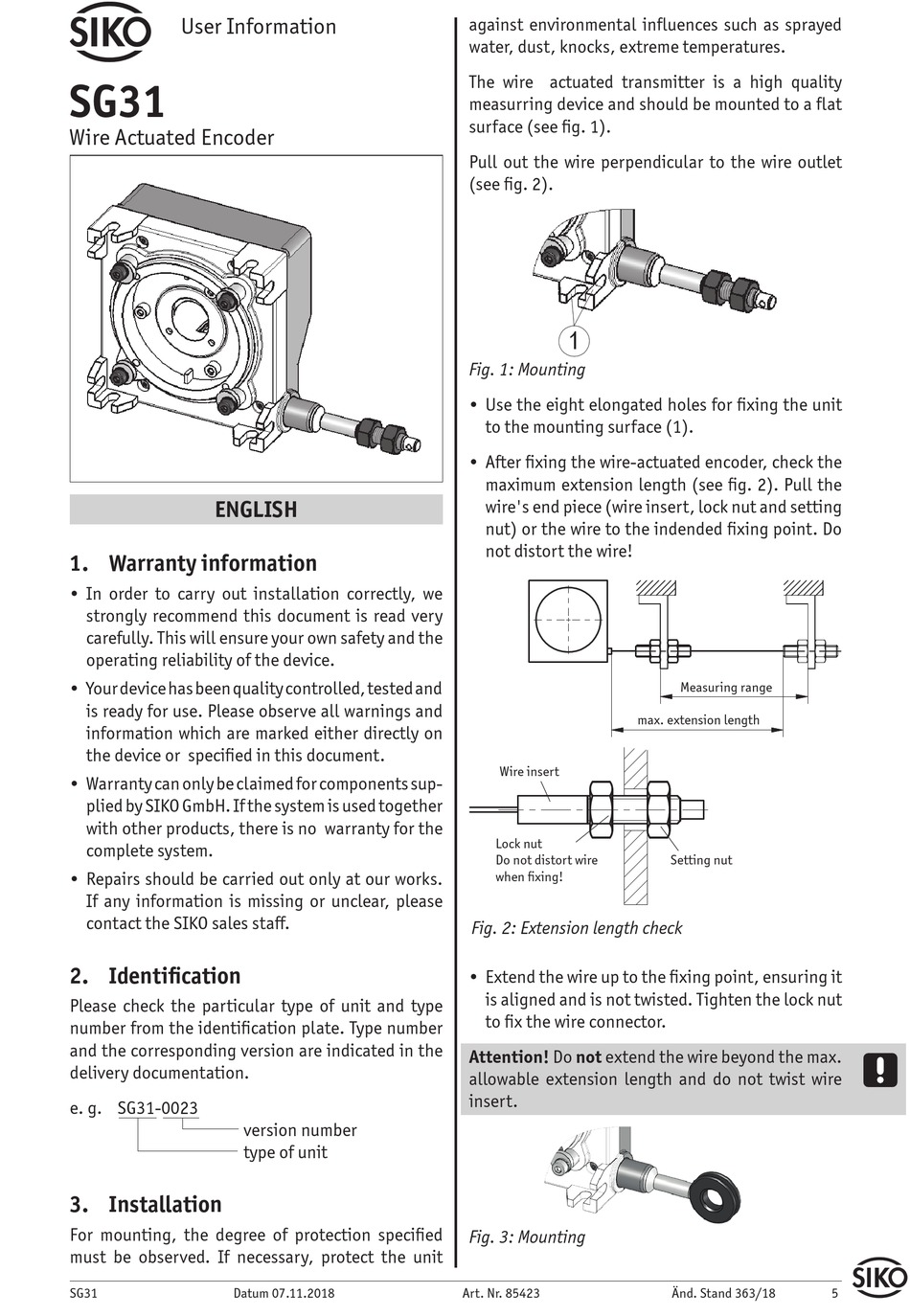

User Information

SG31
Wire Actuated Encoder
ENGLISH

1. Warranty information

• In order to carry out installation correctly, we
strongly recommend this document is read very
carefully. This will ensure your own safety and the
operating reliability of the device.
• Your device has been quality controlled, tested and
is ready for use. Please observe all warnings and
information which are marked either directly on
the device or specified in this document.
• Warranty can only be claimed for components sup-
plied by SIKO GmbH. If the system is used together
with other products, there is no warranty for the
complete system.
• Repairs should be carried out only at our works.
If any information is missing or unclear, please
contact the SIKO sales staff.
2. Identification
Please check the particular type of unit and type
number from the identification plate. Type number
and the corresponding version are indicated in the
delivery documentation.
e. g. SG31-0023

3. Installation

For mounting, the degree of protection specified
1
must be observed. If necessary, protect the unit
SG31 Datum 07.11.2018
version number
type of unit
against environmental influences such as sprayed
water, dust, knocks, extreme temperatures.
The wire actuated transmitter is a high quality
measurring device and should be mounted to a flat
surface (see fig. 1).
Pull out the wire perpendicular to the wire outlet
(see fig. 2).

Fig. 1: Mounting
• Use the eight elongated holes for fixing the unit
to the mounting surface (1).
• After fixing the wire-actuated encoder, check the
maximum extension length (see fig. 2). Pull the
wire's end piece (wire insert, lock nut and setting
nut) or the wire to the indended fixing point. Do
not distort the wire!
Wire insert
Lock nut
Do not distort wire
when fixing!
Fig. 2: Extension length check
• Extend the wire up to the fixing point, ensuring it
is aligned and is not twisted. Tighten the lock nut
to fix the wire connector.
Attention! Do not extend the wire beyond the max.
allowable extension length and do not twist wire
insert.
Fig. 3: Mounting
Art. Nr. 85423
Measuring range
max. extension length
Setting nut
Änd. Stand 363/18 5
