4.2

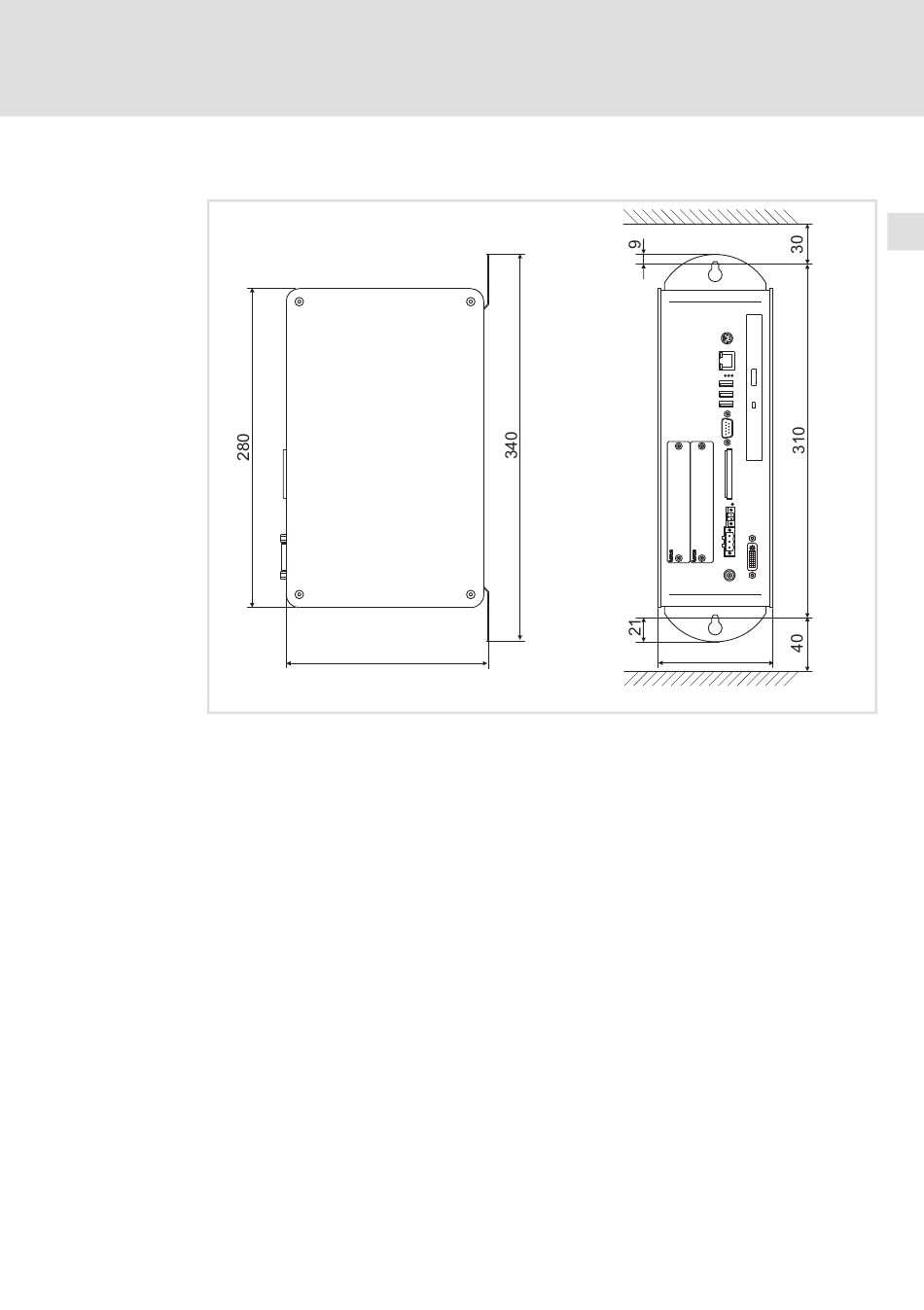

Dimensions
All dimensions in millimetres.
4.3
Mounting steps
Proceed as follows for the mounting:
1. Check that the installation location meets the operating conditions
specified in the technical data.
2. Prepare the control cabinet mounting plate.
–
Observe the dimensions and mounting clearances (¶ 23).
–
There must be sufficient space for inserting disks into or ejecting them
from the DVD drive.
–
The ventilation slots must not be covered.
3. Screw the device onto the mounting plate.
–
The mounting location and the installation material must guarantee a
permanent mechanical connection.
MA_CPCx8xx DE/EN/FR/ES/IT 2.0
178
l
Installation
Dimensions
101
CPC2700−003
4
23
