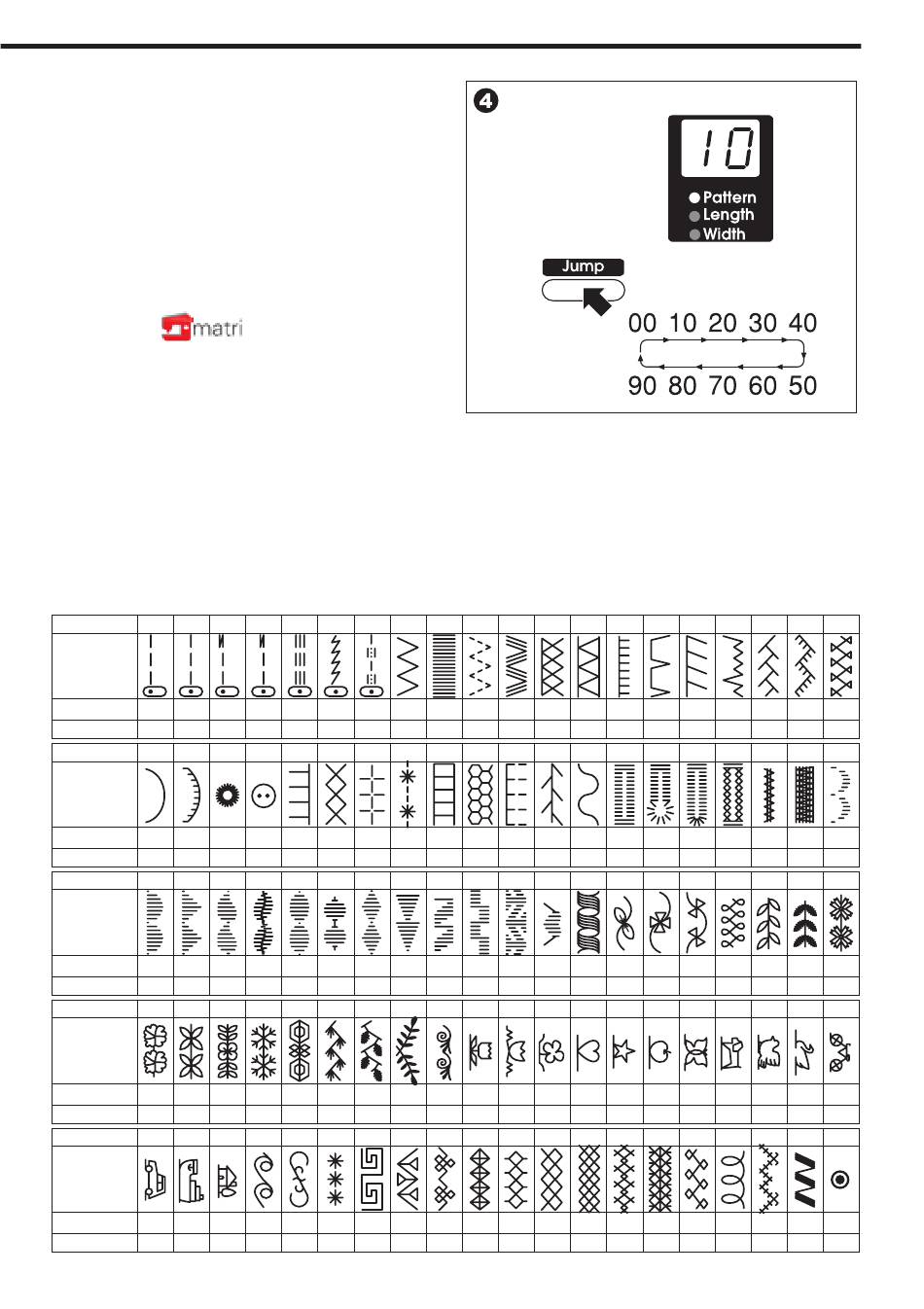

Necchi 420 Gebrauchsanweisung Seite 19

4. JUMP BUTTON
Whenever you press this button, indicator
changes to pattern number mode and
pattern number jumps to next 10 digit.
Pressing this button, pattern number
jumps 10 numbers up.
5. PATTERN CHART
All stitch patterns and numbers are described in below chart.
And also, preset stitch length and width are indicated.
See next page if you want to change these settings.
Straight stitches (No. 00, 01, 02, 03, 04, 06) will indictate the needle position instead of the
stitch width.
Number 00 01 02 03 04 05 06 07 08 09 10 11 12 13 14 15 16 17 18 19
Pattern
Length 2.5 2.5 2.5 2.5 2.6 2.6 3.0 2.0 0.5 1.0 2.6 2.0 2.0 1.8 1.8 2.6 1.8 2.6 2.6 2.6
Width 0.0 3.5 0.0 3.5 3.5 3.5 3.5 5.0 5.0 5.0 5.0 7.0 7.0 2.5 5.0 5.0 3.0 6.0 7.0 7.0
Number 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39
Pattern
Length 1.6 2.6 --
Width 7.0 7.0 7.0 3.0 5.0 6.0 4.0 5.0 5.0 7.0 5.0 5.0 5.0 5.0 5.0 5.0 6.0 2.5 7.0 7.0
Number 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59
Pattern
Length 0.5 0.5 0.5 0.5 0.5 1.6 0.5 0.5 0.5 0.5 1.6 1.6 2.6 2.6 2.6 2.6 2.6 2.6 2.6 2.6
Width 7.0 7.0 7.0 7.0 7.0 7.0 7.0 7.0 7.0 6.0 7.0 7.0 7.0 7.0 7.0 7.0 7.0 7.0 7.0 7.0
Number 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79
Pattern
Length 2.6 2.6 2.4 2.6 2.6 2.6 2.6 2.6 1.4 2.6 2.6 2.6 2.6 2.6 2.6 2.6 2.6 2.6 2.6 2.6
Width 7.0 7.0 7.0 7.0 7.0 7.0 7.0 7.0 7.0 7.0 7.0 7.0 7.0 7.0 7.0 7.0 7.0 7.0 7.0 7.0
Number 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99
Pattern
Length 2.6 2.6 2.6 2.6 2.6 2.6 2.6 2.6 2.0 2.6 2.6 2.6 2.6 2.6 2.6 2.6 2.6 2.6 2.6 --
Width 7.0 7.0 7.0 7.0 7.0 5.0 7.0 7.0 6.0 7.0 7.0 7.0 7.0 7.0 7.0 7.0 7.0 7.0 5.0 0.0
-- 2.6 2.6 2.6 2.6 2.6 2.6 2.6 2.6 1.0 0.5 0.5 0.5 2.4 1.0 1.8 0.5
17
