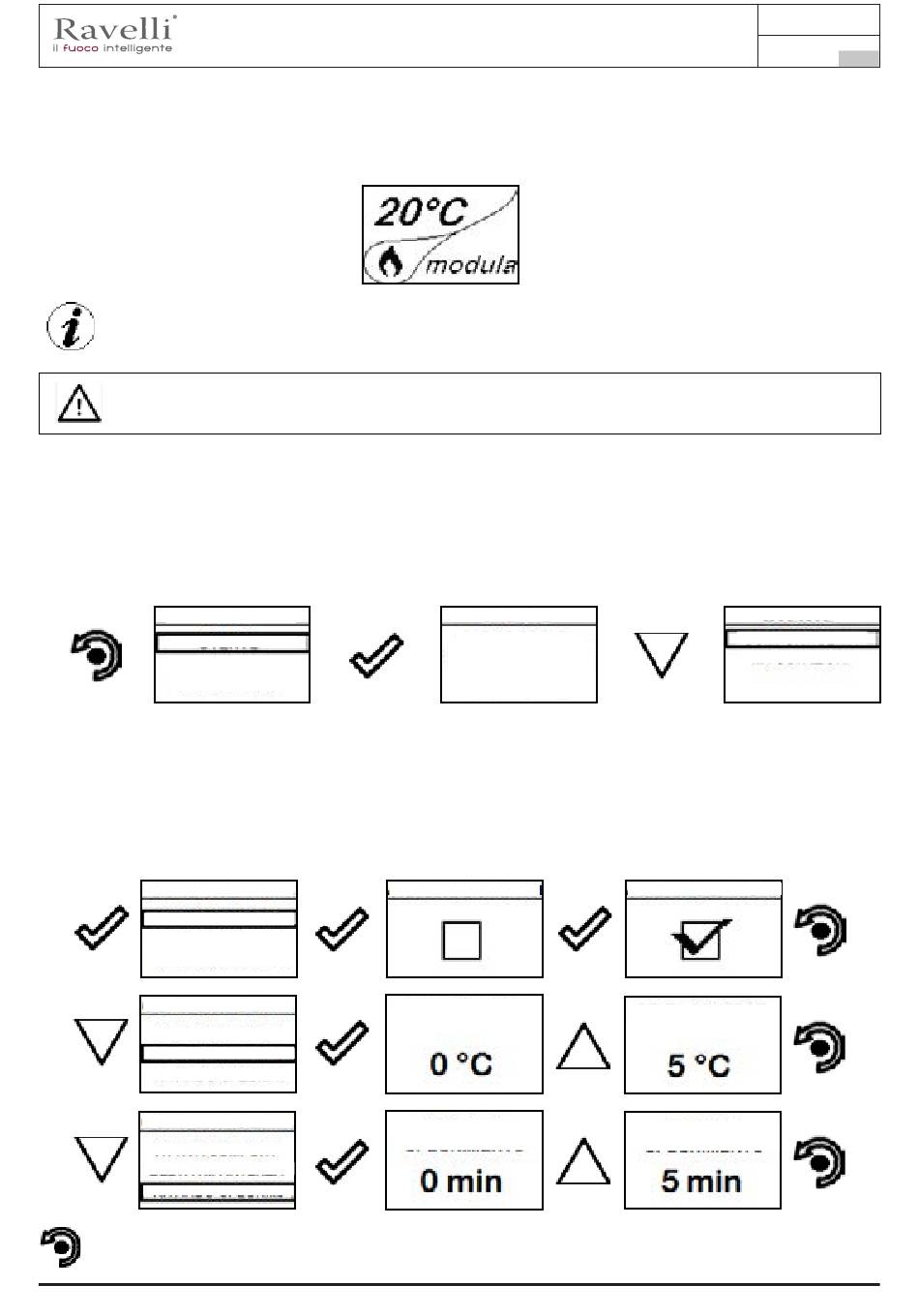

Operating phases of the appliance

Operating phases of the appliance

Modulation

Modulation
During the work phase, the appliance should reach the room temperature set; when this condition is met, the stove switches to
MODULATION mode in which fuel consumption and ventilation are minimum.
If you wish to detect the ambient temperature by means of an external thermostat (optional), this must be connected to
the appropriate connector on the rear side of the stove; and you will have to activate the reading in "SETTINGS - EN -
ABLE THERMOSTAT." On display appears the writing TON / TOFF based on thermostat request.
CONNECT AN EXTERNAL THERMOSTAT WITH A SIMPLE DRY CONTACT, THEREFORE, NOT POWERED. MORE-
OVER, WE RECOMMEND YOU USE A THERMOSTAT WITH A MINIMUM OFFSET OF 3°C IF YOU INTEND TO USE
THE COMFORT CLIMA FUNCTION.

Comfort climate

Comfort climate
The activation of this function enables the stove to reduce pellet consumption by activating the modulation phases, after the desired
temperature has been reached. Subsequently, the stove checks that the temperature is maintained steady for a preset time. If this
condition is met, it automatically switches off, and on display appears the writing ECO.
The stove turns on again when the temperature drops below the set threshold.
Below are given the steps for accessing the relative menu.
MANUFACTURER
ENGINEER
Press the key
"access menu" to
access
the
MENU page
Once you have accessed the Climate Comfort menu, it is possible to operate on the 3 types of settings dedicated to the function:
COMFORT CLIMA
ENABLE COMFORT
RESTART DELTA
SHUTDOWN DELAY
COMFORT CLIMA
ENABLE COMFORT
RESTART DELTA
SHUTDOWN DELAY
COMFORT CLIMA
ENABLE COMFORT
RESTART DELTA
SHUTDOWN DELAY
Press the key for several times until the Stand-by page is displayed.
Use and maintenance manual R-Evolution 11
User's manual HANDHELD TOUCH RADIO
MENU
USER
Press the key
"confirm"
to access the
USER page
USER
SCREW FEEDING
CHRONOTHERMOSTAT
AIR-PELLET SET
STOVE STATE
ENABLE COMFORT
COMFORT CLIMA DELTA
SHUTDOWN DELAY
Rev.1 02/02/2018
Page 67
Vers. 01 of:07.04.14
COMFORT CLIMA
SETTINGS
Press the key "selection" for
"selection"
to switch to the second page
of USER MENU and select
CLIMATE COMFORT.
ENABLE COMFORT
COMFORT CLIMA DELTA
SHUTDOWN DELAY
EN
Pag.23
USER
