Specifications - Clevo P640Re Benutzerhandbuch

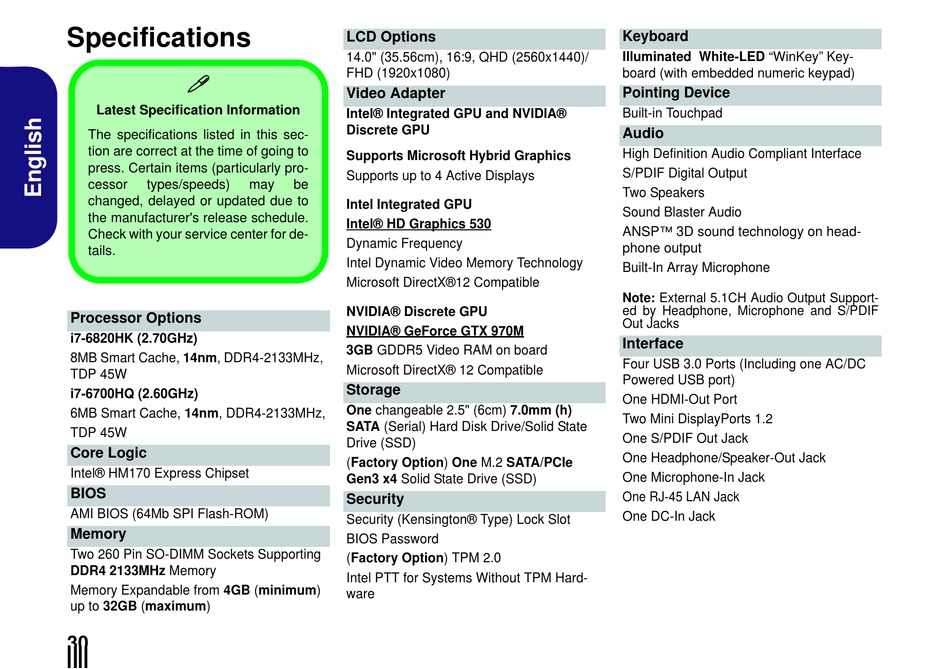

Specifications


Latest Specification Information
The specifications listed in this sec-
tion are correct at the time of going to
press. Certain items (particularly pro-
cessor types/speeds)
changed, delayed or updated due to
the manufacturer's release schedule.
Check with your service center for de-
tails.
Processor Options
i7-6820HK (2.70GHz)
8MB Smart Cache, 14nm, DDR4-2133MHz,
TDP 45W
i7-6700HQ (2.60GHz)
6MB Smart Cache, 14nm, DDR4-2133MHz,
TDP 45W
Core Logic
Intel® HM170 Express Chipset
BIOS
AMI BIOS (64Mb SPI Flash-ROM)
Memory
Two 260 Pin SO-DIMM Sockets Supporting
DDR4 2133MHz Memory
Memory Expandable from 4GB (minimum)
up to 32GB (maximum)
30
LCD Options
14.0" (35.56cm), 16:9, QHD (2560x1440)/
FHD (1920x1080)
Video Adapter
Intel® Integrated GPU and NVIDIA®
Discrete GPU
Supports Microsoft Hybrid Graphics
Supports up to 4 Active Displays
may be
Intel Integrated GPU
Intel® HD Graphics 530
Dynamic Frequency
Intel Dynamic Video Memory Technology
Microsoft DirectX®12 Compatible
NVIDIA® Discrete GPU
NVIDIA® GeForce GTX 970M
3GB GDDR5 Video RAM on board
Microsoft DirectX® 12 Compatible
Storage
One changeable 2.5" (6cm) 7.0mm (h)
SATA (Serial) Hard Disk Drive/Solid State
Drive (SSD)
(Factory Option) One M.2 SATA/PCIe
Gen3 x4 Solid State Drive (SSD)
Security
Security (Kensington® Type) Lock Slot
BIOS Password
(Factory Option) TPM 2.0
Intel PTT for Systems Without TPM Hard-
ware
Keyboard
Illuminated White-LED "WinKey" Key-
board (with embedded numeric keypad)
Pointing Device
Built-in Touchpad
Audio
High Definition Audio Compliant Interface
S/PDIF Digital Output
Two Speakers
Sound Blaster Audio
ANSP ™ 3D sound technology on head-
phone output
Built-In Array Microphone
Note: External 5.1CH Audio Output Support-
ed by Headphone, Microphone and S/PDIF
Out Jacks
Interface
Four USB 3.0 Ports (Including one AC/DC
Powered USB port)
One HDMI-Out Port
Two Mini DisplayPorts 1.2
One S/PDIF Out Jack
One Headphone/Speaker-Out Jack
One Microphone-In Jack
One RJ-45 LAN Jack
One DC-In Jack
