Installation and Operating Instructions
CHAPTER 6
WIRING DIAGRAM
OVERVIEW
VAR . . EX-TYPES
SS-498
VARD 355/2 Ex
VARD 400/2 Ex
VARD 450/2 Ex
VARD 500/2 Ex
VARD 630/4 Ex
VARD 710/6 Ex
VARD 710/4 Ex
VARD 800/6 Ex
VARD 800/4 Ex
VARD 900/8 Ex
VARD 900/6 Ex
VARD 900/4 Ex
VARD 1000/8 Ex
VARD 1000/6 Ex
VARD 1000/4 Ex
Three-phase motor without TK
SS-470
VARD 225/4 Ex
or
VARD 225/2 Ex
VARD 250/4 Ex
VARD 250/2 Ex
VARD 280/4 Ex
VARD 280/2 Ex
VARD 315/4 Ex
VARD 315/2 Ex
VARD 355/4 Ex
l contact
VARD 400/6 Ex
VARD 400/4 Ex
VARD 450/6 Ex
VARD 450/4 Ex
é sans
VARD 500/6 Ex
VARD 500/4 Ex
s
VARD 560/4 Ex
VARD 560/8 Ex
VARD 560/6 Ex
VARD 630/8 Ex
VARD 630/6 Ex
VARD 710/8 Ex
VARD 800/8 Ex
Three-phase motor without TK
U1/V1/W1 /PE
SS-757
VARW 225/4 Ex
VARW 225/2 Ex
VARW 250/4 Ex
VARW 280/4 Ex
VARW 315/4 Ex
Single-phase motor
RADAX
®
VAR . . – High pressure in-line fans
6 .0

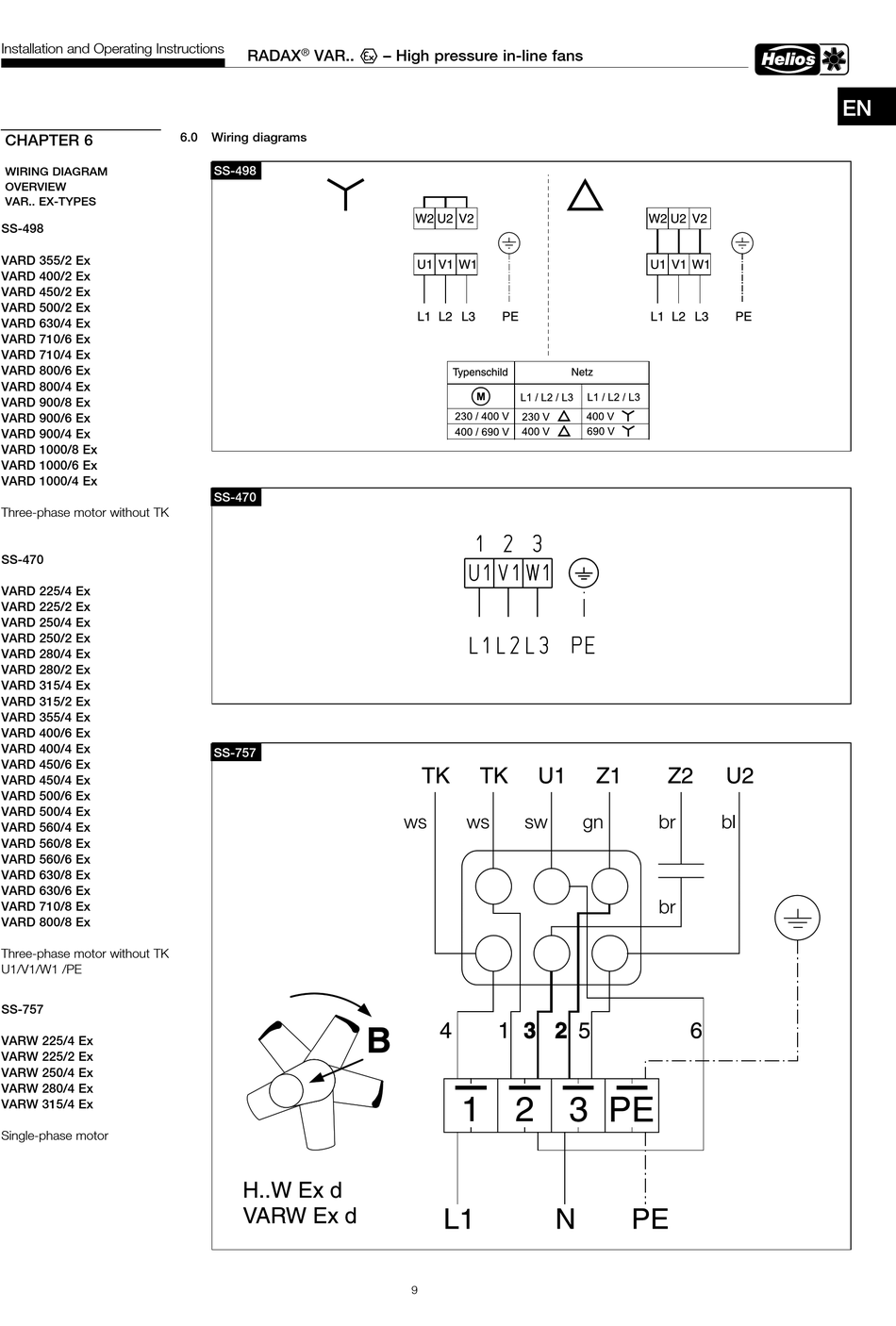

Wiring diagrams
SS-498
SS-470
SS-757
9
EN
