Replacing the Charcoal Filter
This fi lter cannot be washed or regene-
rated, and must be replaced when the
EN
S2 led starts to fl ash, or at least once
every 4 months.
Enabling/Disabling the alarm signal
• In Recirculation Version Hoods, the
Filter saturation Alarm must be ena-
bled at the time of installation or later.
• Switch off the lights and the motor.
• Disconnect the mains power supply
to the hood by removing the motor
unit power supply cable connector,
switching off the power supply at the
Mains or turning the Main switch off.
• Restore the connection by pressing
and holding T1.
• Release the touch control after 4
seconds, led S1 and S3 will fl ash to
confi rm as follows:
• 2 fl ashes – Charcoal Filter saturation
Alarm ACTIVATED
• 1 fl ash - Charcoal Filter saturation
Alarm DEACTIVATED
Reset the alarm signal
• Stop the motor.
• Press the T1 -touch control for at
least 4 seconds until the S3 -led
fl ashes twice.
Maintenance
Replace the Filter
• Remove the grill.
• Remove the metal grease fi lters.
• Remove the saturated charcoal fi lter,
turning the fasteners provided.
• Fit the new fi lter and fasten it its cor-
rect position.
• Put the metal grease fi lters in their
seats.
• Place the grill in its seat.

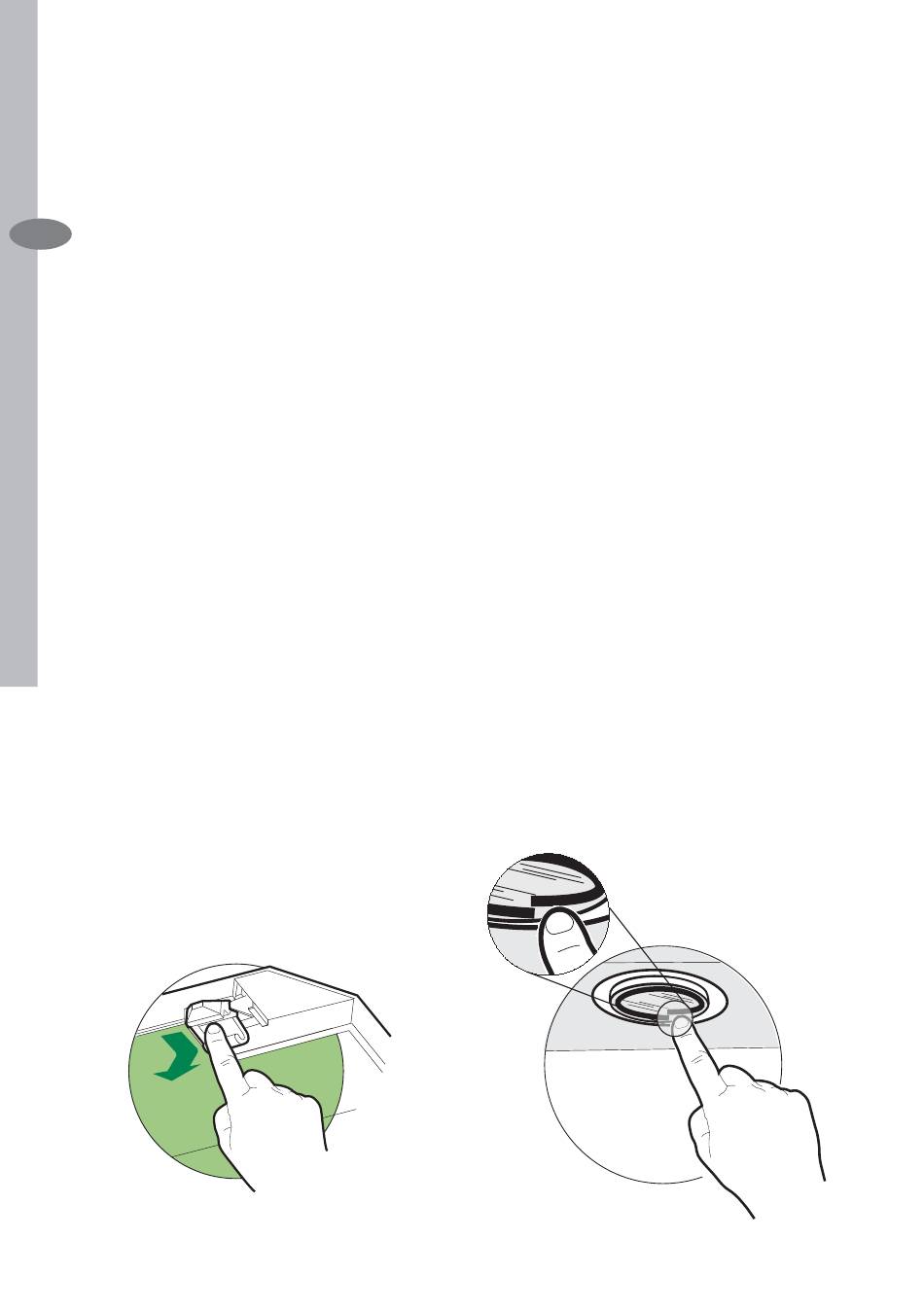

Light replacement
20 W halogen light.
• Find the cut side of the snap-on
cover ring by pressing gently toward
the centre of the spot light; it will be
released.
• Remove the snap-on cover and the
glass, being careful not to drop it.
• Remove the halogen lamp from the
lamp holder by pulling gently.
• Replace the lamp with a new one of
the same type, making sure that you
insert the two pins properly into the
housings on the lamp holder.
• Replace the glass and the snap-on
cover ring.
