10 electrolux

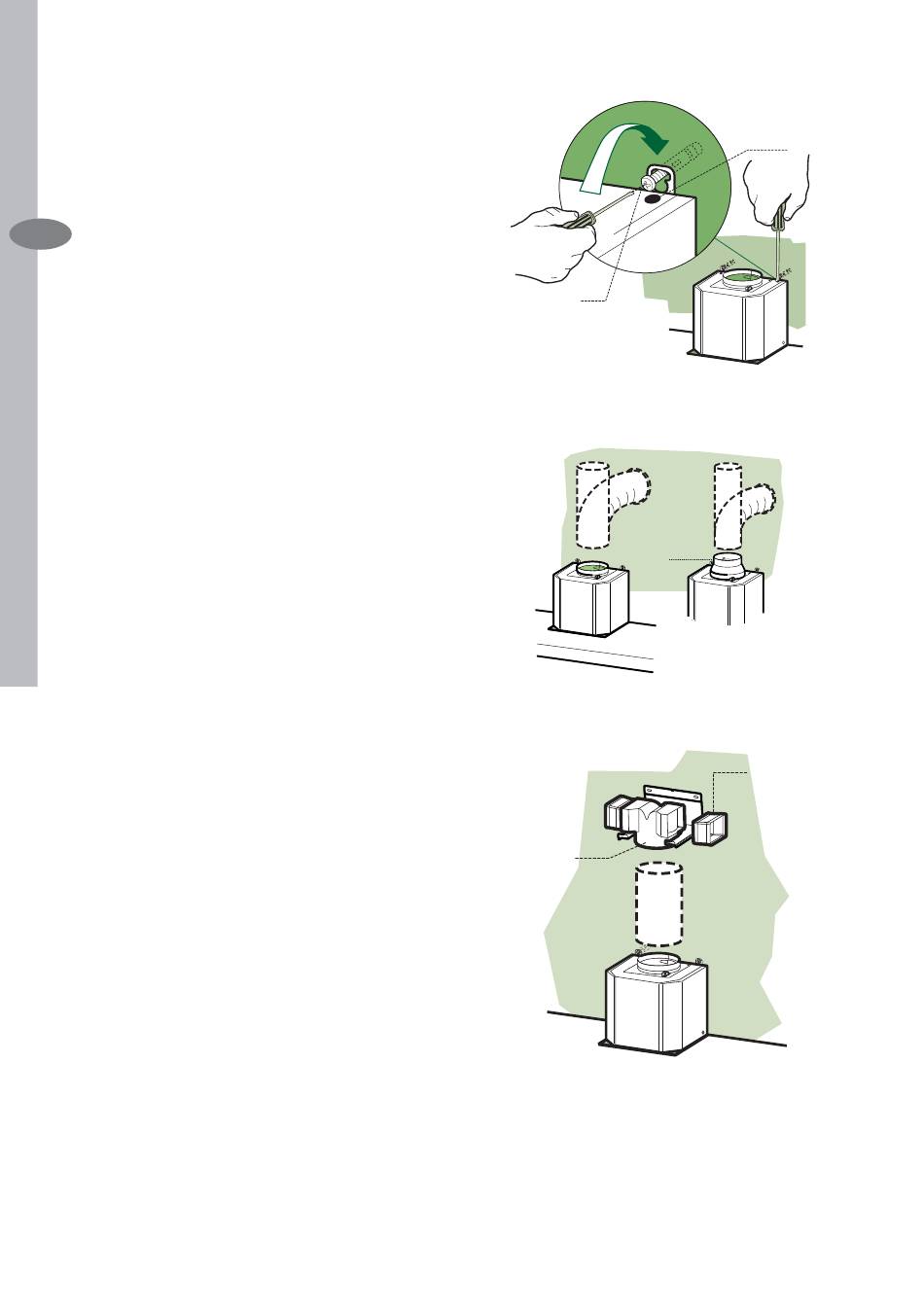

Hood body installation
• Before attaching the hood body,
tighten the two screws Vr located on
the hood body mounting points.
EN
• Hook the hood body onto the screws
12a.
• Fully tighten support screws 12a.
• Adjust screws Vr to level the hood
body
Connection in Ducting Version
When installing the ducting version,
connect the hood to the chimney using
either a fl exible or rigid pipe ø 150 or
120 mm, the choice of which is left to
the installer.
• To install a ø 120 mm air exhaust con-
nection, insert the reducer fl ange 9 on
the hood body outlet.
• Fix the pipe in position using suffi cient
pipe clamps (not supplied).
• Remove charcoal fi lters, if present.

Connection in Recycling Version

• Put connection 15 into the connec-
tion support 7.3.
• Insert the connection extension piec-
es laterally 14.1 in connection 15.
• Make sure that the outlet of the exten-
sion pieces 14.1 is horizontally and
vertically aligned with the chimney
outlets.
• Connect the air outlet connection 15
to the hood body outlet using either
a fl exible or rigid pipe ø 150 mm, the
choice of which is left to the installer.
• Ensure that the activated charcoal
fi lters have been inserted.
Installation
12a
ø 150 ø 120
9
14.1
15
ø 150
Vr
