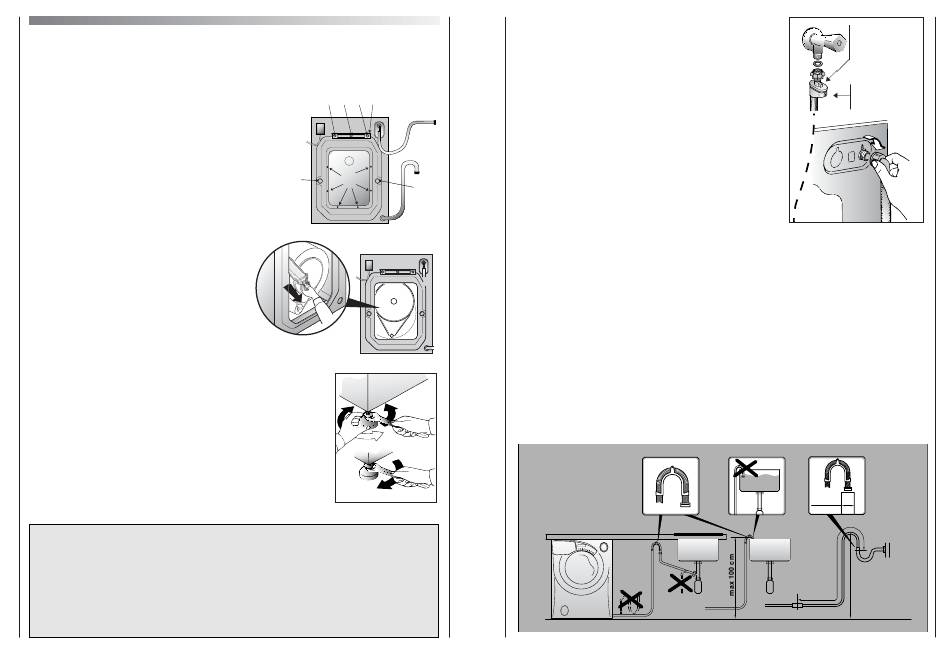

Installation & Testing
After removing the machine from the packaging, proceed
as follows:
On the back of the machine
1) Unscrew the screws G and remove the back panel.
2) Unscrew the centre brace A, the two side screws C
and remove the transverse bracket D and the relevant
plastic spacer.
3) Unscrew the 2 B braces and remove them.
This will cause 2 plastic spacers to fall into
the machine.
4) Remove the above-mentioned plastic
spacers.
5) Remove the plastic bags containing the two
polystyrene blocks at the sides.
6) Remount the back panel using the screws G.
7) Cover the holes using the caps enclosed in the
instructions envelope.
8) Level the machine using the two adjustable front feet.
Note: we recommend you keep the transit bracket, braces
and screws to immobilise the machine for future transit.
The Manufacturers will not be responsible for any possible
damage to the machine caused by not following the rules
relating to releasing the mechanism. The user is responsible
for all costs of installation.
C A C D
G
B
A
B
C
44

Water supply

The machine has an inlet hose with 3/4» threaded
ferrules fitted to the ends to attach between the threaded
connector on the appliance and the cold water supply.
The appliance must be connected to the water mains
using new hose-sets. The old hose-seta should not be
resused.
The appliance must only be connected to the cold water
supply.
Connection to a warm water supply, that is over 40°,
may damage certain delicate fabrics.
B
Acqua-stop
The fill hose supplied with this machine has a double skin
and incorporates a water valve . If the inner hose bursts
the valve will automatically shut off the water supply to
prevent flooding. The indicator turns red (A). Should this
happen, turn off the water supply immediately and have a
new fill hose fitted by Hoover Service.
Safety antitwist
device (press and
twist to remove
the washer)
Red button
blocked valve
indicator
A
min 4 cm
+2,6 mt max
min 50 cm
max 85 cm
45
