Changing the creasing guide tape on the bottom of the creasing unit.
Separate the bottom part from creasing blade. Remove
the damaged crease tape from the bottom. Fit new tape onto
the steel angle tool on the edge that fits into the slots each side
(see diagram). Remove the protective foil from the tape refit
to the base unit pull down the handle firmly to stick the tape
on strong to the metal bottom. Remove from the base unit
and take of the angle bar tool, remove the white part from
the new creasing tape carefully. Re-assemble the creasing
unit and continue creasing.
6
PERFORATION
(Perforating tool not supplied with equipment).
Fit the perforating tool to the press plate (2) in the locating slots you will hear a distinctive click sound
then push it down to open it then tool is installed properly (see arrows on the picture above).
Using front or back guides, set the position for the perforation. Put the material under the press plate
and pull the handle down carefully to get the correct perforation on the material.
Around the perforating knife there is a rubber strip which helps to remove perforated material from the
knife. When using on a large run of perforating the rubber can become deformed, causing the mate-
rial not to be removed from the knife. You can replace it or let in rest for a short time and the rubber
will recover its shape and characteristic. SEE our spares list for new rubber strip, pads and perforating
knifes.
7
CORNER TRIMMING/ROUNDING
(Corner Cutting assembly is not supplied
with equipment).

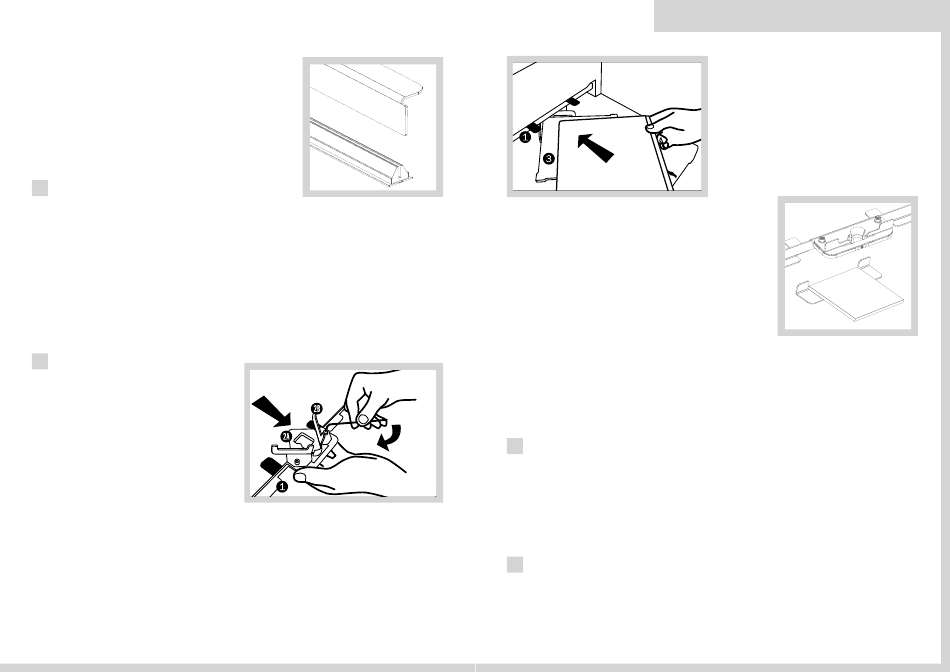

Setting up and Calibrating new corner trimer.
Loosen guides (2B). Insert the corner cutter
for your chose into the assembly (1) and tighten
grub screw with the 2mm Allen key. Using the
aliening tool (A2) ensure that the number on
the trimmer/cutter matches the one on the
aliening tool (A2) i.e. (R4,R6,R10, C15) place
on the magnet in (1) and press into the blade
then push gently the side guides up to edges (2A)
and tighten with the 3mm Allen Key supply (see diagram opposite).
6
Calendar thumb hole cutting for wire hanger
and assembling:
Take the corner/trimmer assemble (1) remover side guides
and blade. Fit thumb hole cutter blade, with rounded edge
towards you, fit the new stop guide in the same holes
for the side guides with the screws, fit to press plate bar,
put the small cutting board with the stops up against
the stops on (1). Use the magnetic side guide to ensure
the calendar/material is centred.
Holding the calendar/material with one hand pull down
the handle carefully to cut the thumb hole.
Due to the extremely sharp knife edge be very careful when handling the tool. There is a risk of injury.
Using Multicrease 30 is possible to use all knives offered for O.Corner Cutter, i.e.: O.Corner
Cutter Blade R4, R6, R10, C15 straight cut
SEE OUR ACCSORIES AT HYPERLINK "http://WWW.OPUS.PL/EN" WWW.OPUS.PL/EN, FINISHING TOOLS, ACCESORIES
8

DIE CUTTING e.g. windows in covers

Place the Die cutting board and material with the Die cutting blade on the top under the press plate.
Starting at the front gently pull down the large handle then move it forward and repeat the action
until all of the blade has cut through the material.
Note!
It is recommended to use a die cutters with a height of 19mm which are offered by
most manufacturer and OPUS to achieve the best results.
SEE OUR ACCSORIES AT HYPERLINK "http://WWW.OPUS.PL/EN" WWW.OPUS.PL/EN , FINISHING TOOLS, ACCESORIES
9

Technical data:

Maximum creasing width: 300 mm / 11.8"
Maximum material thickness to crease: 0.3 mm / 0.01"
Creasing bar thickness: 0.7mm (2Pt) / 0.02"
Net weight: 17.5 kg / 38.6 lbs
Gross weight: 19.5 kg / 43 lbs
Overall Size: (WXD): 550 x 380 x 270 mm / 21.6" x 15" x 10.6"
version : 27.11.2012
MultiCREASE 30 - User's guide
Hold the assemble (1) by the thumb tabs and
push into the slots on the press bar plate you
will hear a click that confirms the assemble (1) is
installed. Put the cutting pad (3) up to the stops
under the cutter/trimmer then put the material
on to the cutting board and up to the stops,
holding the material with one hand pull down
the handle carefully.
GB
7
