2.6

Power supply

The antenna unit can be connected directly without a converter to any ship's power supply
net of 12/24/32 volts DC. The circuit fuse should be rated for min. 5 amperes and max. 7.5
amperes! (see chapter 7.8 "Technical Specifications").
The power distributor must be idle while working on the ship's supply net or you short
circuit the system.
If the negative side of the supply voltage of the antenna unit has no connection to the boat
ground, make sure a potential compensation between boat ground and the ground point of
the antenna unit is made.

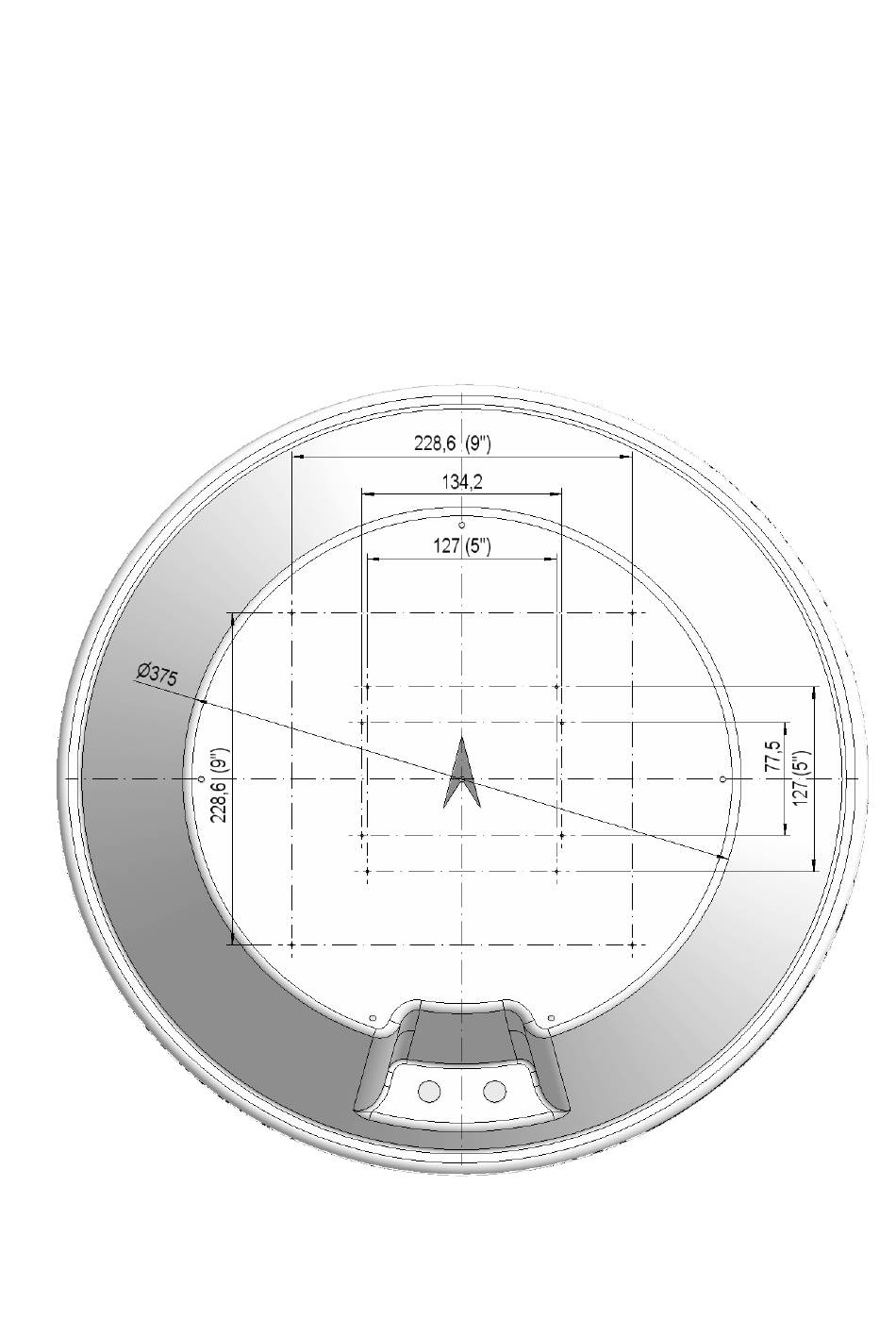

2.7

Drillings

English Page 8 / 34
