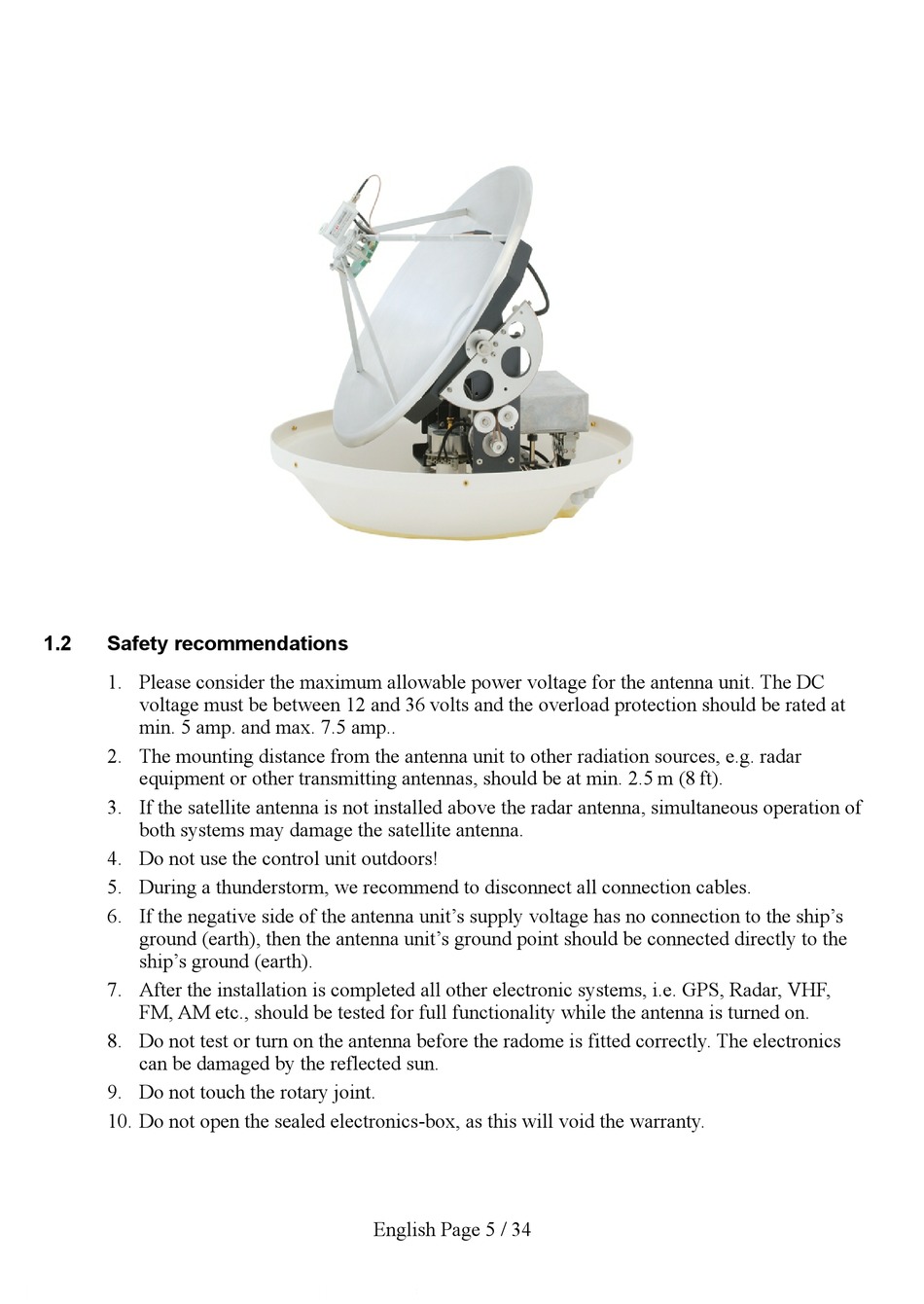

1.2

Safety recommendations

1. Please consider the maximum allowable power voltage for the antenna unit. The DC
voltage must be between 12 and 36 volts and the overload protection should be rated at
min. 5 amp. and max. 7.5 amp..
2. The mounting distance from the antenna unit to other radiation sources, e.g. radar
equipment or other transmitting antennas, should be at min. 2.5 m (8 ft).
3. If the satellite antenna is not installed above the radar antenna, simultaneous operation of
both systems may damage the satellite antenna.
4. Do not use the control unit outdoors!
5. During a thunderstorm, we recommend to disconnect all connection cables.
6. If the negative side of the antenna unit's supply voltage has no connection to the ship's
ground (earth), then the antenna unit's ground point should be connected directly to the
ship's ground (earth).
7. After the installation is completed all other electronic systems, i.e. GPS, Radar, VHF,
FM, AM etc., should be tested for full functionality while the antenna is turned on.
8. Do not test or turn on the antenna before the radome is fitted correctly. The electronics
can be damaged by the reflected sun.
9. Do not touch the rotary joint.
10. Do not open the sealed electronics-box, as this will void the warranty.
English Page 5 / 34
