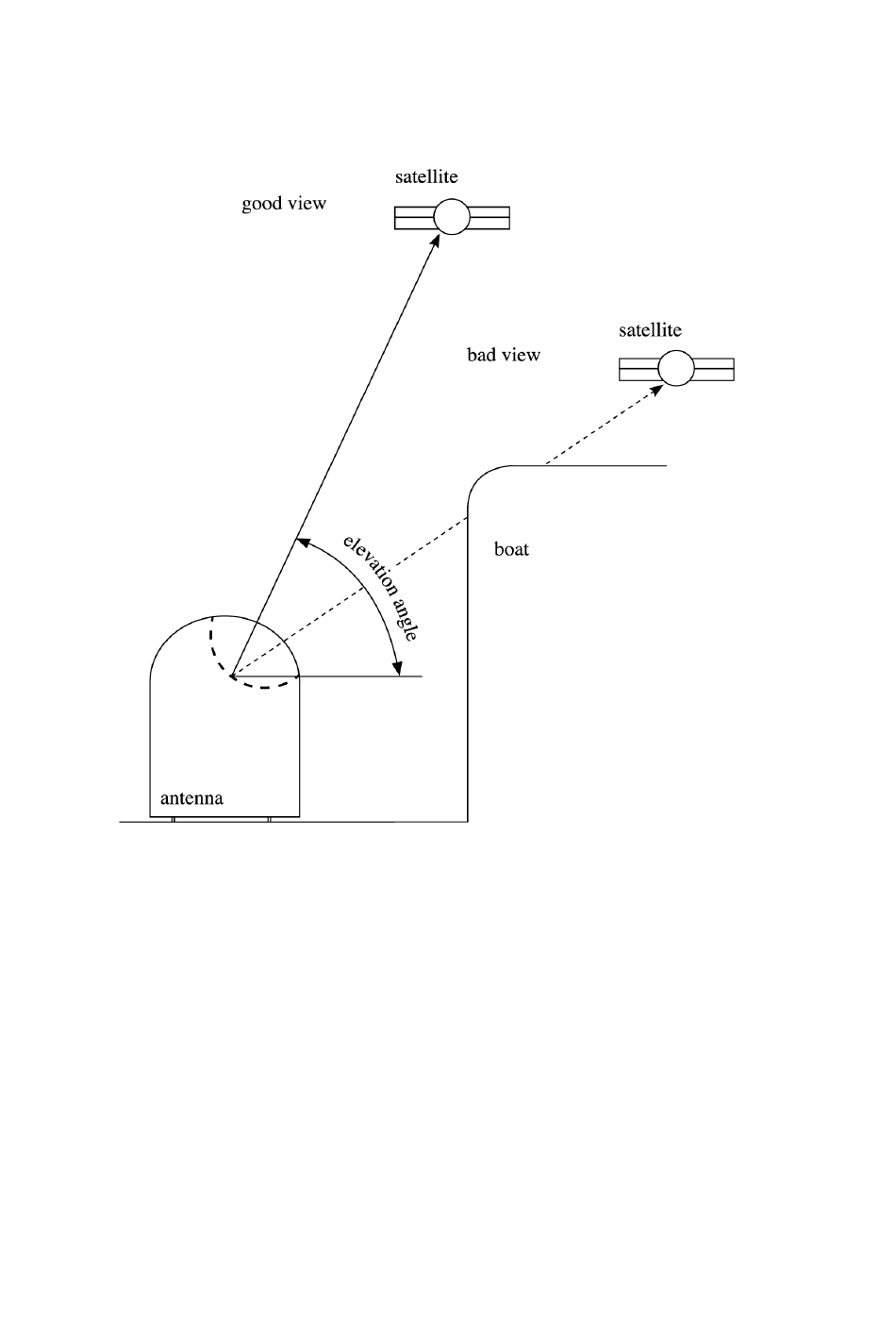

The following illustration shows the importance of a proper location for the antenna
unit.
2.4

Mounting surface

A horizontal, solid and steady, and even surface has to be ensured. The weight of the antenna
unit is 26.5lbs (12kg) or 35.3lbs (16kg) (depending on the model) and must not be
confronted with punctual material stressing.
2.5

Planning the cable paths

Before starting the installation, please check which walls are suitable and if existing
openings can be used for the cables.
All openings have to be sealed!
The control unit should be placed as close as possible to the receiver. The cable length
should not extend 3 m and the cable must be type 1 (see chapter 7.6.1 for data concerning
appropriate cable types).
