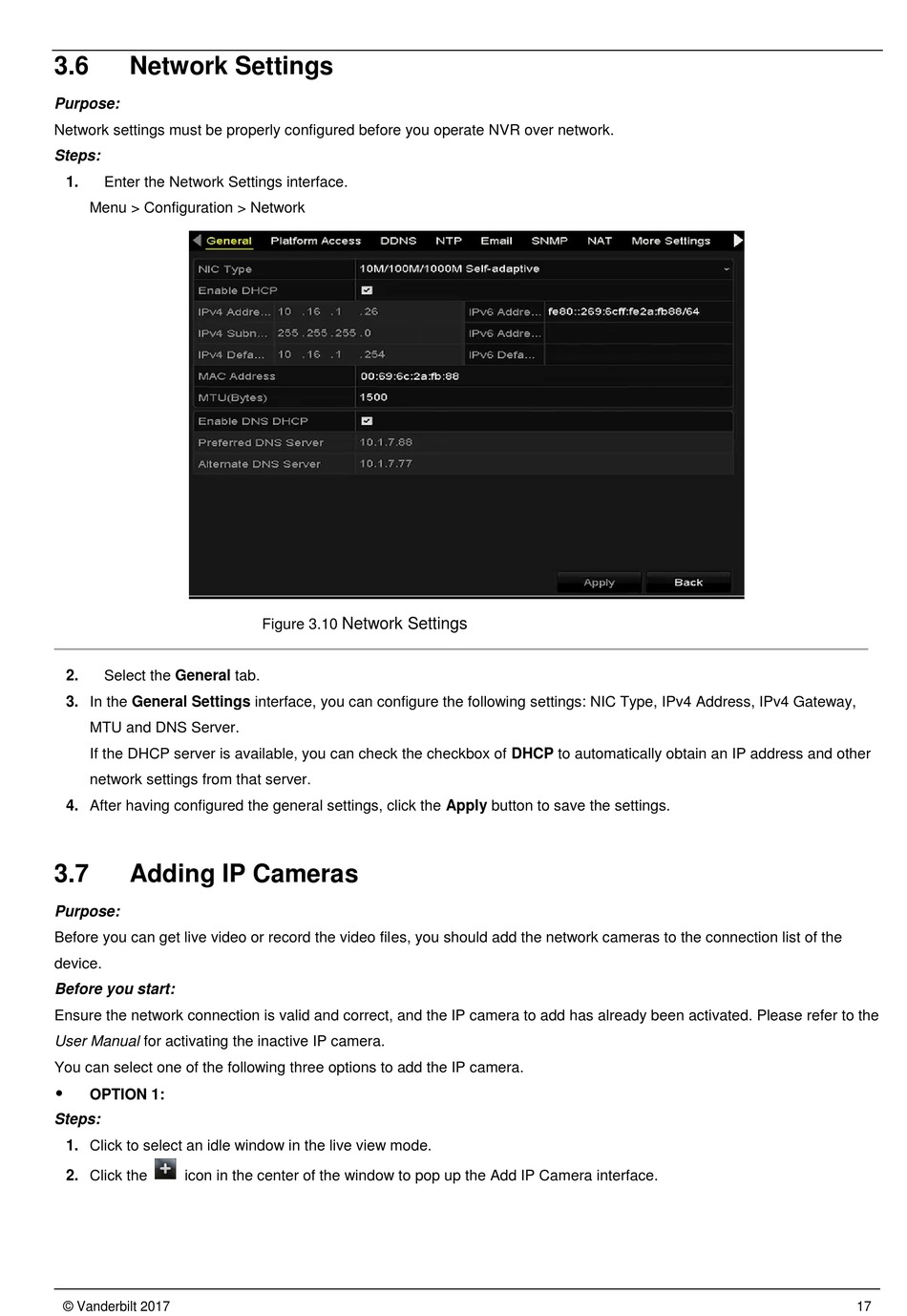

3.6

Network Settings

Purpose:
Network settings must be properly configured before you operate NVR over network.
Steps:
1. Enter the Network Settings interface.
Menu > Configuration > Network
2. Select the General tab.
3. In the General Settings interface, you can configure the following settings: NIC Type, IPv4 Address, IPv4 Gateway,
MTU and DNS Server.
If the DHCP server is available, you can check the checkbox of DHCP to automatically obtain an IP address and other
network settings from that server.
4. After having configured the general settings, click the Apply button to save the settings.
3.7

Adding IP Cameras

Purpose:
Before you can get live video or record the video files, you should add the network cameras to the connection list of the
device.
Before you start:
Ensure the network connection is valid and correct, and the IP camera to add has already been activated. Please refer to the
User Manual for activating the inactive IP camera.
You can select one of the following three options to add the IP camera.

OPTION 1:
Steps:
1. Click to select an idle window in the live view mode.
2. Click the icon in the center of the window to pop up the Add IP Camera interface.
© Vanderbilt 2017
Network Settings
Figure 3.10
