1.2

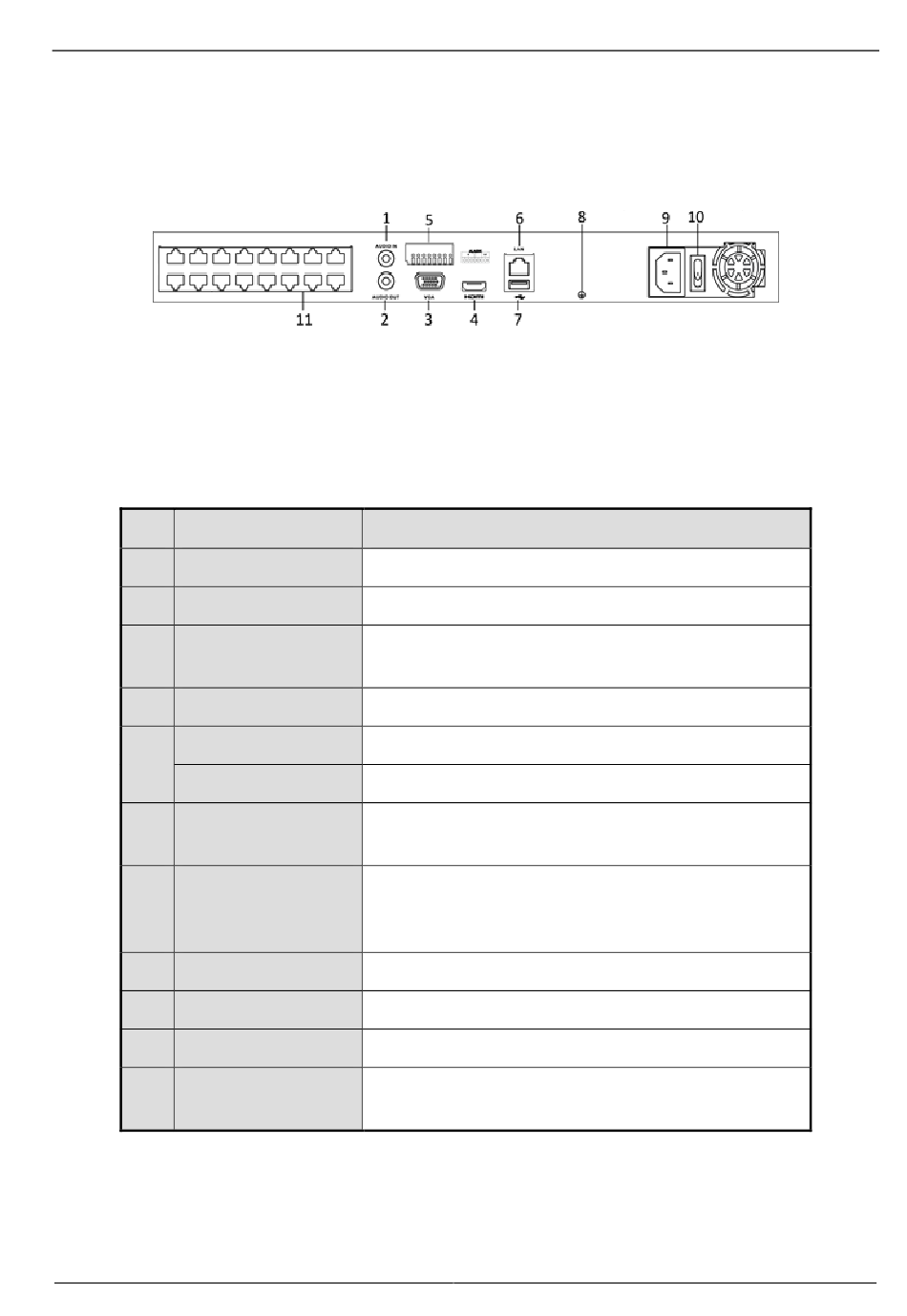

Rear Panel

Eventys EX16 (16ch PoE)
No. Name
1 Audio In
2 Audio Out
3 VGA Interface
4 HDMI Interface
5 ALARM IN
ALARM OUT
6 LAN Network
Interface
7 USB Interface
8 Ground
9 Power Supply
10 Power Switch
11 Network Interfaces
with PoE function
© Vanderbilt 2017
Eventys EX16 NVR
Figure 1.2
Description of Rear Panel Interfaces
Table 1. 2
Description
RCA connector for audio input.
RCA connector for audio output.
DB9 connector for VGA output. Display local video
output and menu.
HDMI video output connector.
Connector for alarm input.
Connector for alarm output.
1 10/100/1000 Mbps self-adaptive Ethernet interface
Universal Serial Bus (USB 3.0) ports for additional
devices such as USB mouse and USB Hard Disk Drive
(HDD).
Ground (needs to be connected when NVR starts up).
100 to 240 VAC.
Switch for turning on/off the device.
16x Network interfaces for the cameras and to
provide power over Ethernet.
8
