Installation and Connections

2.1

NVR Installation

During installation of the NVR:
1. Use brackets for rack mounting.
2. Ensure ample room for audio and video cables.
3. When routing cables, ensure that the bend radius of the cables are no less than five times than its diameter.
4. Connect the alarm cable.
5. Allow at least 2cm (≈0.75-inch) of space between racks mounted devices.
6. Ensure the NVR is grounded.
7. Environmental temperature should be within the range of -10 ºC to 55 ºC, 14ºF to 131ºF.
8. Environmental humidity should be within the range of 10% to 90%.
2.2

Hard Disk Installation

Before you start:
Disconnect the power from the NVR before installing a hard disk drive (HDD). A factory recommended HDD should be used
for this installation.
Up to 2 SATA hard disks can be installed on your Eventys EX16 NVR.
Tools Required: Screwdriver.
1. Remove the cover from the NVR by unfastening the screws on the back and side.
2. Install the HDD in the HDD rack using the provided screws. Fasten the screws on the button to fix
the HDD.
© Vanderbilt 2017

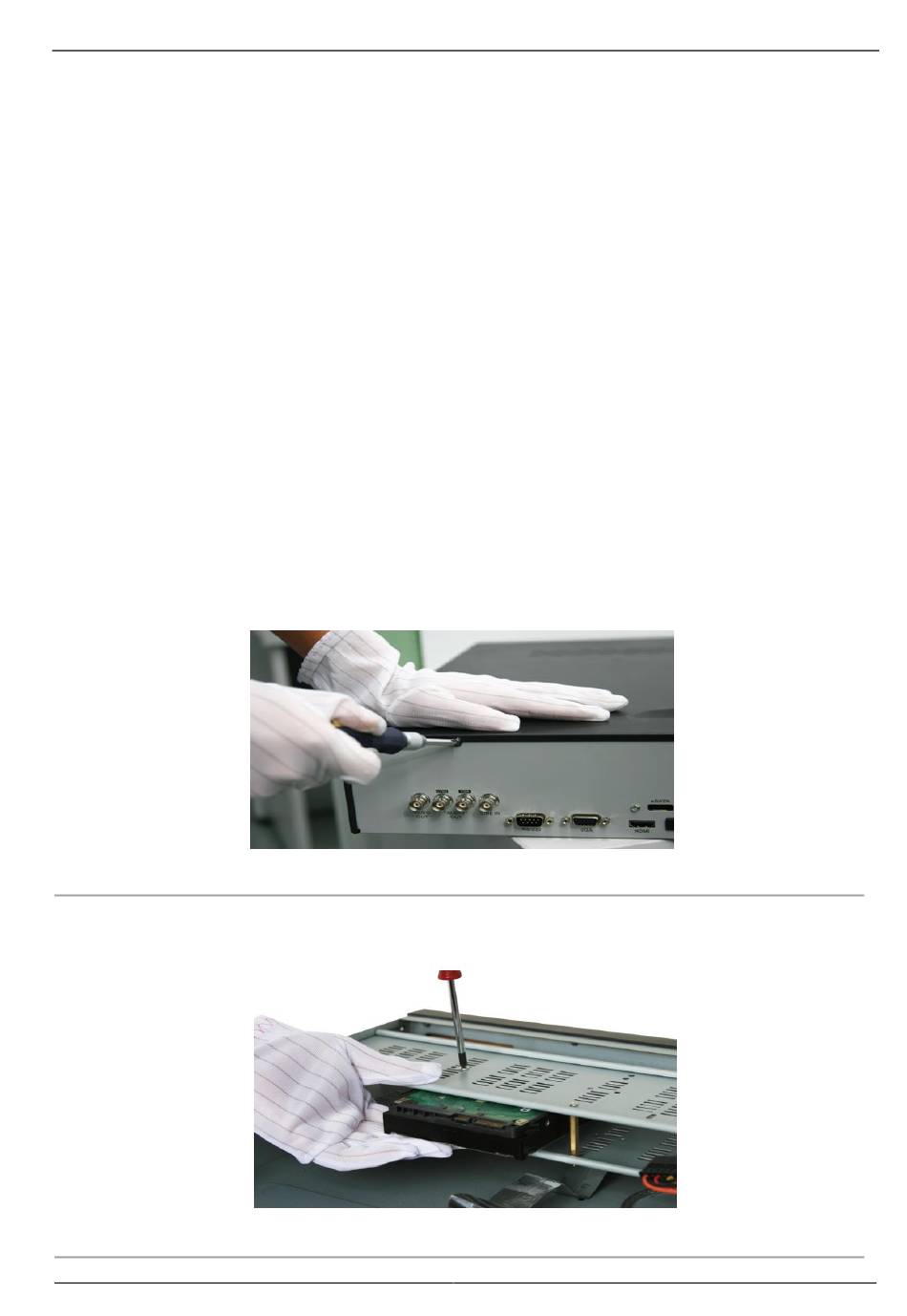

Remove the Cover
Figure 2.1
Install the HDD
Figure 2.2
