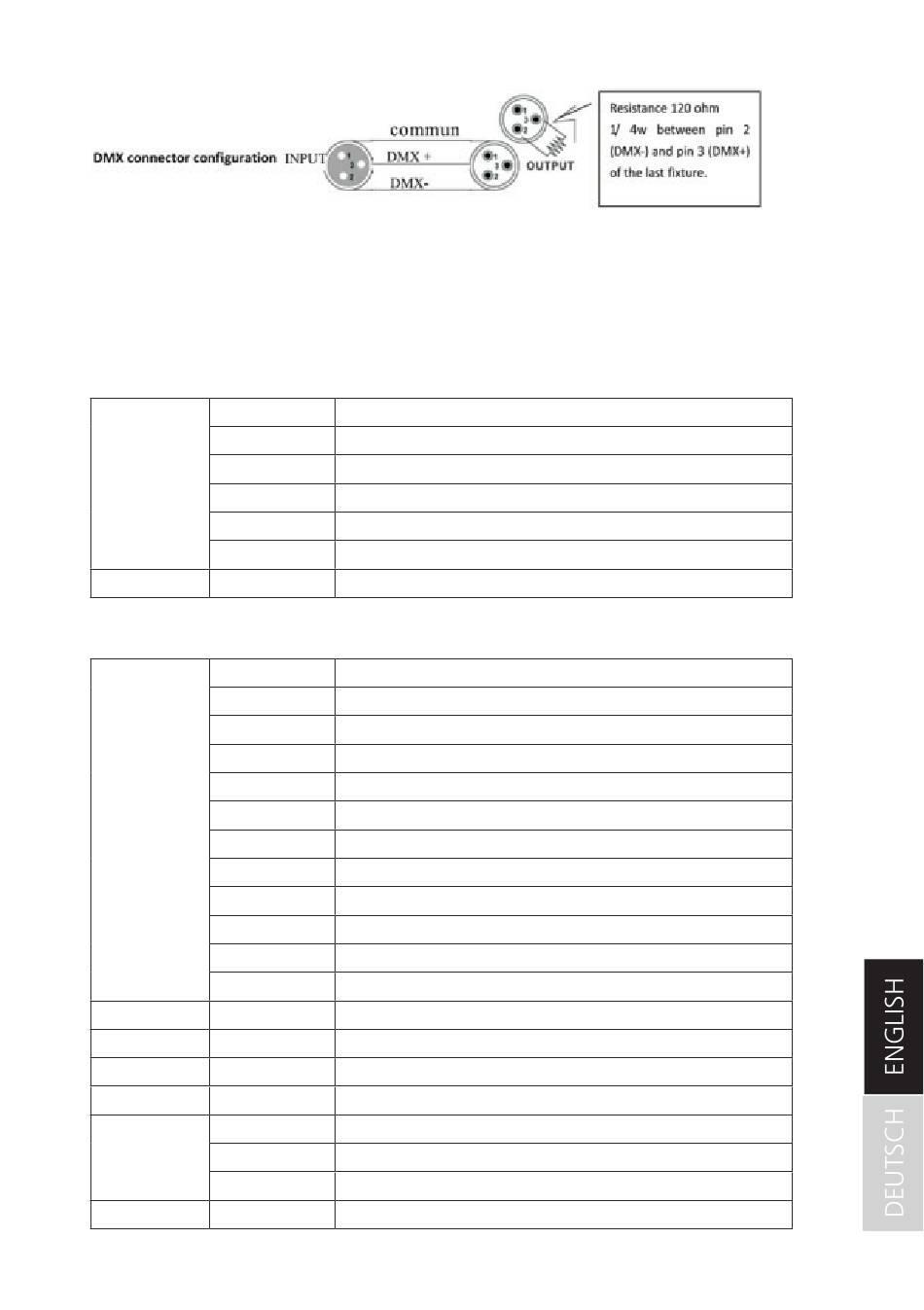

Confi guration of the DMX plugs:
Operating Mode DMX:
Connect the DMX input of your device to the DMX output of your DMX controller, your DMX
software or the DMX output of a device already in your DMX chain. Always use DMX cable
with a 110 Ohm impedance for this connection. Address the device according to your DMX
confi guration. The device has four DMX modes with 2, 6, 14 or 24 channels, which are based
on the following functions:
2 Channel Mode:
CH 1 0-9
10-59
60-109
110-159
160-209
210-255
CH 2 0-255
4 Kanal Modus:
CH 1 0-9
10-19
20-29
30-39
40-49
50-59
60-69
70-79
80-89
90-99
100-109
110-119
120-129
130-139
140-255
CH 2 0- 255
CH 3 0-9
10-249
250-255
CH 4 0-255
No Function
Program 1 (RGBW+SMD)
Program 2 (RGBW+SMD)
Program 3 (RGBW)
Program 4 (SMD)
Sound Modes
Speed Auto-Programs (slow to fast)
No Function
Red
Dark Orange
Orange
Yellow
Green/Yellow
Green
Cyan
Light Blue
Blue
Purple
Dark Purple
Warm White
Cold White
Colour change with varying speed
Strobe LEDs (slow to fast)
No Function
SMD Programs
SMD Full on
SMD Strobe (slow to fast)
