Inhaltszusammenfassung für Lightmaxx Vector Pixel BAR
Seite 1

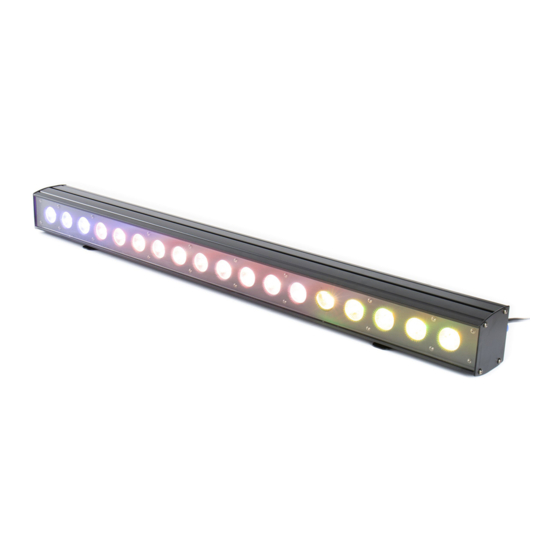

DEUTSCH/ENGLISCH lightmaXX Vector Pixel BAR LIG0016266-000 09/2019 Bedienungsanleitung User’s Manual...
Seite 2
DEUTSCH Wichtige Sicherheitshinweise! Bitte vor Anschluss lesen! GEFAHR! (Elektrischer Schlag durch hohe Spannungen im Gerät) Das Gehäuse darf nicht entfernt werden! Es befinden sich keine zu wartenden Teile im Gerät. Im Geräteinneren befinden sich Bauteile, welche unter hoher elektrischer Spannung stehen. Überprüfen Sie das Gerät vor jeder Nutzung auf Beschädigungen oder das Fehlen von Komponenten, Schutzvorrichtungen oder Gehäuseteilen.
Seite 3
DEUTSCH Hinweis! (Brandgefahr durch Überhitzung) Die maximal zulässige Umgebungstemperatur dieses Gerätes beträgt 40°C. Stellen Sie sicher, dass das Gerät an einem Ort mit ausreichender Belüftung platziert wird, außerhalb der Reichweite von direkten Wärmequellen, offenem Feuer und brennbaren Materialien und Flüssigkeiten. Ein Mindestabstand von 1 m ist hier zwingend erforderlich. Die Lüftungsschlitze des Geräts dürfen nicht abgeklebt, noch darf das Gerät abgedeckt werden.
Seite 4
DEUTSCH Symbole auf Gerät und Verpackung: Das Blitzsymbol warnt den Nutzer vor nicht isolierter Spannung und der Gefahr eines Stromschlages. Das Ausrufezeichensymbol weist den Nutzer auf wichtige Wartungs- sowie Bedienungshinweise in der Bedienungsanleitung hin. Nur für den Innenbereich geeignet Dieses Symbol legt den minimalen Abstand des zu beleuchtenden Objektes fest. Bedienungsanleitung lesen Bitte lesen Sie die Warnhinweise und Empfehlungen sorgfältig durch und befolgen Sie diese, um einen gefahr- und reibungslosen Gebrauch zu gewährleisten.
Bedienungsanleitung Bestimmungsgemäßer Gebrauch: Das Produkt LightmaXX Vector Pixel BAR wurde für den Einsatz als elektronischer LED- Beleuchtungseffekt konzipiert. Das Gerät darf ausschließlich zu diesem Zwecke und im Sinne der Bedienungsanleitung betrieben werden. Andere Verwendungszwecke, sowie der Betrieb unter anderen Betriebsbedingungen sind ausdrücklich nicht bestimmungsgemäß und können zu Sach- oder Personenschäden führen! Für Schäden, die aus einer nicht bestimmungsgemäßen...
DEUTSCH Inbetriebnahme: Sämtliche Verbindungen des Gerätes sollten vor dem Einschalten erfolgen. Benutzen Sie für die Verbindungen ausschließlich hochwertige, möglichst kurze Kabel. Konfiguration des DMX Steckers: Widerstand 120 Ohm // ¼ W zwischen Pin 2 (DMX-) und Pin 3 (DMX+) der letzten Fixierung. Betriebsart DMX: Verbinden Sie den DMX Eingang Ihres Gerätes mit dem DMX Ausgang Ihres DMX-Controllers, Ihrer DMX Software oder dem DMX Ausgang eines sich bereits in Ihrer DMX Kette befindlichen...
DEUTSCH Betriebsart Statisch, Auto oder Sound: Das Gerät beinhaltet automatische Programme die nach festen Schemata ablaufen (Auto) oder über das eingebaute Mikrofon passend zur Musik abgerufen werden (Sound). Die Auswahl des jeweiligen Modus erfolgt über das Menü direkt am Gerät. Wenn Sie mehrere Geräte der gleichen Bauart per DMX verbinden, lassen sich diese über das Mastergerät simultan ansteuern.
DEUTSCH Menü: e Na Men er l e er Men as en un er al splays. M er„Mod “- Tas e a eren e as Men e Na n er l e „Up-“ un „Down-“ Tasten. Eine en spre en e Auswa l w r er „Enter-“Tas e es Die Menüstruktur im Detail: Display...
DEUTSCH Fehlerbehebung: Die nachfolgende Übers en als r e ne s nelle e ler e e un . Sollten Sie sich unsicher sein, kontaktieren Sie den Hersteller, den Händler oder entsprechendes Fachpersonal. Öffnen Sie niemals eigenständig das Gerät! Symptom Fehlerbehebung Überprüfen Sie die Netzverbindung, sowie Ihre Keine Funktion Sicherung.
DEUTSCH Umweltschutz: Die Firma MUSIC STORE professional GmbH bemüht sich stets die Belastung durch Verpackungen auf ein Minimum zu reduzieren. Die Verwendung von umweltfreundlichen und wiederverwertbaren Materialien ist dabei für uns von elementarer Bedeutung. Bitte führen Sie die Verpackungskomponenten nach Gebrauch den entsprechenden Verwertungen zu. Entsorgung von Verpackungen: Sorgen Sie dafür, dass Papierverpackungen, Kunststoffmaterial etc.
Seite 18
DEUTSCH Notizen MS ID: LIG0016266-000 09/2019...
Seite 19
ENGLISH Important safety instructions! Please read before connection! DANGER! (Electrical shock due to high voltages in the device) The housing must not be removed! There are no parts to be maintained in the device. Inside the unit there are components which are under high electrical voltage. Before each use, check the device for damage or the absence of components, protective devices or housing parts.
Seite 20
ENGLISH Hint! (Operating conditions) Due to its structural characteristics, the device is designed for indoor operation (IP20). Never expose the device to rain, moisture or liquids as this may cause damage. Vibrations, dust or sunlight can also cause damage, avoid them! Hint! (Power supply) It is essential that you check that the device voltage matches your local mains voltage.
Seite 21
ENGLISH Symbols on device and packaging: The lightning flash symbol warns the user of uninsulated voltages and the risk of electric shock. The exclamation mark symbol draws the user’s attention to important maintains and operating instructions in the manual. Only suitable for indoor use. This symbol defines the minimum distance of the object to be illuminated.
Intended use: The LightmaXX Vector Pixel BAR was designed for use as an electronic LED lighting effect. The device may only be used for this purpose and in accordance with the operating instructions. Other purposes as well as operation under other operating conditions are expressly not intended and can lead to damage to property or personal injury! No liability is assumed for damage resulting from improper use.
Seite 23
ENGLISH Set up: All connections of the device should be made before switching on. Only use high-quality cables that are as short as possible for the connections. Configuration of the DMX connector: Resistance 120 ohm // ¼ w between pin 2 (DMX-) and pin 3 (DMX+) of the last fixture. Operating mode DMX: Connect the DMX input of your device to the DMX output of your DMX controller, your DMX software or the DMX output of a device already in your DMX line.
ENGLISH 10 Channel-Mode: Channel Value Function Dimmer 000-255 (dark to bright) Strobe-Effect 000-255 (slow to fast) Function 1 000-017 No function 018-022 No function 023-027 colourful running jump change 028-032 colourful running gradual change 033-037 choose colour 038-042 jump change 043-047 gradual change 048-051...
Seite 25
ENGLISH 28 Channel-Mode: Channel Value Function Dimmer 000-255 (dark to bright) Strobe-Effect 000-255 (slow to fast) Function 1 000-017 no function 018-022 choose colour running effect 023-027 colourful running jump change 028-032 colourful running gradual change 033-037 choose colour 038-042 jump change 043-047 gradual change...
Seite 26
ENGLISH RGBWA Dimmer 3 000-255 (dark to bright) RGBWA Dimmer 4 000-255 (dark to bright) RGBWA Dimmer 18 000-255 (dark to bright) 90 Channel-Mode: Channel Value Function Red Dimmer 1 000-255 (dark to bright) Green Dimmer 1 000-255 (dark to bright) Blue Dimmer 1 000-255 (dark to bright)
Seite 27
ENGLISH 100 Channel-Mode: Channel Value Function Dimmer 000-255 (dark to bright) Strobe-Effect 000-255 (slow to fast) Function 1 000-017 no function 018-022 choose colour running effect 023-027 colourful running jump change 028-032 colourful running gradual change 033-037 choose colour 038-042 jump change 043-047 gradual change...
Seite 28
ENGLISH Blue Dimmer 1 000-255 (dark to bright) White Dimmer 1 000-255 (dark to bright) Amber Dimmer 1 000-255 (dark to bright) Red Dimmer 2 000-255 (dark to bright) Green Dimmer 2 000-255 (dark to bright) Blue Dimmer 2 000-255 (dark to bright) …...
ENGLISH Static, Auto or Sound mode: The device contains automatic programs that run according to fixed schemes (Auto) or are recalled via the built-in microphone to match the music (Sound). The selection of the respective mode takes place via the menu directly on the device. If you connect several devices of the same type via DMX, they can be controlled simultaneously via the master device.
ENGLISH Menu: Navigation in the menu is via the four menu buttons below the display. Use the "Mode" button to activate the menu, navigate via the "Up" and "Down" buttons. A corresponding selection is confirmed with the "Enter" key. The menu structure in detail: Display Value Function...
Seite 31
White W235 020-255 change electric current Amber Y200 020-255 change electric current Specifications: Model lightmaXX Vector Pixel BAR Light source 18x 15Watt LEDs (5in1) Colour mixture RGBWA Power consumption 180 Watt Power supply AC 110-240V, 50/60Hz Beam angle 45°...
Seite 32
ENGLISH Troubleshooting: The following overview serves as an aid for quick troubleshooting. If you are unsure, contact the manufacturer, the dealer or the corresponding specialist personnel. Never open the device on your own! Symptom Troubleshooting No function Check the mains connection and the fuse Check the cable connections Check your DMX address setting No reaction in DMX mode...
Seite 33
ENGLISH Envrionmental protection: The company MUSIC STORE professional GmbH always strives to reduce the burden of packaging to a minimum. The use of environmentally friendly and recyclable materials is of fundamental importance to us. Please dispose of and recycle the packaging components after use properly. Disposal of packaging: Ensure that paper packaging, plastic materials, etc.
Seite 34
ENGLISH Notes MS ID: LIG0016266-000 09/2019...
