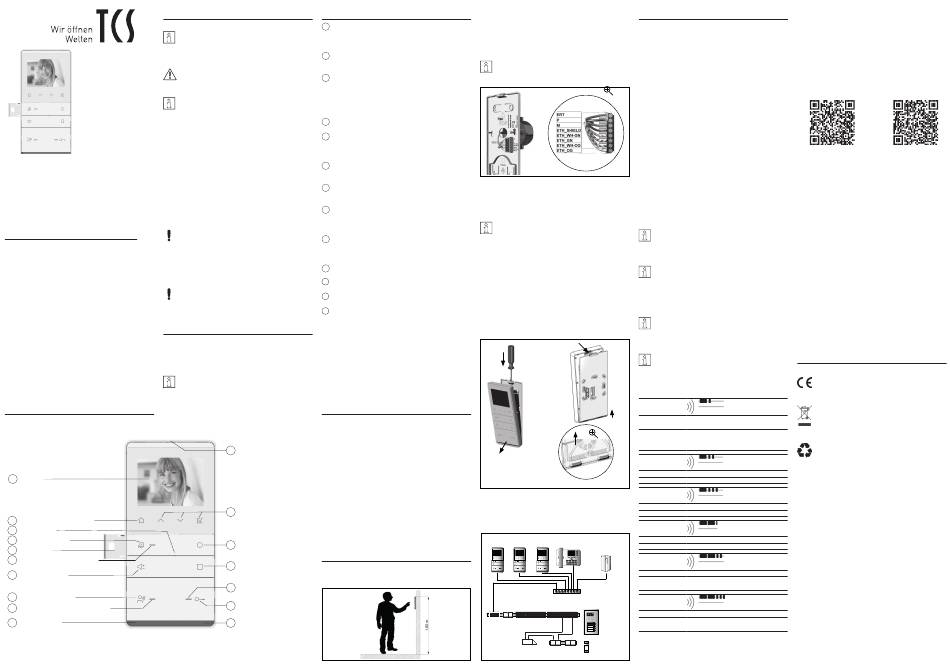

SAFETY INSTRUCTIONS
General safety instructions
Assembly, installation, commissioning and repair of
electronic devices must be carried out by qualified
electricians. Observe the latest regulations and standards
for system installations.
WARNING! Danger due to electrical shock.
Observe the safety regulations according to DIN VDE
0100, when working on main power connections of 230 V.
When installing TCS:BUS systems the general safety
regulations for telecommunication systems according
to VDE 0800 must be observed. Inter alia:
> separated cable routing of high and low voltage lines,
> minimum distance of 10 cm in case of a common cable
routing,
> use of separators between high and low voltage lines within
shared cable ducts,
> use of standard telecommunication lines, e.g. J-Y (St) Y
PRODUCT INFORMATION (BRIEF)
with 0.8 mm diameter,
Series TASTA
> already existing lines (modernisation) with deviating
cross-sections can be used in compliance with the loop
IP indoor station for hands-free talking
resistance.
IVW5411-0145
> Observe the generally accepted standards for structured
wiring of communication systems according to EN50173-1
when installating TCS:VoIP devices. Always use data cables
German / English
with the standard CAT5e at least.
SCOPE OF DELIVERY
CAUTION! Ensure, that the VoIP communication of TCS
devices is not encoded. Protect your network and WLAN
1 x indoor station IVW5411-0145
from unauthorised access.
1 x mounting tray with connection terminal
> Change the password after the commissioning.
1 x product information (brief)
> Be careful when linkin-up the device to the internet. Ask
1 x user manual
your network administrator.
Requirements to protect against lightning
CAUTION! Device damage due to overvoltage.
By suitable lightning protection measures it has to be
ensured that the electric voltage of 32 V DC at each connec-
tion is not to be exceeded.
PRODUCT DESCRIPTION
Intended use
The IVW5411-0145 is an IP audio indoor station for full duplex
VoIP hands-free talking. The device is exclusively suitable for
indoor usage. Type of mounting: surface-mount.
For applications, which differ from the intended use or
goes beyond it, the manufacturer accepts no liability.
DEVICE OVERVIEW
17 Display
16 Homebutton (OSD-Menu)
15 Microphone
14 Call-OFF-button
13 Smart Slot
12 Call display OFF (LED red)
11 Volume button
10 Speech button
9 Indication for calling/speaking
(LED green)
8 Loudspeaker
INDICATION AND OPERATING ELEMENTS
2 > Navigation buttons (arrows): navigate in the menu and
adapt menu points
> Confirmation button (checkmark): confirm a selection,
change-over between different cameras
3 > SIP call 1
> Ring tone selection for SIP address group 1
> URL, DTMF and HTTP(s)
4 > SIP call 2
> Action URL
> DTMF (when a voice connection is established)
> Send HTTP(s) - request
> Press longer than 3 sec: ambient illumination on / off
> Ring tone selection for floor call
5 > OFF: door opener is ready for operation
> ON for 3 sec door is opened
6 > Open the door (action: URL, DTMF)
> Quit speaking: call is terminated after 4 sec
> Quit speaking: after sending a DTMF
> Ring tone selection for unknown SIP calls
7 > Blinks: call indication (if configured)
> OFF: temporarily (manually) or permanently switched off
> ON: temporarily (manually) or permanently switched on
9 > OFF: ready for operation
> ON: call, speaking is active
> Blinks: busy speech channel
10 > Shortly press: call acceptance, activate speaking
> Quit speaking
> In stand-by mode: call from SIP contacts
> Ring tone selection: SIP address group 2
11 > Setting the ring tone volume in 4 steps (when NO voice
connection is established)
> Setting the volume voice output in 4 steps (when a voice
connection IS established)
12 > OFF: call OFF is deactivated
> ON: call OFF is activated
13 > For additional signalling of a door call, can be ordered
as accessory
14 > Shortly press: activate ring tone mute
> Press for 8 sec: initiate / quit the ring tone selection
16 > Shortly press: image activation
> Press again: the main menu is called up
(press the button twice to directly call up the main menu)
TECHNICAL DATA
Supply voltage .................. 18 - 26 V DC (DC power supply),
IEEE802.3af (PoE)
Degree of protection ........ IP30
Ambient temperature ....... - 5 ...+ 40 °C
Latch
1
Housing ............................ plastics ASA
Dimensions (in mm) ........... H 194 x W 94 x D 17 (mounting plate),
T 21 (mounting tray)
Weight .............................. 227 g (incl. mounting plate)
Supported protocols
IPv4, TCP, UDP.
2.0 (UDP), RTP, Syslog, ICMP and
ARP
Audio codecs .................... G.711a/µ, G.722
Audio transmission ......... full duplex, echo cancelation,
2 Navigation button
(OSD-Menu)
.......................................... Automatic Gain Control
Video codecs .................... MJPEG
UP, Down, OK
3 Function button 1
MOUNTING AND INSTALLATION
4 Function button 2
Mounting height
For an optimal operation, install the video indoor station 1.60
m (upper egde of the device) above the ground).
Door release indication
5
(LED blue)
Door release
6
button
7 Ambient illumination
Install the mounting tray
Insert the lines through the cable gland. Connect the wires
to the terminals according to the labelling on the mounting
tray. Fix the mounting tray with suitable screws to the wall.
Observe the installation position of the mounting plate.
It is marked with an arrow and the designation TOP.
Install the mounting plate
Set a flush-mount socket to stow the wires. Connect the wires
according to the labelling on the mounting plate.
Observe the installation position of the mounting plate.
It is marked with an arrow and the designation TOP.
Remove the device
Insert a screw driver with slight pressure into the release
opening (1). Pull off the device to the front at its upper side.
Lift the device out of the adjustment increments (2).
Snap-on the device
Put the device onto both adjustment increments of the mounting
plate (1). Press the device against the latch until it snaps on (2).
2
1
1
2
Remove the device
DHCP, HTTP, SIP
Snap-on the device
Example circuit:
IVW5411
IVW5411
IVW5411
SIP-Phone
SIP-Server
Switch (PoE-supply)
relay output 2
relay output 1
AVN01040
RJ45
+ -
NC
NO
COM
NC
NO
COM
12 30 V DC
Brink
Krohn-Berg
Förster
Wertmann
> 6 Ω
1 5
6 10
NWV1000
8 V AC
230 V / 50 Hz
NWV1000
Door opener
COMMISSIONING
System requirements
For further information on configuration and operation refer
• operating system Windows 7, 8, 8.1 or 10
to the more detailed product information.
• required hard disk space: 10 MB
Therefore scan the folllowing QR code or enter the download
• graphic card with at least 1280x1024 pixel
area on our website:
• Net Framework 4.0
Preparations
• switch (PoE) or router
• a Windows PC with network
• configuration software (not enclosed in the delivery)
Configuration software configo IP
> Download the configuration software directly from the
homepage of the TCS AG.
> Unpack the ZIP file on your hard disk.
> Start the Configo_IP_1.x.exe. You'll be guided through
the installation at the screen.
Establish a network connection
More detailed product
> Install the devices of the system completely.
information
> Check the wires against each other on short-circuit.
> Ensure, that an external voltage source is available or the
the supply via PoE is ensured.
> Connect the IP indoor station via network cable to your
network (PoE switch, router).
> Connect the Windows PC to your network.
> Switch on the voltage supply.
The IP indoor station obtains the network address au-
tomatically, if a DHCP server exists. If this is not the
case, you can set the network address manually via the
configuration software.
After a voltage breakdown the IP indoor station restarts
automatically. Switching off the power supply during a
saving procedure or software update can cause a loss of data
or a technical defect of the device. We are continually impro-
ving our products. We recommend that you visit our homepage
regularly in order to find software updates for your device.
Detailed information on terms of service for IP-enabled
systems you'll find at: http://www.tcsag.de/fileadmin/
user_upload/Servicebedingungen-IP_uk.pdf
Error detection and indication
NOTES
If the IP indoor station recognises an error, the error is
indicated when alls LEDs are flashing. Pressing any
button of the device triggers the output of an error tone. The
Conformity
optical error indication stays active as long as the error has
Declarations of conformity are available for
been corrected.
download www.tcsag.de/en/.
Information on disposal
Error tone
Dispose the device separately from domestic waste
via a collection point for electronic scrap. Ask your
Error causes
button stucks (was pressed longer
county administration for the responsible collection
than 15 s)
point.
Troubleshooting
losen the button at the device or floor
push button, device is in stand-by mode
Dispose the parts of the packaging in collecting
again
tanks for cardboard and paper resp. plastics.
Error tone
Service
Error causes
no ethernet
For detailed information visit our website www.tcsag.de/en/
Troubleshooting
check the connecting cable
Download or scan the QR code.
Error tone
HOTLINE
Fon +49 4194 9881-188,
Error causes
conflict with IP address
Fax +49 4194 9881-189
Troubleshooting
check the settings
E-Mail hotline@tcsag.de
Error tone
SALES
Fon +49 4194 9881-144
Error causes
no DHCP
Fax +49 4194 9881-149
Troubleshooting
check the settings
E-Mail sales@tcsag.de
Error tone
TCS TürControlSysteme AG
Geschwister-Scholl-Straße 7
Error causes
no SIP server
D-39307 Genthin
Troubleshooting
check the connecting cable and the
settings
Fon: +49 3933 8799-10
Error tone
Fax: +49 3933 8799-10
TCS Österreich GmbH
Error causes
no TCS:Server / BVS-IP
Troubleshooting
check the connection cable and
Gewerbepark 21
settings
A-2821 Lanzenkirchen
Printout: 07/2018 | Subject to technical changes.
kPI_IVW5411-0145 1 A
