ASSEMBLING THE SUPPLIED TELESCOPIC POLE ON THE SUBWOOFER

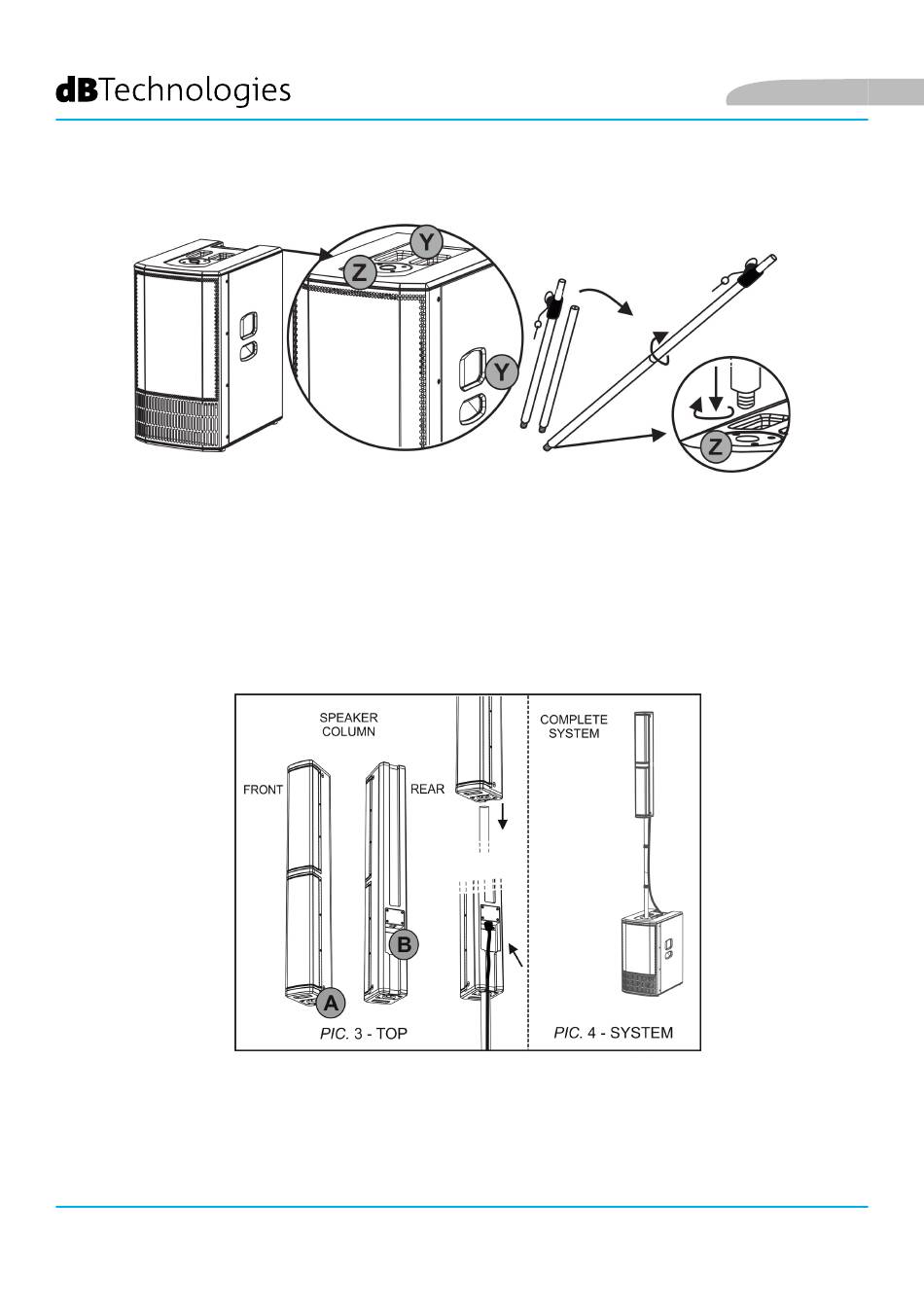

The subwoofer (ES1002 SUB) has three transport handles [Y]: Two on the sides and one at the top.
There is also an M20 threaded hole [Z] in the top for inserting the telescopic pole provided.
To assemble the telescopic pole:
• Screw the top (telescopic) part onto the lower (fixed) part with a clockwise movement
• Screw the resulting pole into the hole [Z] with a clockwise movement
Insert the adjustable pole into the hole [X] in the top. Refer to chapter 2, USAGE CONFIGURATIONS, for further
information and the maximum allowed installation heights.

COMPLETING THE SYSTEM

At the front of the top (ES1002 TOP), there is a 36 mm diameter hole [A] and a connector [B] for the supplied
cable with speak-on connector
• Insert the speak-on connector as shown in the figure
• Insert the top onto the pole previously screwed into place
See chapter 3, FIRST SWITCH-ON, for further information on the cabling.
