ENGLISH
2 Operate
2.1
2.2
2.3
2.1
2.1.1
2.4
2.5
2.6
2.7
18

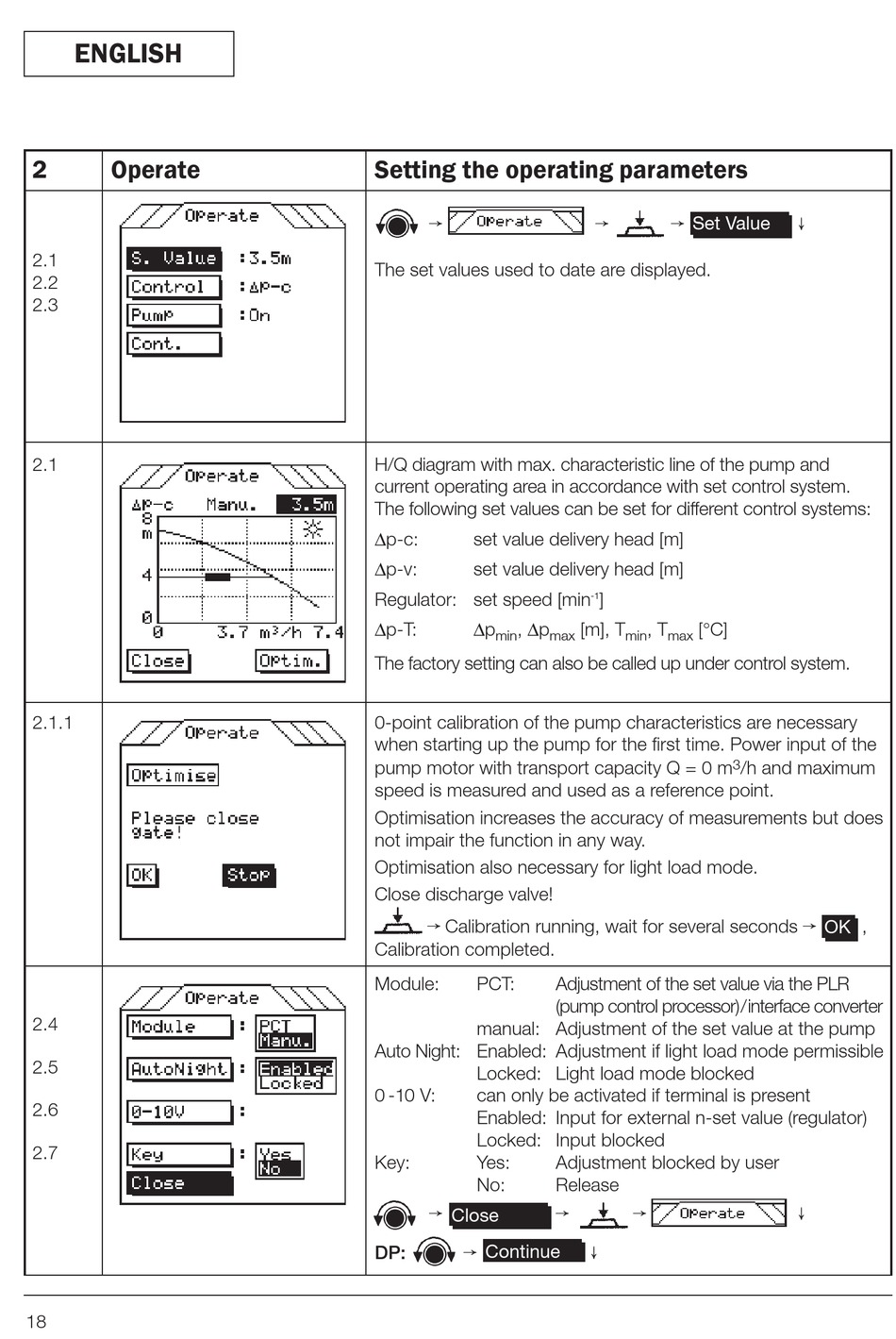

Setting the operating parameters

f
The set values used to date are displayed.
H/Q diagram with max. characteristic line of the pump and
current operating area in accordance with set control system.
The following set values can be set for different control systems:
Δp-c:
set value delivery head [m]
Δp-v:
set value delivery head [m]
Regulator: set speed [min
Δp-T: Δp , Δp
min
The factory setting can also be called up under control system.
0-point calibration of the pump characteristics are necessary
when starting up the pump for the first time. Power input of the
pump motor with transport capacity Q = 0 m
speed is measured and used as a reference point.
Optimisation increases the accuracy of measurements but does
not impair the function in any way.
Optimisation also necessary for light load mode.
Close discharge valve!
f Calibration running, wait for several seconds f
Calibration completed.
Module: PCT:
manual: Adjustment of the set value at the pump
Auto Night: Enabled: Adjustment if light load mode permissible
Locked: Light load mode blocked
0 -10 V: can only be activated if terminal is present
Enabled: Input for external n-set value (regulator)
Locked: Input blocked
Key: Yes:
No:
f
Close
f
Continue
DP:
f f
Set Value
-1 ]
[m], T , T [°C]
max min max
Adjustment of the set value via the PLR
(pump control processor)/interface converter
Adjustment blocked by user
Release
f f
G
G
3
/h and maximum
,
OK
G
