Mounting on a bike
The E-WERK can be fastened to a large
variety of frame tubes in any suitable place
by using rubber bands (3) or cable straps
(4). The E-WERK is splash and rain water
proof!
Mounting with cable straps: Pull one cable
strap each through the opposed slots in the
fixing bracket, guide them around the frame
tube and tighten.
Without mounting: The E-WERK can be carried
in any bag that allows a cable connected
to the hub dynamo to exit. In this case, the
fixing bracket can be removed from the
E-WERK.
Connection to a dynamo/power
source
The E-WERK works with all hub and tire
driven dynamos without electronic voltage
limitation. Connected to dynamos with inte-
grated limitation, the E-WERK can give off a
maximum of 7 V.
Connect E-WERK to the dynamo with the
bared ends of the connection cable (5) (see
the following connection options). Connect
the other end to the input (IN) of E-WERK
(remove cap from plug connection first). By
tightening the screw caps, those connections
can be made splash and rain water proof!
bility For battery powered devices that do not accept external power sources and can neither be
is powered nor charged by the E-WERK or a cache battery, batteries can be removed and charged
ed by the E-WERK using an external charging device. Please contact the device's manufacturer for
to be information regarding powering and charging!
able Further information can be found on our website www.bumm.de
PZ E-WERK RZ_BU_.indd 11
Made in
Germany
Connection options

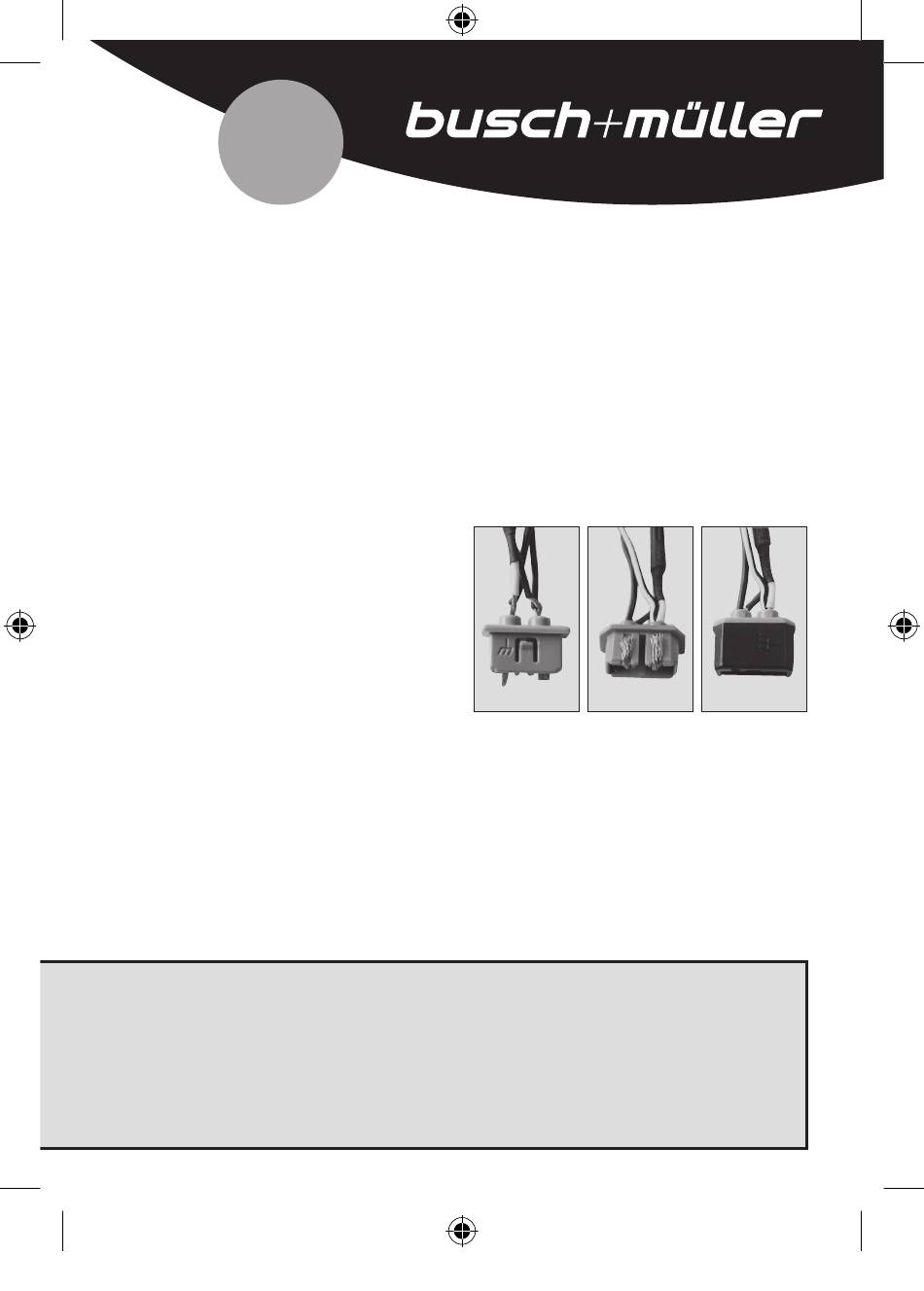

Shimano hub dynamo: Twist together one
bared cable end each of the connection
cable and the headlight cable. Insert twisted
"cable pairs" into each of the apertures
of the the Shimano plug's inner part (Ill. 1).
Please mind the polarity of the headlight,
the E-WERK has no set polarity. Insert cable
ends as far as possible into the casing, bend
them and place them in the lateral grooves
(Ill. 2). Cut overlapping cable strands. Click
on the Shimano plug casing (Ill. 3). Insert the
finished plug into the Shimano hub dynamo.
Ill. 1 Ill. 2 Ill. 3
