DORMA
DIN 18650 (German Industrial Standard)
During the planning of the door system, the manufacturer
(the person installing the system) and the
commissioner/facility operator have to perform an individual
risk assessment (together).
Please refer to our homepage
the provided "risk assessment form" under
further assistance when performing your individual risk
assessment.

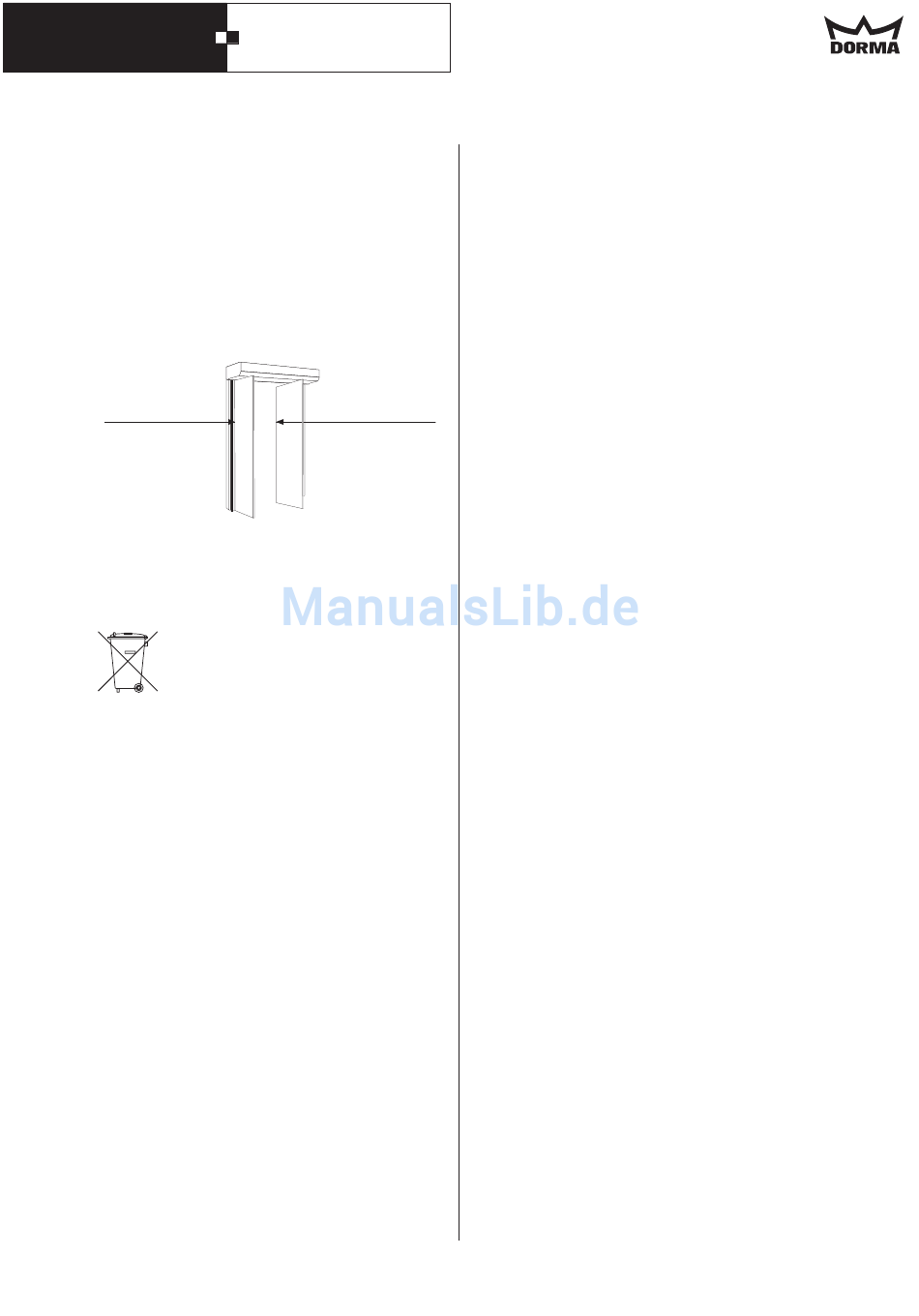

Danger spots at closing edges
Automatic doors might cause hazards by crushing,
shearing, hitting and drawing-in at the different
closing edges.
Secondary
closing edge
Depending on the structural conditions, the prevailing door
version and the available safety equipment, residual risks
(such as crushing and hitting – with limited force) cannot be
excluded.
Recycling and disposal
Both the RST
recyclable raw material.
The RST and the respective accessories must
not be disposed of as domestic waste.
Please ensure that the old appliance and the
respective accessories (if available) are properly
disposed of and abide by the prevailing national
statutory provisions.
Safety during mounting
·
The working area has to be secured against
unauthorised access from other people. Falling items
or tools might cause injuries.
·
The RST has to be secured against water and other
liquids.
·
In any case, the way of mounting and the mounting
equipment, like for example screws and wall plugs,
have to be adequate with regard to the structural
conditions (steel structure, wood, concrete etc.).
·
The installation described herein is only an example.
Structural or local conditions, available tools or other
conditions might suggest a different approach.
·
Following the successful installation of the system, the
settings and the proper function of the
safety equipment have to be checked.
·
Only specially qualified staff may open the power
supply housing.
·
Before you open the cover, ensure that the system is
de-energised (disconnected from all mains) by
switching off the fuse.
RST
www.dorma.com and consider
PRODUCTS for
Main closing edge
and its packing mainly consist of
RST and the
Safety during commissioning
·
The protective earth conductor has to be connected.
·
The safety sensors must be connected.
·
The operator and the door leaves have to be properly
linked.
·
Ensure that the door leaves run smoothly.
·
Separately supplied components such as the program
switch, the EMERGENCY OFF pushbutton and
activators (radar motion detectors, NIGHT-/BANK key
switches) have to be mounted and connected.
Inspection and system approval
Before the first commissioning and depending on
requirements, however, at least once a year, the
be inspected by a properly qualified technician and serviced
if required.
A person trained by DORMA has to perform the inspection
and approve the system with the aid of the inspection book.
The respective results have to be documented in accordance
with DIN 18650-2 and the facility operator has to keep
these documents for at least one year.
We would recommend taking out a maintenance agreement
with DORMA.
Briefing:
Following the adjustment, commissioning and functional
testing of the door system, the operating instructions have
to be handed over to the facility operator and a briefing has
to be made.
Maintenance
The system has to be de-energised (disconnected from
power supply) before performing any kind of maintenance
work.
De-energise the door system by switching off the fuse.
Before the first commissioning and depending on
requirements, however, at least once a year, the door system
has to be inspected by a properly qualified technician and
serviced if required.
Please consider the inspection book (WN 056963-45532)
for further information.
The working area has to be secured against unauthorised
access from other people.
Falling items or tools might cause injuries.
We would recommend taking out a maintenance agreement
with DORMA .
Care
The system has to be de-energised (disconnected from
power supply) before cleaning the system.
De-energise the door system by switching off the fuse.
You may clean the RST with a damp cloth and standard
commercial detergents.
You should not use scouring agents for cleaning purposes as
they might damage the surface finish.
Ensure that no water or other liquids drop onto or into the
operator
Never stick metal objects into the openings of the operator;
otherwise you might sustain an electric shock.
Wear
The following wear parts have to be inspected at regular
intervals during the maintenance of the door system and
must be replaced if required.
Wear parts
Swivel arm (bottom) Floor pivot
Tensioning devices Limit switch
Only use original spare parts.
RST has to
