Notebook-Benutzerhandbuch

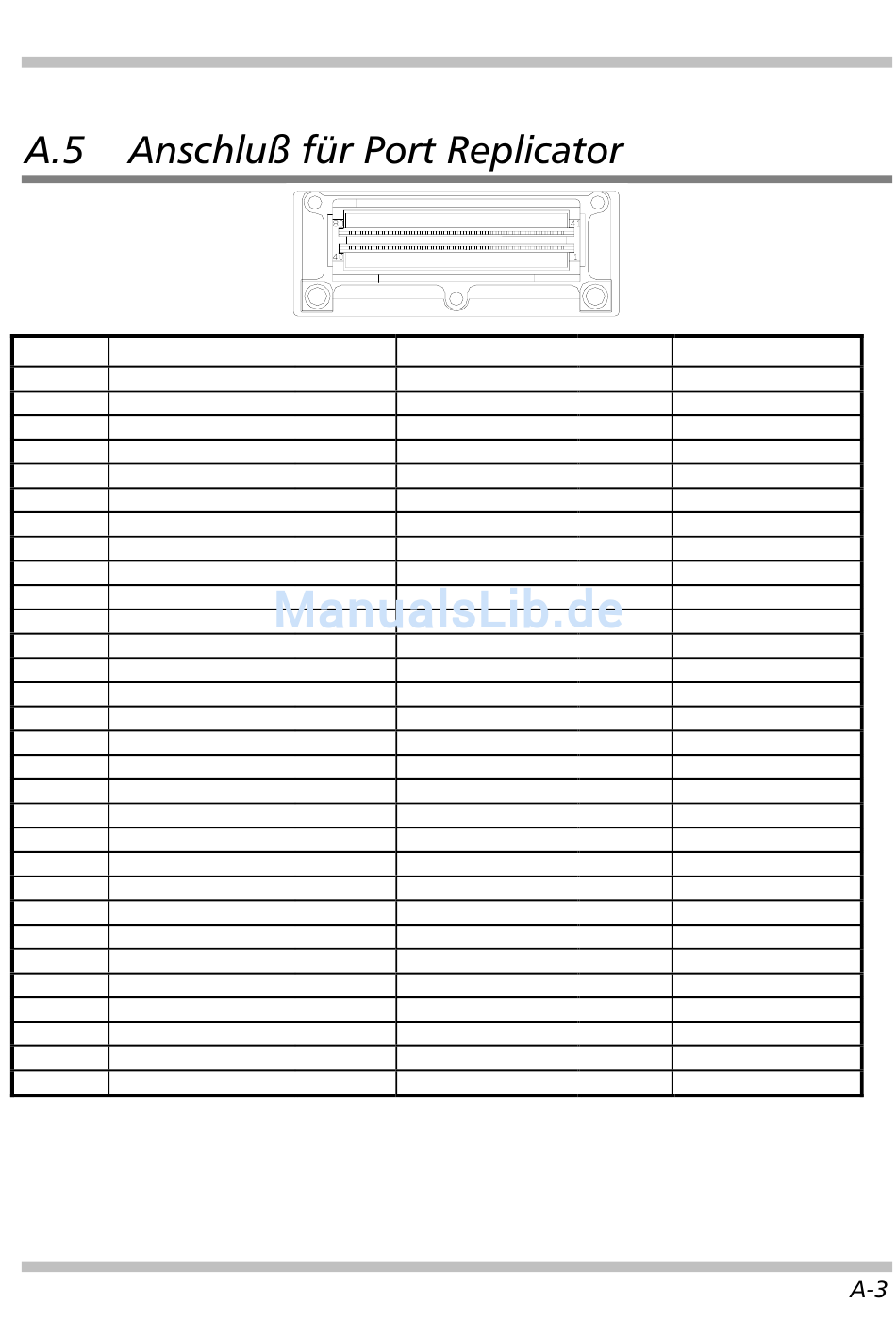

STIFT Belegung
01 D-GREEN
02 D-BLUE
03 DACGND
04 D-VSYNC
05 DACGND
06 D-TVOUT
07 DACGND
08 D-DDCK
09 GND
10 +5VS
11 +5VS
12 D-TXD
13 D-GPO
14 D-GP2
15 D-GP4
16 D-GP6
17 GND
18 D-KBD
19 D-KBC
20 GND
21 D-STB#/WRIT#
22 D-ACK#
23 D-BUSY/WAIT#
24 D-PE
25 D-AFD#/DSB#
26 GND
27 D-PD0
28 D-PD2
29 D-PD4
30 D-PD6
STIFT Belegung
31 GND
32 D-DTRA#
33 D-RIS/D#
34 D-DCDA#
35 D-CTSA#
36 GND
37 D-USBP1+
38 D-USBP1-
39 DOCKIN#
40 OC1#
41 D-RED
42 DACGND
43 DACGND
44 D-HSYNC
45 DACGND
46 DACGND
47 CRTSENSE#
48 D-DDDA
49 GND
50 +5VS
51 +5VS
52 D-RXD
53 D-GP1
54 D-GP3
55 D-GP5
56 D-GP7
57 GND
58 D-MSD
59 D-MSC
60 GND
STIFT Belegung
61 D-SLCT
62 D-SLIN#/ASB#
63 D-INIT#
64 D-ERR#
65 GND
66 GND
67 D-PD1
68 D-PD3
69 D-PD5
70 D-PD7
71 GND
72 D-SOUTA
73 D-RTSA#
74 D-SINA
75 D-DSRA#
76 GND
77 D-USBP0+
78 D-USBP0-
79 OC0#
80 GND
Anhang A
