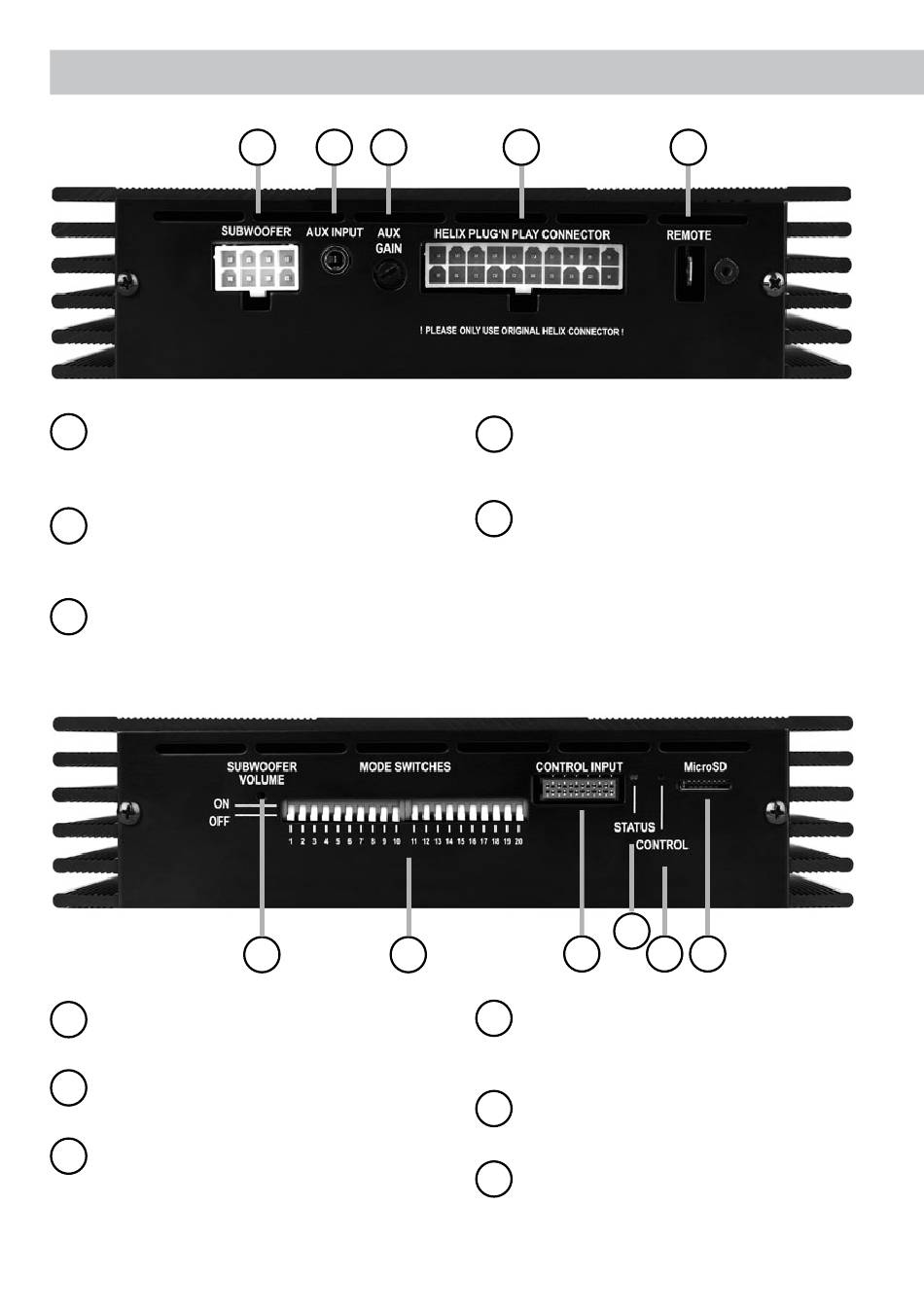

Connectors and control units
1
Subwoofer Output
For connecting a passive Plug & Play
subwoofer
2 AUX Input
3.5 mm jack for connecting e.g. a navigation
system, telephone, iPod, etc.
3
AUX Gain
Level controls to adjust input sensitivity of
the AUX Input
6
Subwoofer Volume
Level control to adjust the subwoofer loudness
7
MODE/DIP Switches
To modify the DSP factory settings
8
Control Input
Multifunctional connector for „USB Interface" &
„Bluetooth Interface"
1 2 3
7
6
4
HELIX Plug & Play Connector
4
Use only the HELIX original Cable to
connect your PP50 DSP!
5
Remote
The remote connector can be used as either
input or output
9
8 10 11
9
Status LED
The LED shows the operation mode
of the DSP
10
Control Pushbutton
To modify or delete setups
11
MicroSD Slot
MicroSD Card reader to copy vehicle specific
setups to the PP50 DSP
