Cembre hydraulic unit
1.1 Battery-operated expanding tool
Observe instruction manual for tool.
; ;
Expanding tool together with additional tools is available in a toolbox.
h
1.2 The Battery- operated Hydraulic Expanding Tool
Observe instruction manual for tool.
; ;
The hydraulic expanding tool together with additional tools is available in a toolbox.
Expanding tool (d26 ... d40)
12
GF Piping Systems
a s
g
JRG Sanipex MT
d
f
a
s
d
f
GV.28

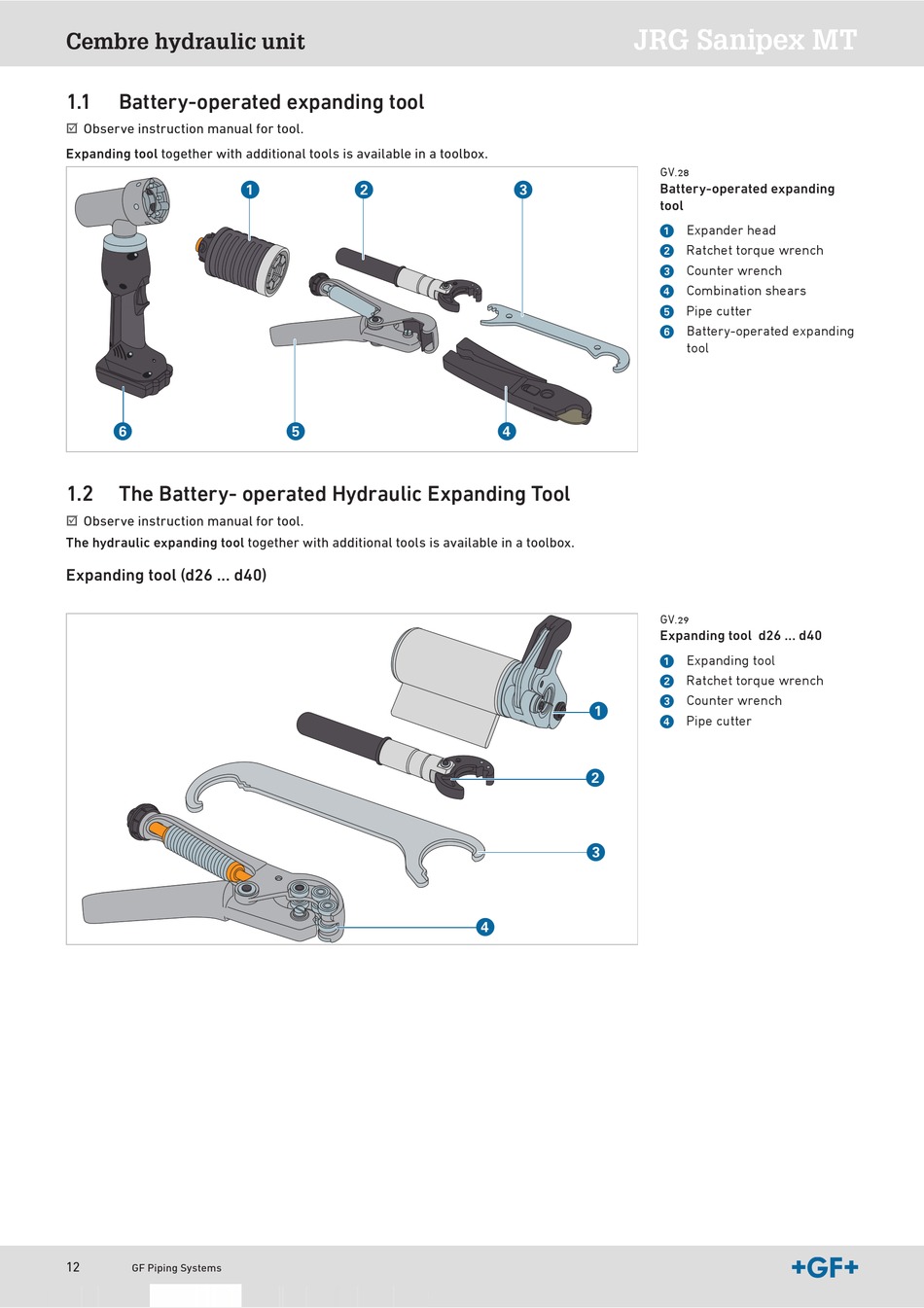

Battery-operated expanding
tool
a Expander head
s Ratchet torque wrench
d Counter wrench
f Combination shears
g Pipe cutter
h Battery­operated expanding
tool
GV.29
Expanding tool d26 ... d40
a Expanding tool
s Ratchet torque wrench
d Counter wrench
f Pipe cutter
