Spectron SPA2200 Bedienungsanleitung Seite 14

REAR PANEL
10 SPEAKER OUTPUT TERMINALS
Output terminal to connect the speakers to the amplifier, either in stereo or
bridged mode
11 FUSE
ATC fuse(s) for protection of the amplifier electronics against overload or
wrong operation
12 POWER INPUT TERMINAL „+ 12 V"
Terminal to connect the amplifier to the positive +12V voltage of the car
battery
13 REMOTE INPUT TERMINAL
Terminal to connect the amplifier to the automatic (remote) turn-on / turn-
off lead of the head unit
14 POWER INPUT TERMINAL „GND"
Terminal to connect the amplifier to the chassis ground or the negative pole
of the vehicle battery

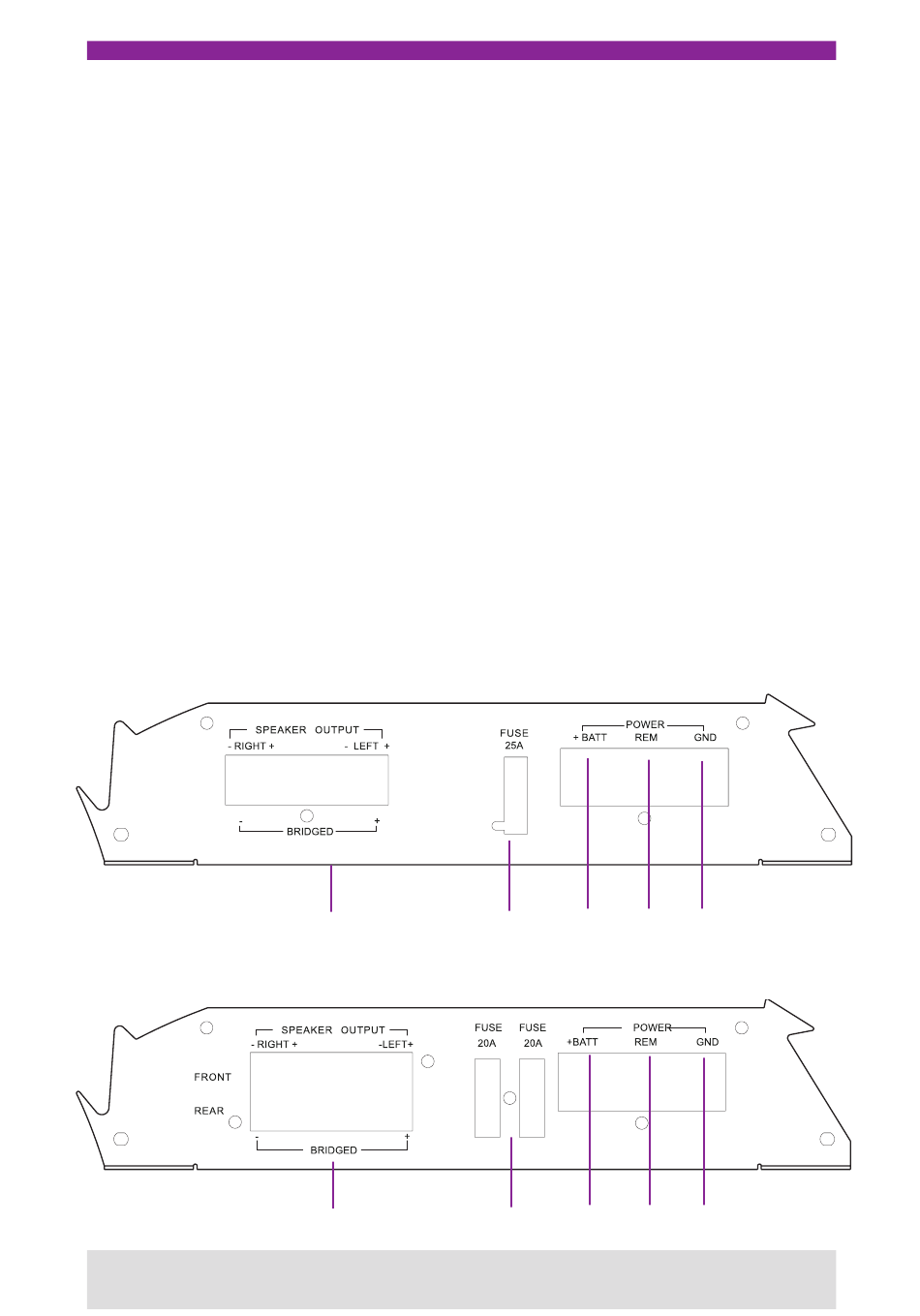

SPA2200Z REAR PANEL
SPA4100Z REAR PANEL
10
10
14
12 13
11
12 13
11
14
14
