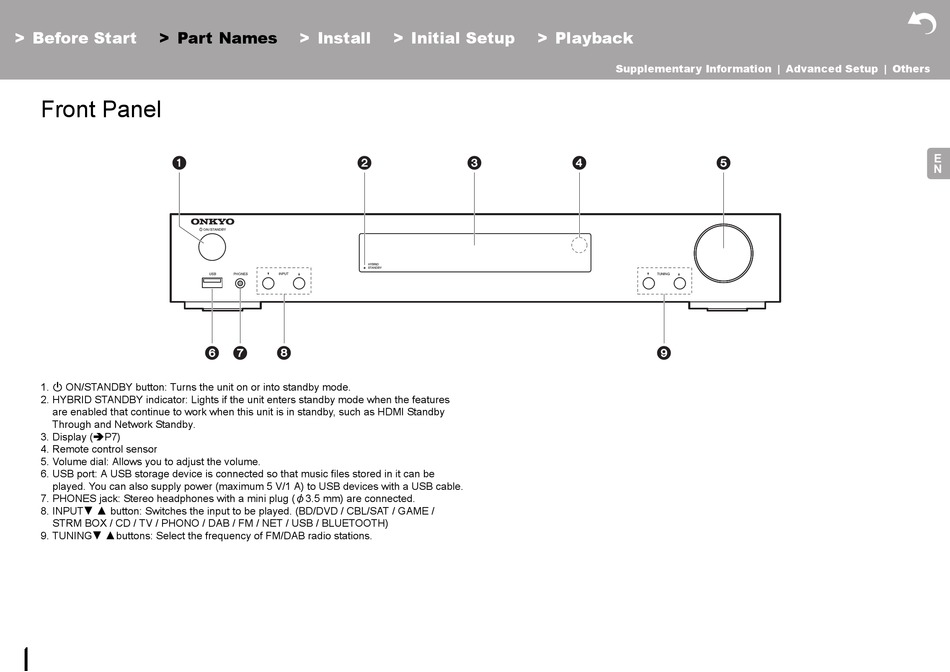

Front Panel

Part Names

1. Í ON/STANDBY button: Turns the unit on or into standby mode.
2. HYBRID STANDBY indicator: Lights if the unit enters standby mode when the features
are enabled that continue to work when this unit is in standby, such as HDMI Standby
Through and Network Standby.
3. Display ( P7)
4. Remote control sensor
5. Volume dial: Allows you to adjust the volume.
6. USB port: A USB storage device is connected so that music files stored in it can be
played. You can also supply power (maximum 5 V/1 A) to USB devices with a USB cable.
7. PHONES jack: Stereo headphones with a mini plug (φ3.5 mm) are connected.
8. INPUT4 3 button: Switches the input to be played. (BD/DVD / CBL/SAT / GAME /
STRM BOX / CD / TV / PHONO / DAB / FM / NET / USB / BLUETOOTH)
9. TUNING4 3buttons: Select the frequency of FM/DAB radio stations.
