Connect The Audio Components; Connecting A Cd Player; Connecting A Turntable - Onkyo LS5200 Bedienungsanleitung

> Before Start > Part Names

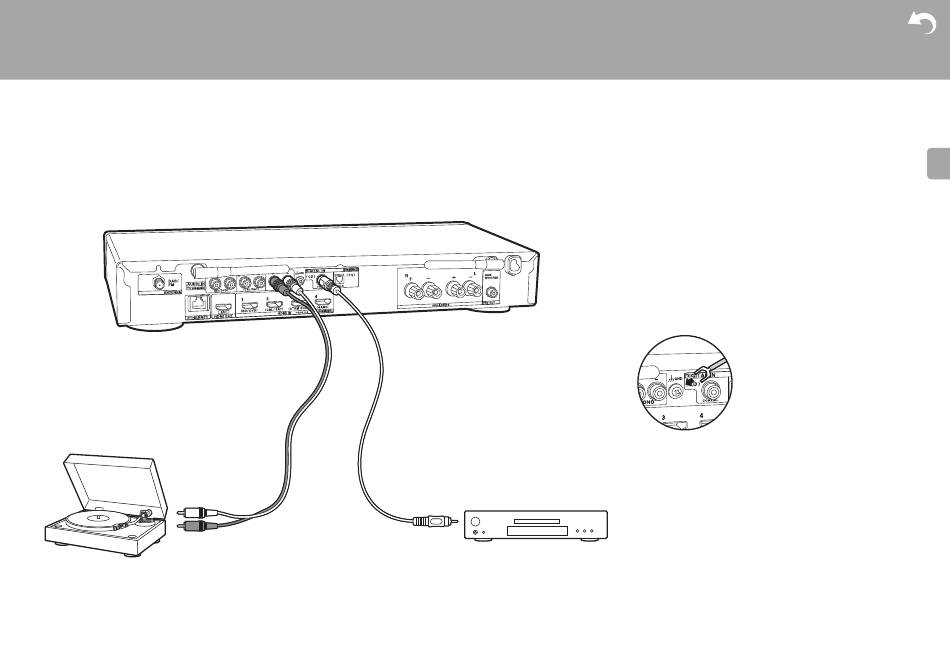

4. Connect the Audio Components

Turntable
a Digital coaxial cable, b Analog audio cable
14
> Install > Initial Setup
a
b
> Playback
Supplementary Information | Advanced Setup | Others

Connecting a CD player

Use a digital coaxial cable to connect a CD player to the
DIGITAL IN COAXIAL jack.

Connecting a turntable

You can also connect a turntable that has an MM-type
cartridge to the PHONO jack.
0 If the turntable has a built-in audio equalizer, connect it to
an AUDIO IN jack other than the PHONO jack. Further, if
the turntable uses an MC type cartridge, install an audio
equalizer compatible with the MC type cartridge between
the unit and the turntable, then connect to any AUDIO IN
jack other than the PHONO jack.
If the turntable has a ground wire, connect it to the GND
terminal of this unit.
CD
E
N
