Operating instructions

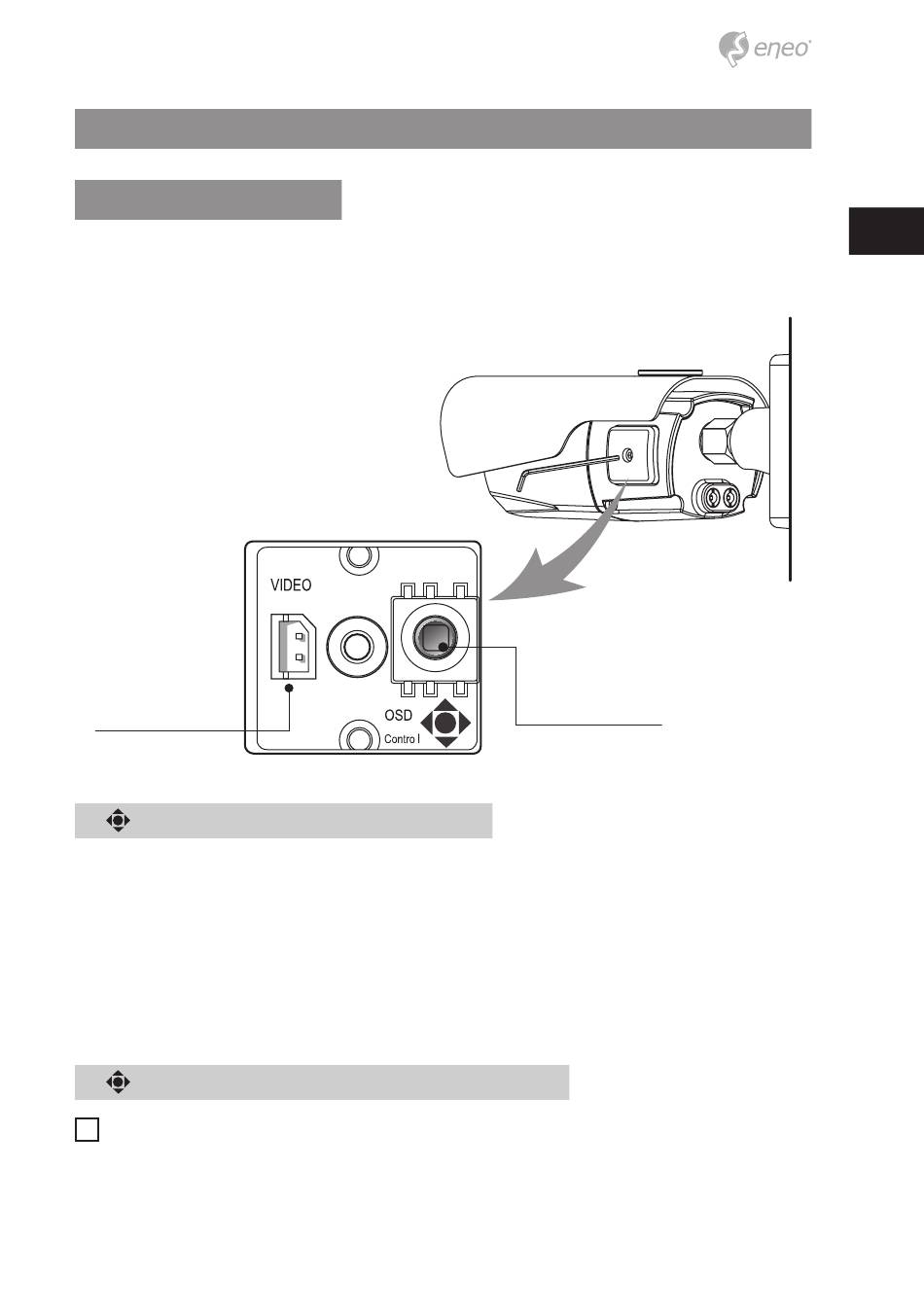

Using OSD controller

Setup menu can be accessed and controlled by OSD control joy stick on the side of cam-
era unit. Five commands are available with the joy stick.
Video Sub-out Connector

Description of the joystick operation

1. SET Key (●) : Access to the menu or enter the setting. To enter the main menu,
press the Set Key down for about 1.5sec
2. UP/DOWN Key (▲/▼) : Choose the desired sub-menu and to move the cursor up or
down.
3. LEFT/RIGHT Key (◄/►) : Set up the value of the selected menu. Used to adjust the
desired menu selection and to move the cursor left or right.
4. '☟'denotes the long press down straightly for about 2 seconds
Description of the ZOOM&FOCUS adjustment
Works only when OSD Menu is inactive. Set to E-ZOOM ON for Digital zoom control.
i
1. ▲ : Zoom In
SUB-OUT
ZOOM
Cover Open
OSD Control Joy Stick
EN
11
