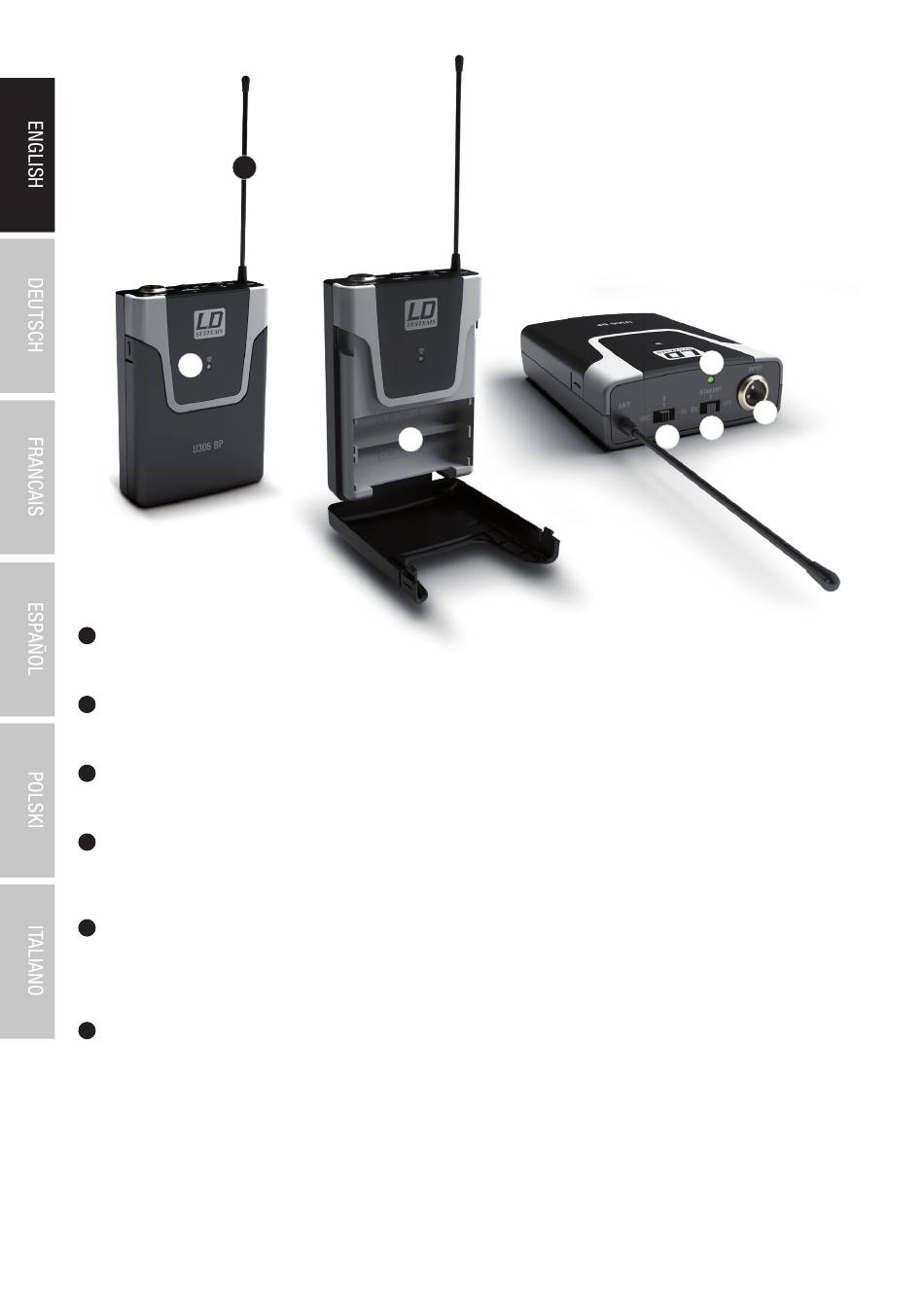

POCKET TRANSMITTER
21
22
ANTENNA
21
Pocket transmitter antenna. For optimum reception, do not cover or kink.
22 IR INTERFACE
Infra-red interface for synchronising the radio channel from receiver and transmitter.
INPUT
23
3-pin mini XLR socket to connect a headset, Lavalier or instrument microphone and guitar cable.
ON / STANDBY / OFF
24
Switch to activate or deactivate the pocket transmitter (ON = transmitter is switched on, OFF = transmitter is switched off). In the STANDBY
position, the transmitter is in operation but the audio signal is muted.
STATUS LED
25
If the charge status of the batteries is sufficient, the LED lights up green when the pocket transmitter is switched on. If the LED lights up red, the
charge status is weak. In this case, replace the batteries (2 x AA/LR6 type, alkaline). During the synchronisation process, the LED flashes green
and amber.
MIC / 0dB / -10dB
26
For setting the input sensitivity. Adjust the sensitivity so that an active signal (speech, vocals, guitar...) causes the amber-coloured level-LED
on the receiver to light up. If the red PEAK LED lights up or flashes, reduce the sensitivity on the 3-position switch MIC/0dB/-10dB to the next
lower value to prevent otherwise unwanted distortion. (Examples: Headset = MIC, guitar with passive pickups = 0dB, guitar with active pickups
= -10dB).
