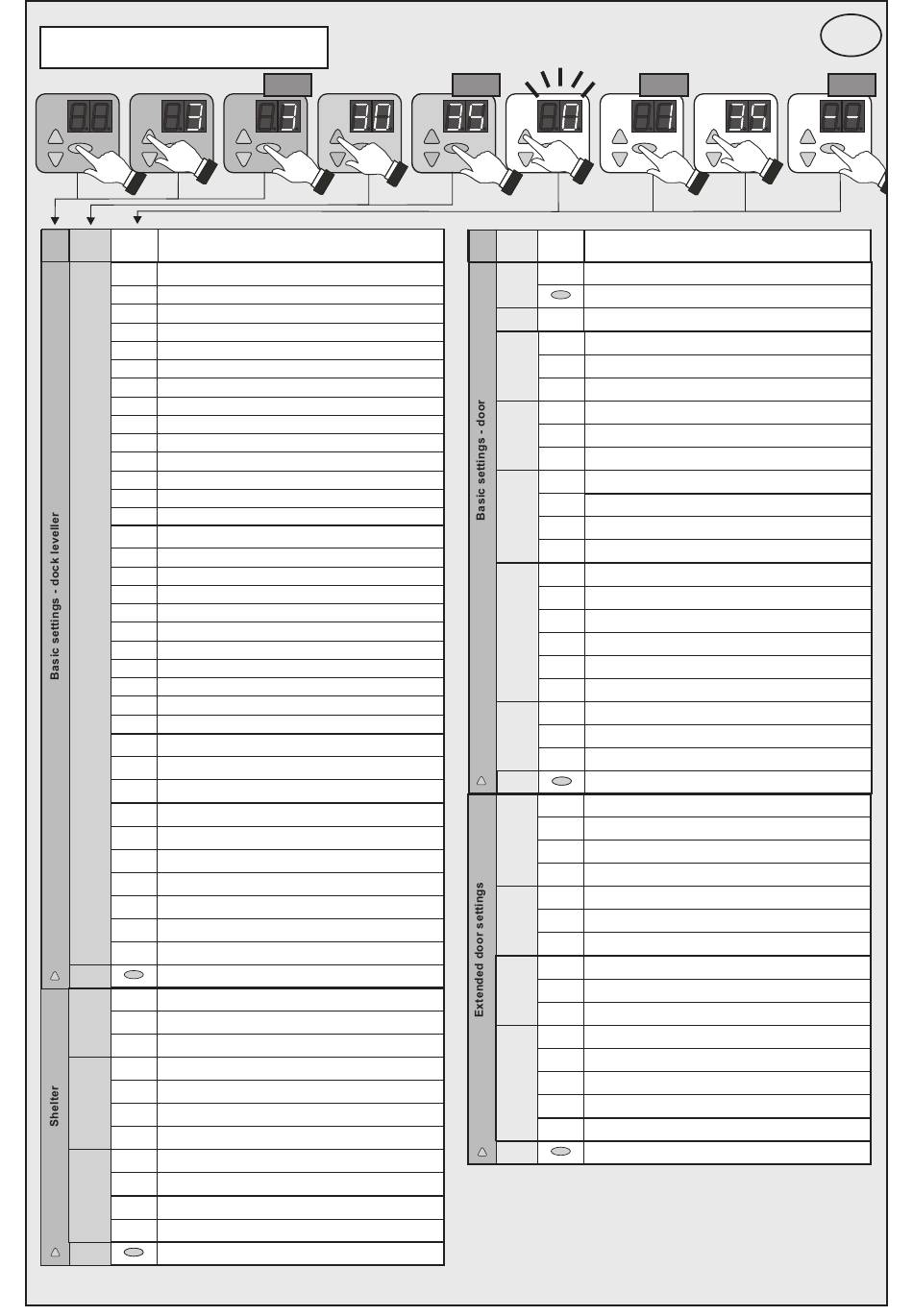

Programming Overview

3-9
Menu-
Menü-
No. Nr.
Entry
Selection
point
Punkt
1 1
Motor pump overcurrent
0
0,0 A
1 2,6 A
2* 3,2 A
3 3,8 A
4 4,4 A
5 5,0 A
10
6 5,6 A
7 6,2 A
8 6,8 A
9 7,4 A
10 8,0 A
11 8,6 A
12 9,2 A
Automatic time
0 3 s
1* 5 s
2 7 s
3 9 s
4 11 s
13
5 13 s
6 15 s
7 20 s
8 25 s
9 30 s
Wheel chock
0* 0* Without wheel chock
15 15
1 1 With wheel chock
Operating options
0 Door - dock leveller mutual interlocking
1 Without door - dock leveller interlocking
17 2 Door - dock leveller interlocking without sensor
3 Dock leveller interlocking when door is not open
4* Only dock leveller operation
5 Only door operation
- -
Exit menu
2 Shelter
0* off
20
1 inflatable shelter
Delay time after AUTO
0 - 4 0* = 0 s ; 1 = 5 s ; 2 = 10 s ; 3 = 15 s ; 4 = 20 s
21
4 - 8 5 = 25 s ; 6 = 30s; 7 =35 s; 8 = 40 s
9 - 12 9 = 45 s ; 10 = 50 s ; 11 = 55 s ; 12 = 60 s
Delay time door open
0 - 4 0* = 0 s ; 1 = 5 s ; 2 = 10 s ; 3 = 15 s ; 4 = 20 s
22
4 - 8 5 = 25 s ; 6 = 30s; 7 =35 s; 8 = 40 s
9 - 12 9 = 45 s ; 10 = 50 s ; 11 = 55 s ; 12 = 60 s
- - - -
Exit menu
Menu
30-
37
Item
1x
Menu-
No.
Entry Selection
point
3 3 Setting the door's top end-of-travel position
30
Change of direction (press for 5 sec.)
31 Setting the door's bottom end-of-travel position
50* Fine adjustment of top end-of-travel position
33 50 - 0 0... 80mm deeper
50 - 99 0... 80mm higher
50* Fine adjustment of bottom end-of-travel position
34
50 - 0 0... 80mm deeper
50 - 99 0... 80mm higher
Selecting the closing edge
0* Optical closing edge OSE
35 35
1 Electrical safety edge 8K2
2 2 Pressure wave edge DW with testing
Selecting the photocell
0* without photocell
36
1 2-wire photocell Ls2
2 4-wire photocell Ls5, Reflection photocell RLK 29
3 Frame fitted photocell LS2
4 FramefittedphotocellLs2,reflectionphotocellRLK29
25* Adjustment pre-limit switch safety edge
37
25 - 0 25 - 0 0... 50 mm deeper
0... 100 mm higher
25 - 99
Exit menu
- -
Selecting the operating modes
4
0 Dead man OPEN / Dead man CLOSE
40
1 Impulse OPEN / Dead man COSE
2* Impulse OPEN / Impulse CLOSE
Response of safety edge
41 0* Full reversing
1 Partial reversing
Correcting the slowing-down path
42 0 0 off
1* 1* on
Level adjustment
0* off
1 activated for 200 cycles
43
2
activated for 1000 cycles
3
active without limitation
- - - -
Exit menu
Enter
* Factory settings
