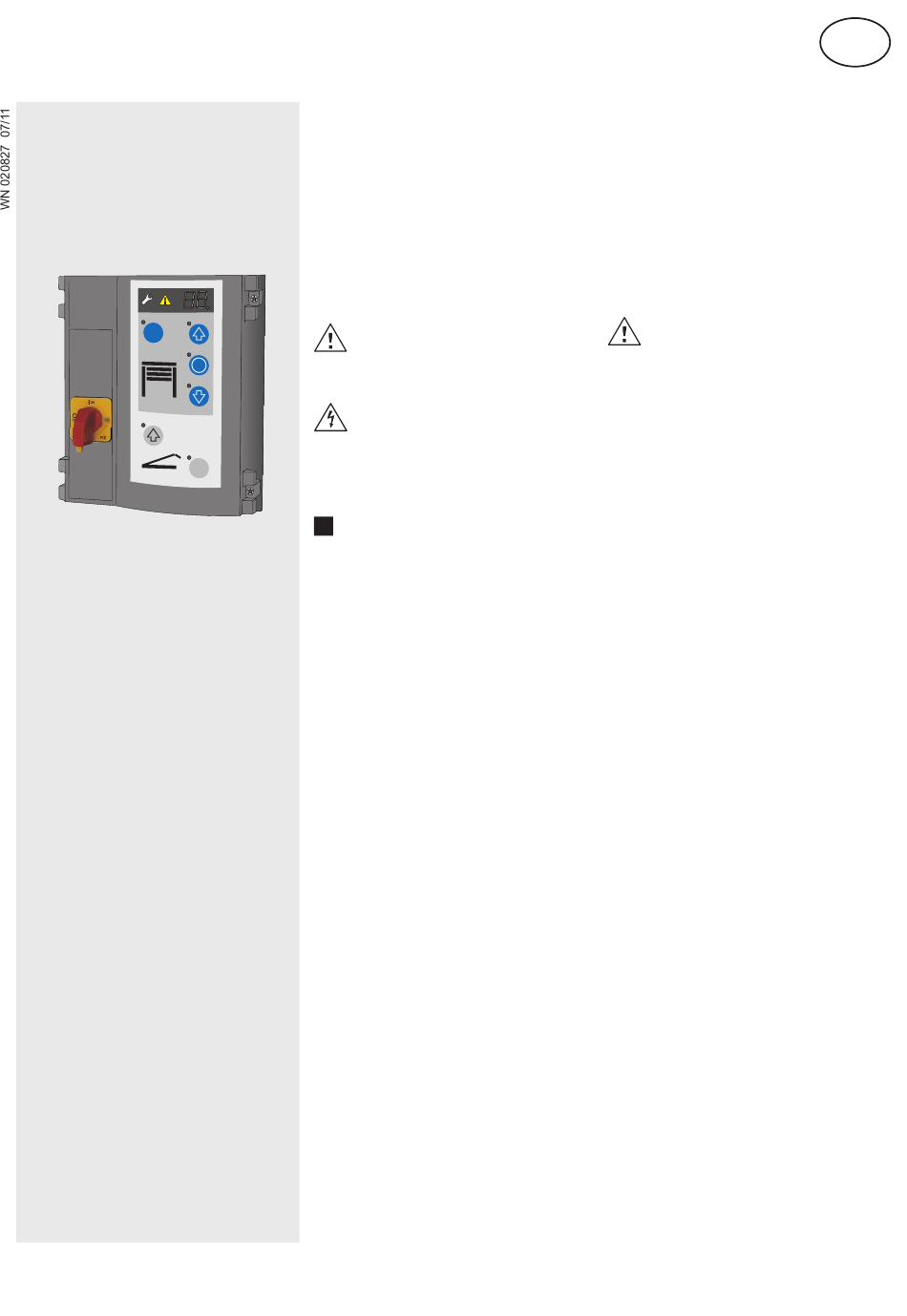

Table of contents

• General Information

- Safety
- Explanation of the symbols
- Working safety
- Hazards that may emanate from the product
- Safety regulations
- Spare parts
- Changes and modifications to the product
- Data plate
- Packaging

- Technical data

• Installation
• Programming overview
• Operating instructions / Description of
functions
• Maintenance / Checks
• Error Diagnosis
• Terms of Guarantee
• Inspection log book
- Inspection and Test Log Book for the Door
System
- Check List of the Door System
- Proof of Inspection and Maintenance of the
Door System
Retain these installation, operating and maintenance instructions for the full duration of the operator's service life!
• General Information
•
Safety
Before commencing any work on the product,
carefully read through the operating instructions
from start to finish, in particular the section entitled
"Safety" and the related safety advice. It is important
for you to have understood what you have read. This
product could prove hazardous if not used properly
as directed or in accordance with the regulations.
Any damage occurring as a result of non-compliance
with these instructions shall render the manufactu-
rer's liability null and void.
•
Explanation of the symbols
WARNING: imminent danger
This symbol indicates that instructions are
being given which, if not observed, could
lead to malfunctions and/or failure of the
operator.
WARNING! Danger by electric current
The works may only be executed by an
electrician.
RETURN
This symbol indicates that instructions are
!
being given which, if not observed, could
lead to serious injury.
0
Reference to text and figure
•
Working safety
By complying with the safety advice and information
provided in these Operating Instructions, injury to
persons and damage to property whilst working on
and with the product can be avoided.
Failure to observe the safety advice and information
provided in these Operating Instructions as well as
the accident prevention and general safety
requirements relevant to the field of application shall
exempt the manufacturer or ist authorized
representatives from all liability and shall render any
damage claims null and void.
•
Hazards that may emanate from the product
The product has been subjected to a risk assess-
ment. The design and execution of the product
based on this corresponds to state-of-the-art
technology.
When used properly as intended, the product is safe
and reliable to operate.
Nevertheless, a residual risk will always remain!
The product runs on a high electrical voltage. Before
commencing any work on electrical systems, please
observe the following:
1. Disconnect from the power supply
2. Safeguard to prevent a power restart
3. Check that the electricity supply is cut off.
• Safety regulations
When performing installation work, initial operation,
maintenance jobs or testing the control unit, take
care to observe the local safety regulations!
The following standards and regulations must
be observed:
European standards
- DIN EN 1398
Dock levellers, safety requirements
- DIN EN 12445
Safety in Use of Power-operated Doors and
Gates - Test Methods
- DIN EN 12453
Safety in Use of Power-operated Doors and
Gates - Requirements
- DIN EN 12978
Protective Devices for Power-operated Doors and
Gates - Requirements and Test Methods
In addition to the above, the normative references
of the standards listed must be observed.
VDE regulations
- DIN EN 418
Safety of Machinery
Emergency-STOP device, functional aspects
Design principles
- DIN EN 60204-1 / VDE 0113-1
Electrical installations with electrical equipment
- DIN EN 60335-1 / VDE 0700-1
Safety of household and similar electrical
appliances
•
Spare parts
Only use genuine spare parts of the manufacturer.
Wrong or faulty spare parts can cause
damage, malfunctions or even a total failure
of the product.
•
Changes and modifications to the product
In order to prevent hazards and ensure optimum
performance, no changes, modifications or
conversions may be made to the product that have
not been expressly approved by the manufacturer.
•
Data plate
The date plate is located under the control panel
cover. Observe the specified power rating.
•
Packaging
Always dispose of the packaging in an environ-
mentlly-friendly manner and in accordance with the
local regulations on disposal.
Technical Data
Dimensions of housing
Height x width x depth 250 x 215 x 120 mm
Mounting vertical
Number of cable lead-throughs 6 (4) x M20,
2 x M16,
2 x M20 V-cutout
Supply voltage 3 x 400 V AC
3 x 230 V AC
Motor power
Door operator max. 1.5 kW
Hydraulic motor max. 1.5 kW
Protection classification IP 65
Operating temperature - 20°C to + 55°C
GB
